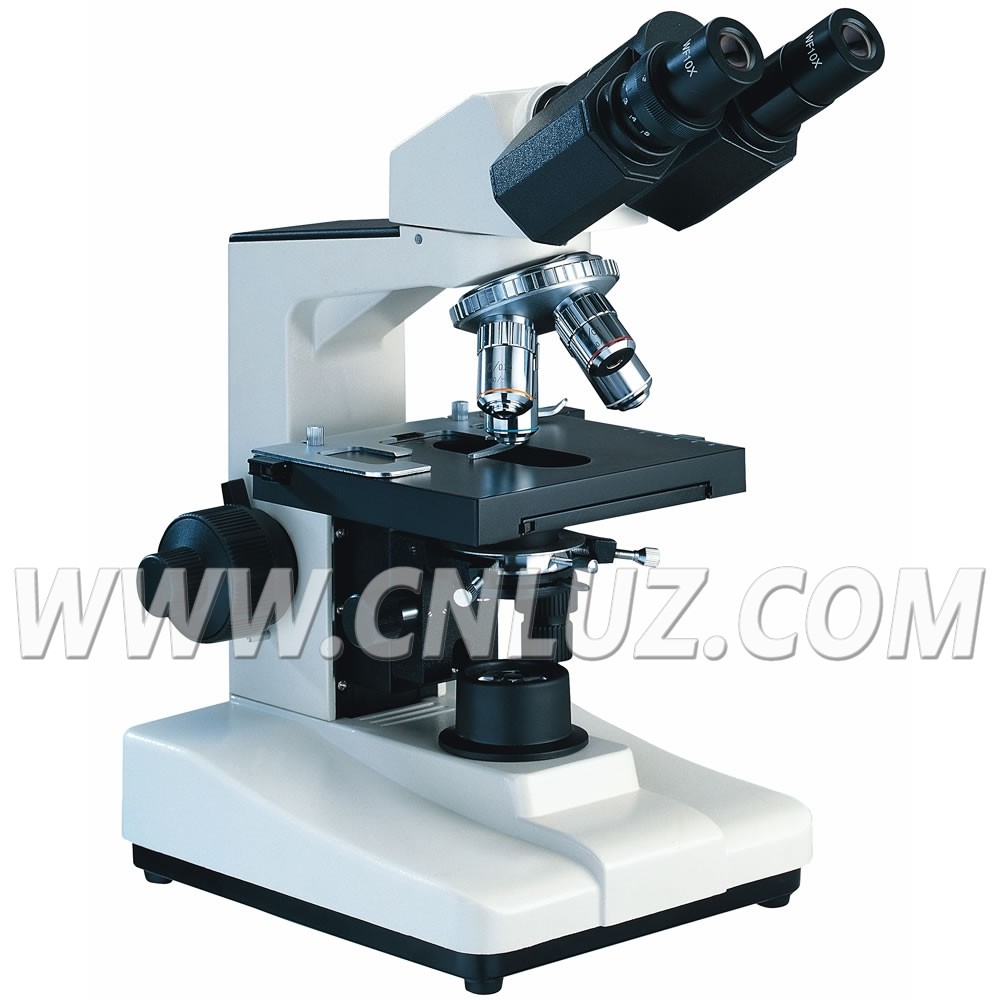

MBS.001009Binocular Compound Labrotoary Biological Microscope
  • /usr/575/images/Products/Y/57517820.jpg
  • /usr/575/Picture/Y/10899.jpg
  • /usr/575/Picture/Y/10900.jpg
  •

MBS.001009 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image and wide view field through optical system. They can be broadly applied in biology medicine, agriculture etc. They are the ideal instruments for medical treatment, teachingand scientific research.

  • With wide field eyepieces and achromatic objectives, the field of view is widely and clear.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • 6 Volt 20 Watt Halogen lamps with brightness control



Specification
MBS.001009
Eyepiece
WF10X(Φ18mm)
Head
Compensation binocular head inclination 30°
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System
Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop
Nosepiece
Quadruple frontward ball bearing inner locating
Stage
Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser
Abbe N.A.1.25 Rack & pinion adjustment
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control

Item

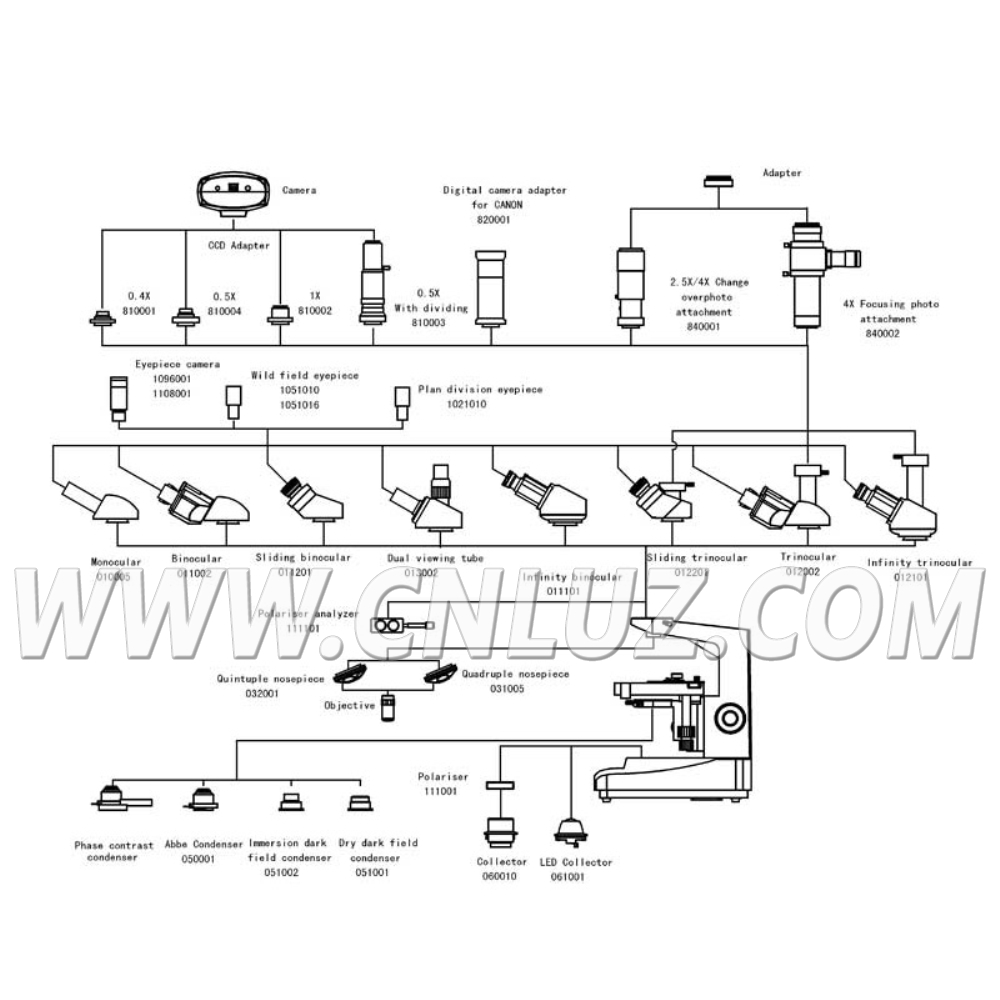

Optional Accessories
Item No.
Eyepiece
Wide field WF16x/11mm
1051016
Divding 10x/18mm, 0.1mm/Div
1021010

Objective



Plan Achromatic 4x/0.10
2040104
Plan Achromatic 5x/0.12
2040105
Plan Achromatic 10x/0.25
2040110
Plan Achromatic 20x/0.40
2040120
Plan Achromatic 40x/0.65(Spring)
2040140
Plan Achromatic 60x/0.85(Spring)
2040160
Plan Achromatic 100x/1.25(Spring, oil)
2040111

Head




Monocular, inclination of 30°
010005
Sliding Binocular, inclination of 45°
011201
Sliding Trinocular, inclination of 45°
012201
Trinocular, inclination of 30°
012002
Dual viewing, inclination of 30°
013002

Nosepiece
Quintuple (Backward ball bearing inner locating)
032001
Filter
Green filter
115002
Yellow filter
115003
Light Source
LED collector, bright and white light
073005
Facility Polarize
Polarizer(360°rotatable)
111001
Analyzer
101002
Condenser
Dark field, dry
051001
Dark field, immersion
051002
Phase Contrast Attachment
Eyepiece
Centering Telescope
110001
Objective
Phase Contrast Plan 10x/0.25 PHP
2420110
Phase Contrast Plan 20x/0.40 PHP(Spring)
2420120
Phase Contrast Plan 40x/0.65 PHP(Spring)
2420140
Phase Contrast Plan100x/1.25 PHP (Spring,oil)
2420111
Condenser
PH-I Turnplate phase contrast condenser
052001
PH-II Turnplate phase contrast condenser
052004
Flashboard phase contrast set
052002
Pull board phase contrast set
052003
Infinity Optical System
Head
Binocular head inclination of 30°
011101
Trinocular head inclination of 30°
012101
Eyepiece
Centering Telescope
110002
Objective
Infinity Plan Achromatic 4x/0.10
2060104
Infinity Plan Achromatic 10x/0.25
2060110
Infinity Plan Achromatic 20x/0.25
2060120
Infinity Plan Achromatic 40x/0.65(Spring)
2060140
Infinity Plan Achromatic 100x/1.2 (Spring, oil)
2060111
Infinity Phase Contrast Plan 10x/0.25 PHP
2470110
Infinity Phase Contrast Plan 20x/0.40 PHP (Spring)
2470120
Infinity Phase Contrast Plan 40x/0.65 PHP (Spring)
2470140
Infinity Phase Contrast Plan 100x/1.25 PHP (Spring, oil)
2470111
CCD adapter
0.4X
810001
0.5X
810004
0.5X with dividing 0.1mm/Div
810003
1X
810002
Camera
DV-1,With USB & video output
800001
DV-2,With USB output
800003
DV-3,With video output
800005
Photography,USB Output
1096001
Photography,VIDEO Output
1108001
Adapter
Digital Camera
CANON Digital camera adapter (A610,A620,A630,A640)
820001
Photograph
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840002
PK Adapter
840004
For LED Lighsource
Input:230V 50/60HZ Output:9V 500mA
101001
Input:110V 50/60HZ Output:9V 500mA
101002
