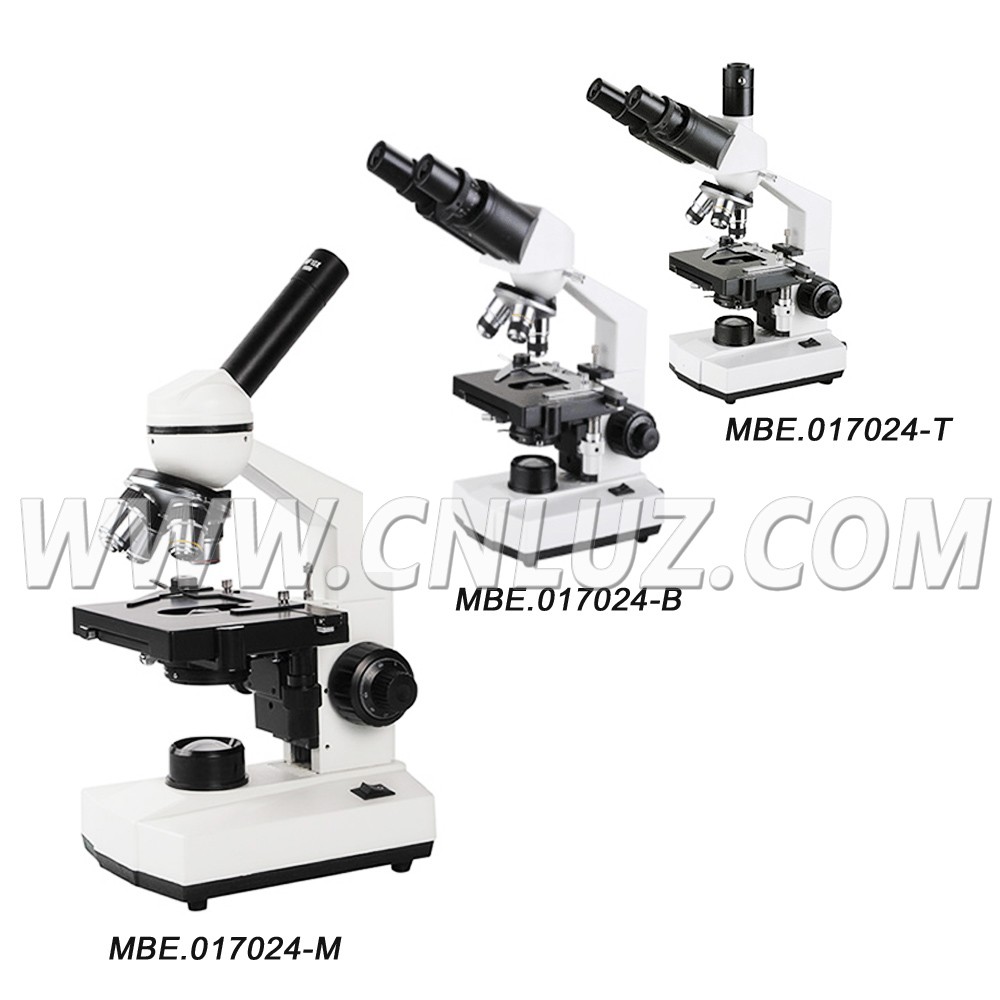

MBE.017024Monocular/Binocular/Trinocular Elementary Microscope, 40X!~1000X
  • /usr/575/images/Products/Y/57519641.jpg
  • /usr/575/Picture/Y/11624.jpg
  • /usr/575/Picture/Y/11625.jpg
  • /usr/575/Picture/Y/11626.jpg
  • Excellent performance students microscope
  • Monocular, binocular, trinocular models for selection
  • Magnification:40X~1000X
Specification
MBE.017024-M
MBE.017024-B
MBE.017024-T
Head
Monocular Head, 45° Inclined, 360° Rotatable
Binocular Head, 30° Inclined, 360° Rotatable
Trinocular Head, 30° Inclined, 360° Rotatable
Eyepiece WF10x

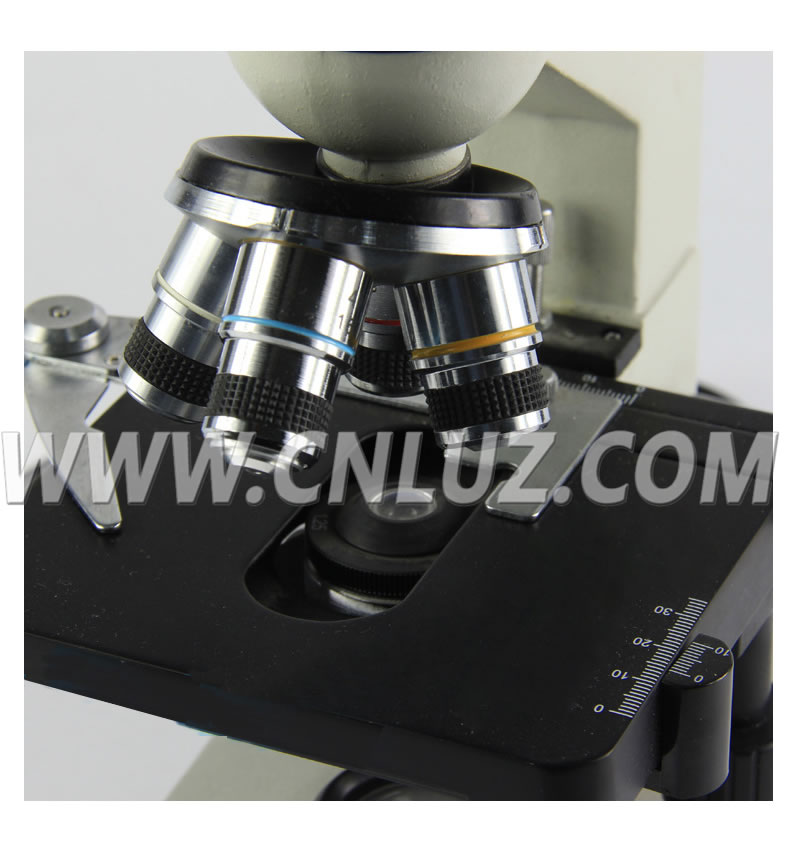

Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x(S)
Achromatic Objective 100x(S,oil)
Nosepiece
Quadruple Nosepiece, Ball Bearing Inner Locating
Focusing

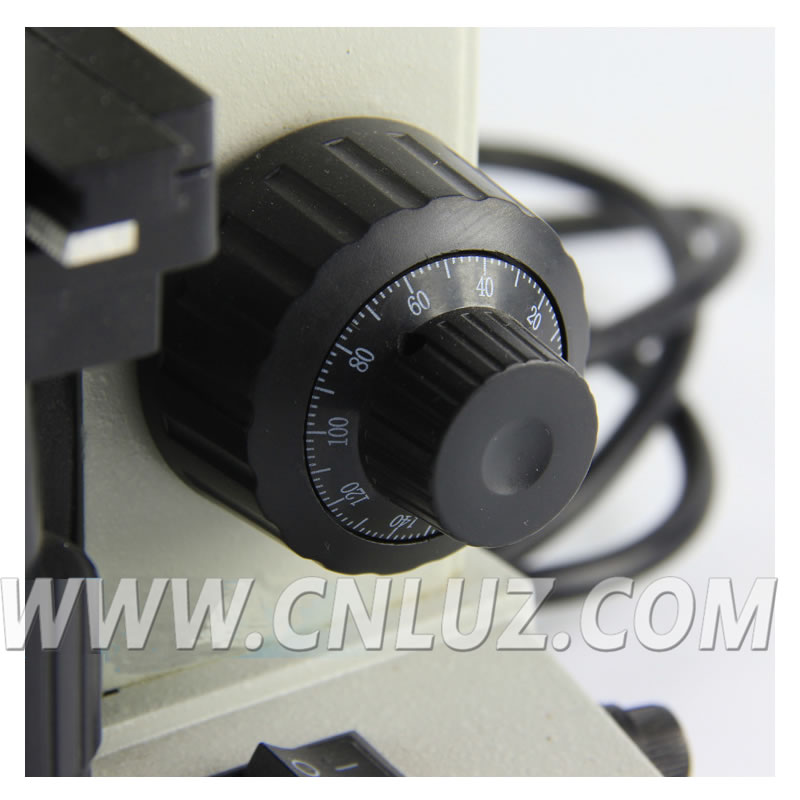

Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm
Stage
Double Layer Mechanical Stage 115*125mm
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Illumination
Halogen Lamp or LED Optional, Brightness Adjustable

Item
Optional Accessories
Eyepiece
WF16x
