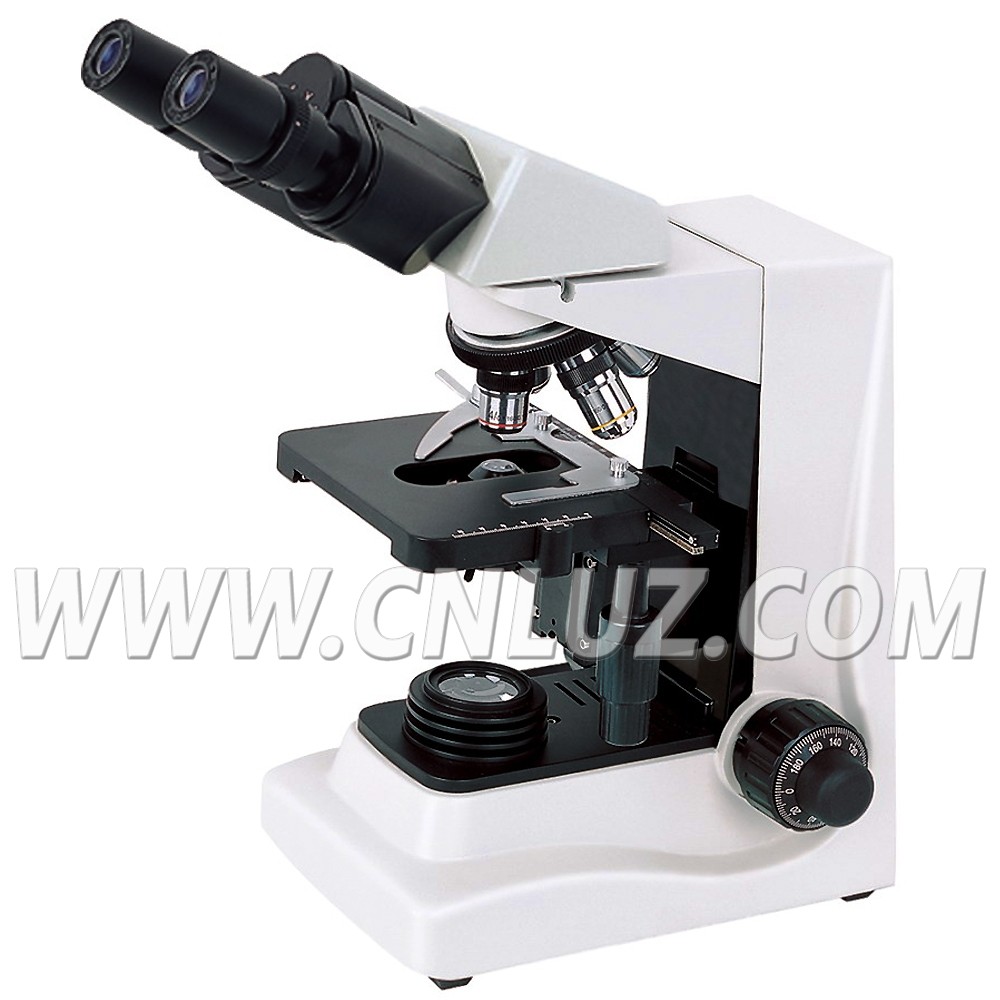

MBL.003034Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57517709.jpg
  •
  •
  •

High transmission optical system, combined base and arm design and wide range of accessories make it an ideal instrument for biology, bacteriology, histology, immunology and pharmacology.

Specification
MBL.003034-24
MBL.003034-34
Head
Seidentopf binocular head, inclined at 30°,360° Rotatable
Seidentopf trinocular head, inclined at 30°,360° Rotatable
Eyepiece
Wide field eyepiece WF10x/ 18
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x
Achromatic Objective 100x
Nosepiece
Backward quadruple nosepiece
Focusing
Coaxial coarse & fine adjustment system, range 28mm, fine division 0.002mm
Stage
Double Layers Mechanical Stage 140×140mm/ 75×50mm
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter,rack & pinion adjustment
Illumination
Halogen lamp 6V/ 20W, brightness adjustable

Item
Optional Accessories
Eyepiece
 Wide Field Eyepiece WF16x/ 11
Objective


Achromatic objective 20x
Achromatic objective 60x
Plan Achromatic Objective 4x
Plan Achromatic Objective 10x
Plan Achromatic Objective 20x
Plan Achromatic Objective 40x
Plan Achromatic Objective 60x
Plan Achromatic Objective 100x
Nosepiece
Backward quintuple nosepiece
Polarization Set
Simple polarization set
Dark Field Condensor
Dark field condenser (Dry) N.A. 0.9
Dark field condenser (Oil) N.A. 1.25-1.36
Illumination
Kohler illumination
Phase Contrast Attachment
Simple phase contrast set
Sliding phase contrast set
Turret phase contrast set
