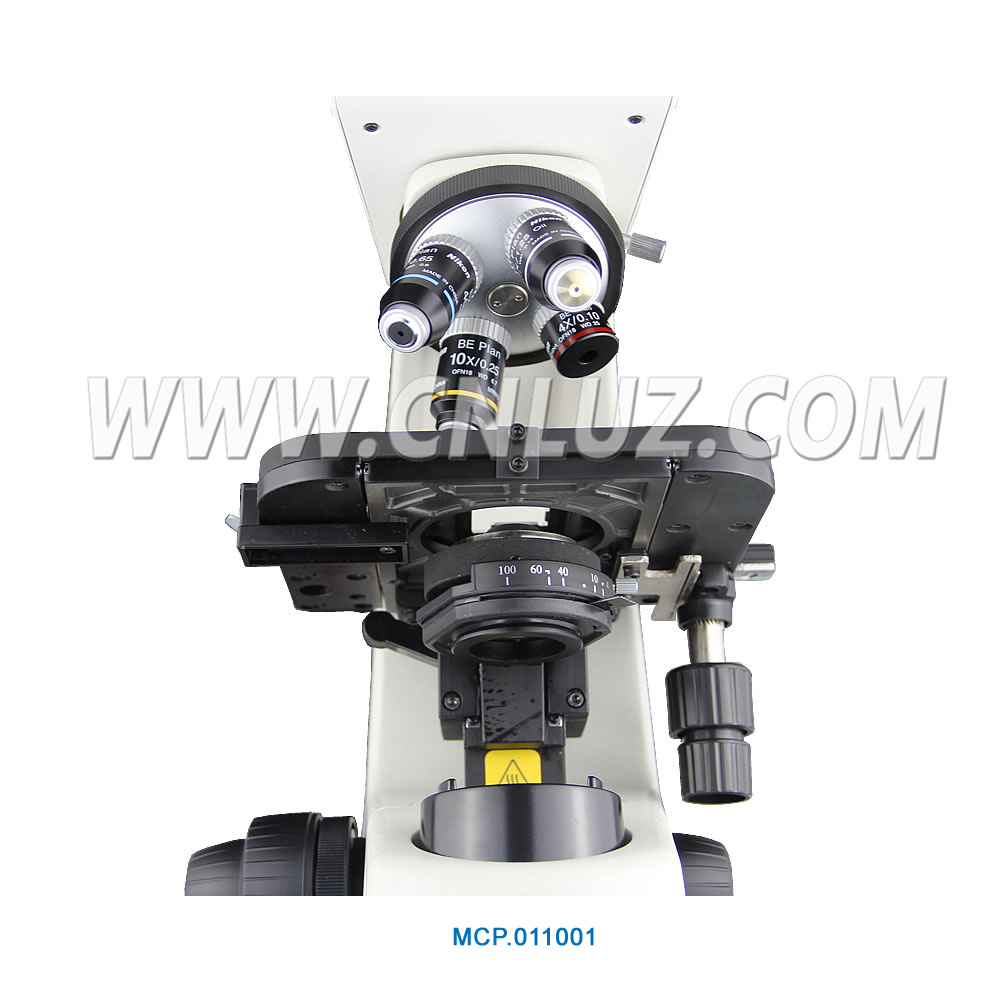

MCP.011001Binocular/Trinocular Compound Nikon Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57517765.jpg
  • /usr/575/Picture/Y/10932.jpg
  • /usr/575/Picture/Y/10933.jpg
  • /usr/575/Picture/Y/10934.jpg
  • CFI Optical System

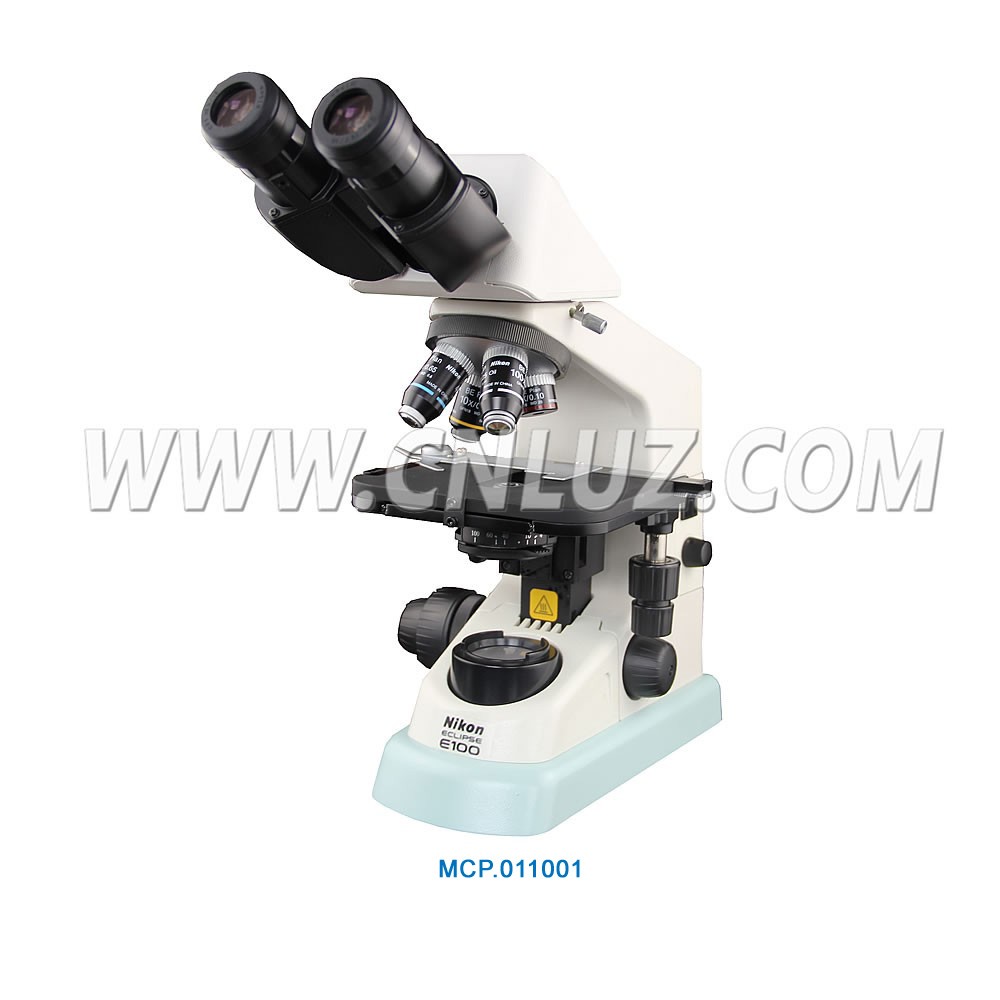

  • MCP.011001-B:E2-TB Brinocular Viewing Head

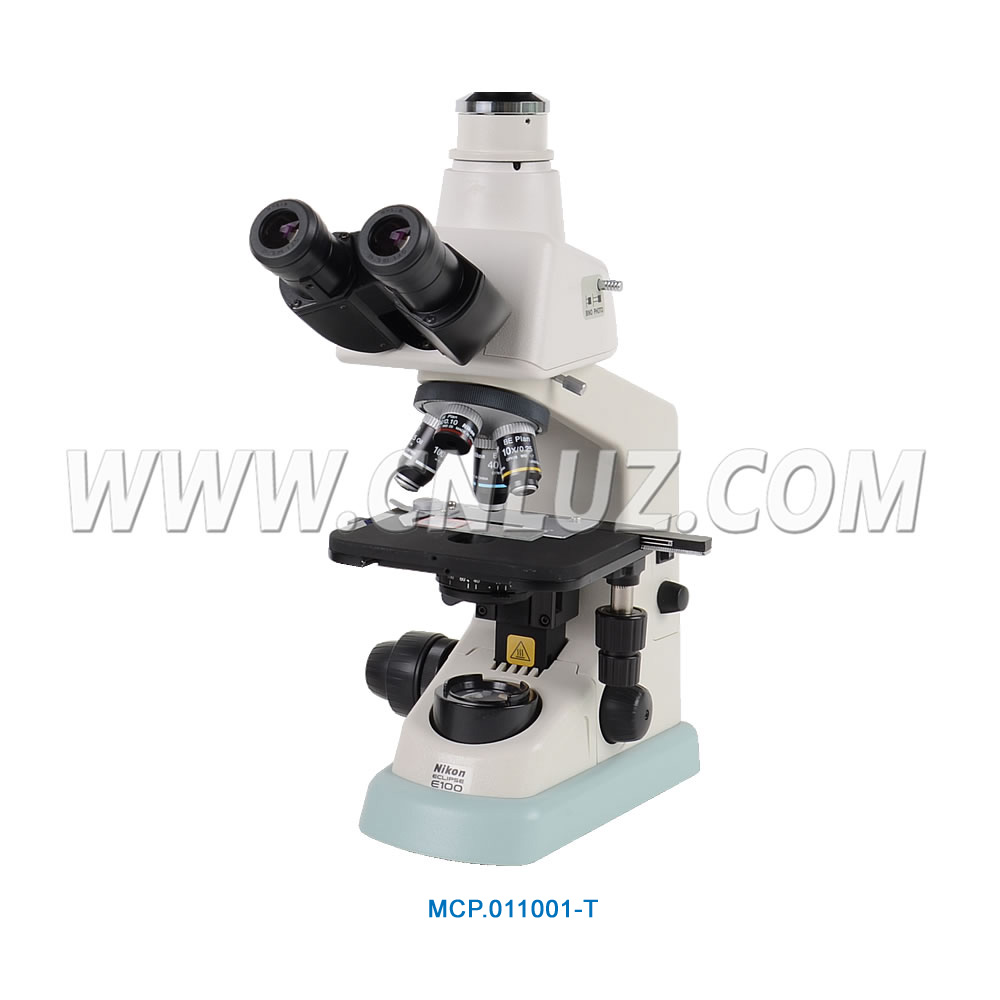

  • MCP.011001-T:E2-TF Trinocular Viewing Head
Specification
MCP.011001-B
MCP.011001-T
Optical System CFI Optical System
Head
E2-TB Brinocular Viewing Head, Inclined at 30°, Interpupillary 47-75mm
 E2-TF Trinocular Viewing Head, Inclined at 30°, 47-75mm
Eyepiece E1-CFI W10X/18
Objective CFI BE Plan Achromatic Objective 4x
CFI BE Plan Achromatic Objective 10X
CFI BE Plan Achromatic Objective 40X,Spring
CFI BE Plan Achromatic Objective 100X Spring,oil
Nosepiece
Frontward Quadruple Nosepiece
Stage
Double Layers Mechanical Stage 155*134mm
Focus System
 Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm
Condenser
Abbe N.A.1.25 Condenser which can hold 33mm filter
Light source

6V/20W Halogen Lamp
Gross weight 10kgs
Packing Size 38*32*52cm

Item
Optional Accessories
Eyepiece
 CFI E 15x/12
Objective


ICFI BE Plan Achromatic Objective 20X
ICFI BE Plan Achromatic Objective 60X
Phase Contrast
Phase Contrast Kit
Condenser
Dark Field Condensor
Illumination
Reflected Mirror
CCD Adapter
1X (Only for MCP.011001-T)
0.35X (Only for MCP.011001-T)
0.55X (Only for MCP.011001-T)
0.7X (Only for MCP.011001-T)
