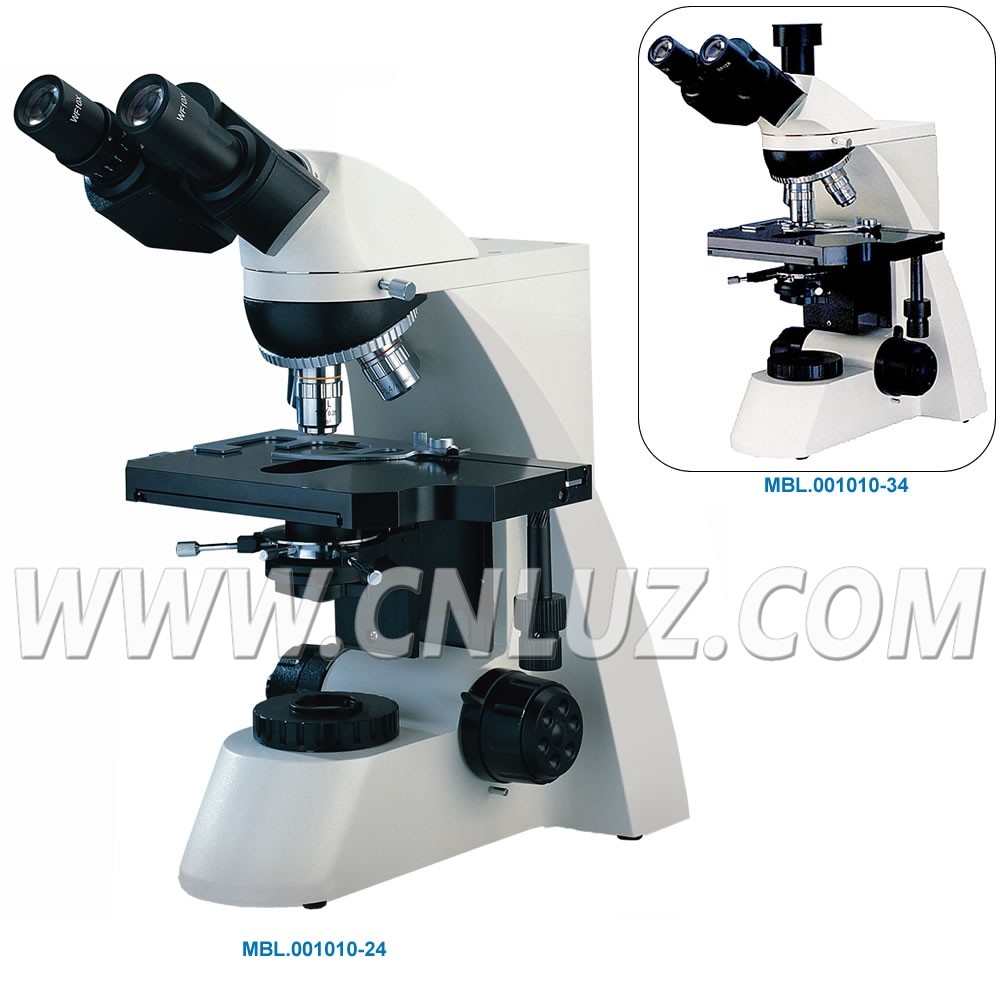

MBL.001010Binocular/Trinocular Compound Microscope, 40X~1000X

With plan objectives
Binocular or trinocular head inclined 30° available
Coaxial coarse/fine focusing system with tension adjustable and up stop
Kohler illumination with 6V 20W halogen lamp

Specification	MBL.001010-24	MBL.001010-34	MBL.001010-25	MBL.001010-35
Eyepiece	WF10X(Φ20mm)
Head	Binocular	Trinocular	Binocular	Trinocular
Objective	Plan 4X/0.10		Plan 4X/0.10
	Plan 10X/0.25		Plan 10X/0.25
			Plan 20X/0.40
	Plan 40X/0.65(Spring)		Plan 40X/0.65(Spring)
	plan 100X/1.25(Spring, oil)		plan 100X/1.25(Spring, oil)
Focusl System	Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
Nosepiece	Quadruple backward ball bearing inner locating		Quintuple backward ball bearing inner locating
Stage	Double layer mechanical, size 210x140mm, moving range 75x50mm
Condenser	Abbe N.A.1.25 Rack & pinion adjustment
Filter	Blue filter
	Frosted filter
Collector	For halogen lamp
Light source	6V 20W halogen lamp with brightness control

Item	Optional Accessories		Item No.
Eyepiece	Wide field WF16x/11mm		1051016
	Divding 10x/20mm, 0.1mm/Div		1120010
Filter	Green filter		115002
	Yellow filter		115003
Condenser	Dark field, dry		115003
	Dark field, immersion		051002
Phase Contrast Attachment	Eyepiece	Centering telescope	110001
	Objective	Phase contrast plan 10x/0.25 PHP	2420110
		Phase contrast plan 20x/0.40 PHP(Spring)	2420120
		Phase contrast plan 40x/0.65 PHP(Spring)	2420140
		Phase contrast plan 100x/1.25 PHP (Spring,oil)	2420111
	PH-I Turnplate phase contrast condenser		052001
	PH-II Turnplate phase contrast condenser		052004
	Flashboard phase contrast set		052002
	Pull board phase contrast set		052003
Infinity Optical System	Head	Binocular head inclination of 30°	011103
		Trinocular head inclination of 30°	012103
	Eyepiece	Centering telescope	110002
	Infinity Plan Achromatic Objective	Infinity Plan Achromatic 4x/0.10	2060104
		Infinity Plan Achromatic 10x/0.25	2060110
		Infinity Plan Achromatic 20x/0.25	2060120
		Infinity Plan Achromatic 40x/0.65(Spring)	2060140
		Infinity Plan Achromatic 100x/1.25(Spring, oil)	2060111
	Infinity Phase Contrast Objective	Infinity Phase Contrast Plan 10x/0.25 PHP	2470110
		Infinity Phase Contrast Plan 20x/0.40 PHP (Spring)	2470120
		Infinity Phase Contrast Plan 40x/0.65 PHP (Spring)	2470140
		Infinity Phase Contrast Plan 100x/1.25 PHP (Spring, oil)	2470111
CCD adapter	0.4x		810001
	0.5x		810004
	0.5x with dividing 0.1mm/Div		810003
	1x		810002
Camera	DV-1,With USB & video output		800001
	DV-2,With USB output		800003
	DV-3,With video output		800005
	Photography,USB Output		1096001
	Photography,VIDEO Output		1108001
Adapter	Digital Camera	CANON Digital camera adapter (A610,A620,A630,A640)	820001
	Photograph	2.5X/4X Change over photograph attachment with 10X viewing eyepiece	840001
		4X Focusing photograph attachment	840002
		MD Adapter	840003
		PK Adapter	840004
	For LED Lighsource	Input:230V 50/60HZ Output:9V 500mA	101001
		Input:110V 50/60HZ Output:9V 500mA	101002
