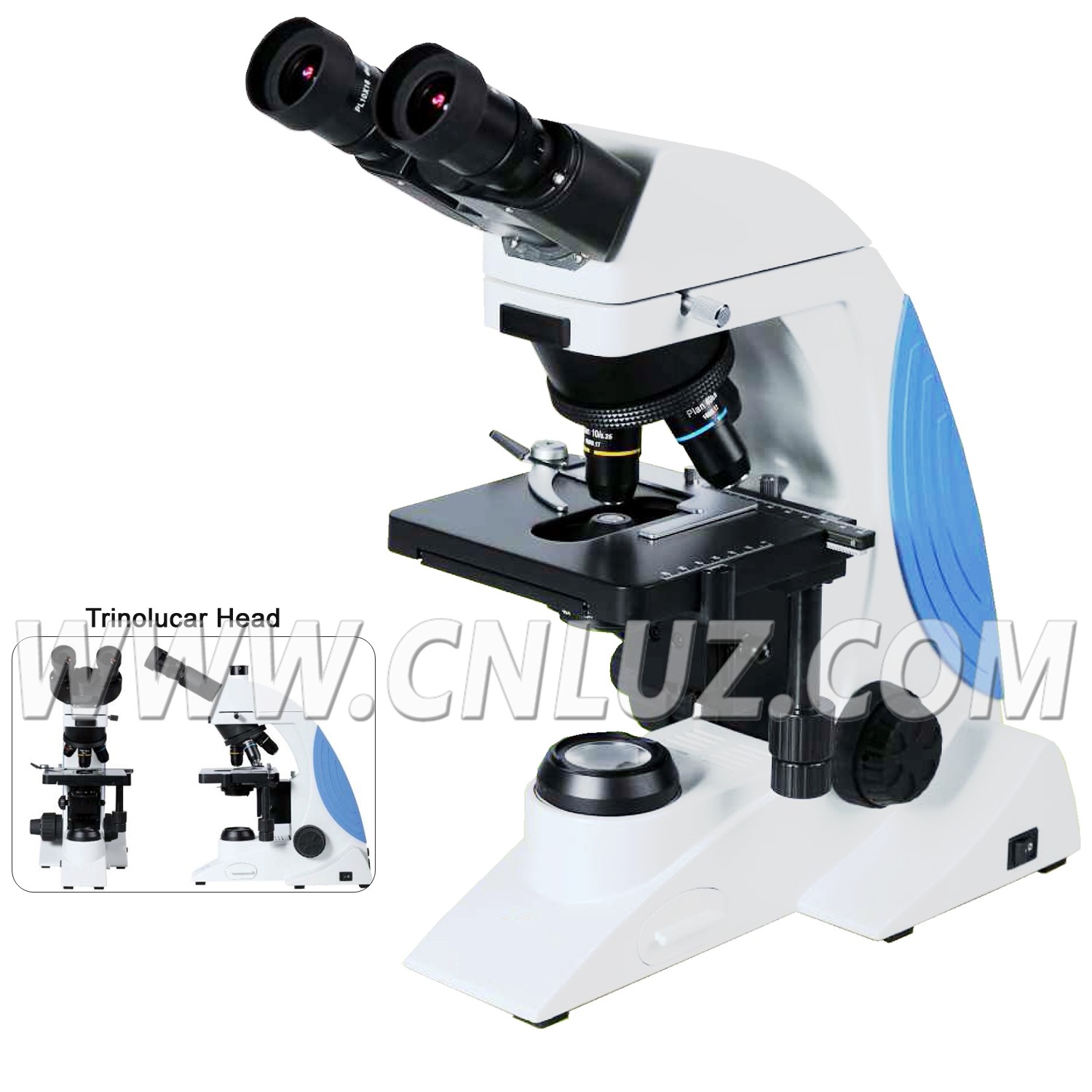

MBL.023045Binocular/Trinocular Compound Microscope, 40X~1000X

Finity＆infinity color corrected optical system
Plan achromatic objective offers users super resolution ratio and image quality
Ergonomic and new generation design,provide the comfortable operating
Damping style double clips,for using conveniently and protect the slides
More wider focus adjustment’s travel range ,design to be used in a variety of needs
Self-adaption variable voltage ,extend the halogen lamp’s service life

Specification	MBL.023045-2	MBL.023045-3
Head	Compensation Free Binocular Head, 30° Inclined,360° Rotatable, +/-5° Diopter Adjustable, Infinity System	Compensation Free Trinocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable, Infinity System
Eyepiece	Wide Field PL10x/20mm, High Eyepoint
Objective	Infinity Plan Achromatic Objective 4x/0.10
	Infinity Plan Achromatic Objective 10x/0.25
	Infinity Plan Achromatic Objective 40xs/0.65
	Infinity Plan Achromatic Objective 100xs/1.25(Oil)
Nosepiece	Quadruple Nosepiece
Focusing	Low Position Coaxial Coarse & Fine Focusing. Coarse Focusing Range 28mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Stage	Double Layer Mechanical Stage, 150140mm, Mvoing Range 5076mm, Precision 0.1mm, Double Slide Holder
Condenser	N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter	Blue, Dia.45mm
Light Source	Critcal Illumination, 6V/20W Halogen Lamp
Power	90~240V Wide Range Voltage

Item	Optional Accessories
Eyepiece	WF10x/20mm with Reticle
Eyepiece	WF10x/20mm with Pointer
Objective	Infinity Plan Achromatic 20xs/0.50
Infinity Phase Contrast	5 Holes Turret Phase Contrast Condenser, N.A. 1.25
	Phase Contrast Slide, For 10x, 40x Infinity
	Phase Contrast Slide, For 20x, 100x Infinity
	Phase Contrast Infinity Plan Achromatic Objective 10x
	Phase Contrast Infinity Plan Achromatic Objective 20x
	Phase Contrast Infinity Plan Achromatic Objective 40x
	Phase Contrast Infinity Plan Achromatic Objective 100x
Filter	Yellow, Dia.45mm
	Green, Dia.45mm
	Netural, Dia.45mm
Polarizing	Polarizer Dia..32mm, Put on Collector
	Analyzer Slide, Insert To Hole On Nosepiece
	Rotatable Working Stage
Nosepiece	Reversed Quintuple Nosepiece
Filter	Yellow, Dia. 45mm
	Green, Dia. 45mm
	Netural, Dia. 45mm
Adapter	0.5x C-Mount, For 1/2" CCD, Focus Adjustable
	0.35x C-Mount, For 1/3" CCD, Focus Adjustable
	Photo Adapter, With Photo Eyepiece 3.2x, With PK or MD Mount
Light Source	Kohler Illumination, 6V20W Halogen Lamp, Center Pre-adjusted
	Critical Illumination, 3W LED, Center Pre-adjusted
	Kohler Illumination, 3W LED, Center Pre-adjusted
Dark Field	Dark Field Board Slide, For 4x~10x Objective, Critical Illumination
	Dark Field Board Slide, For 20x~40x Objective, Critical Illumination
	Dark Field Board Slide, For 4x~40x Objective, Kohler Illumination
