MBL.040004Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57519483.jpg
  • /usr/575/Picture/Y/11574.jpg
  •
  •



Compensation Free Head !

High efficiency, flexibility, stability is a kind of biological microscope for all kinds of applications in the field of daily work and development. It can be widely used in a variety of laboratories, schools, hospitals.It is the first choice for individuals, schools, hospitals and scientific research units.

  • Wide field eyepiece, high brightness lighting system and high-quality optical components of high-definition imaging to high brightness;
  • Built-in converter and high quality objective lens, so that the user to operate with more convenient space and better observation effect;
  • Large mechanical platform and double plate specimen clip for observation and testing to provide convenient;
  • Accurate focusing mechanism and reasonable design of human nature to make the operator feel relaxed;
  • Front pull type set light mirror, let the user change the light bulb more quick and easy.



Major differences between each models

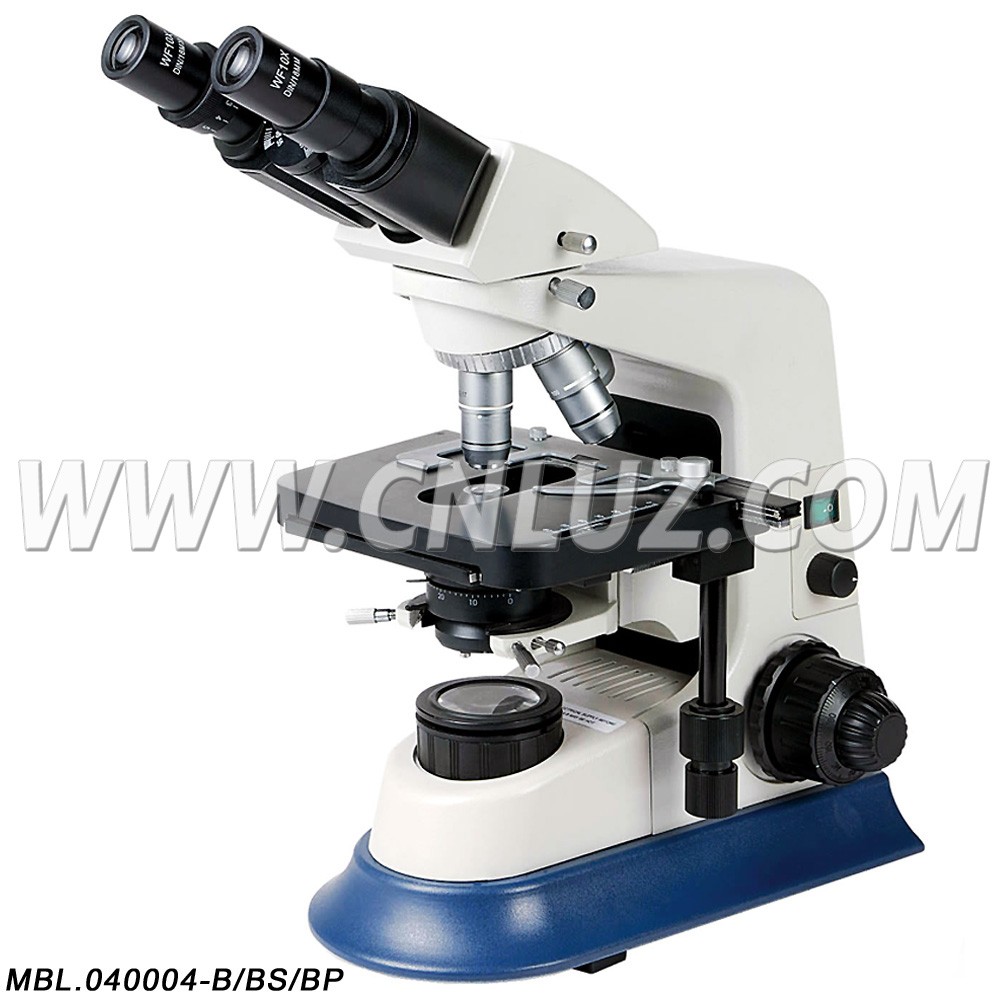

  • MBL.040004-B:Binocular, Achromatic Objectives
  • MBL.040004-BS:Binocular, Semi-Plan Objectives
  • MBL.040004-BP: Binocular,Plan Objectives

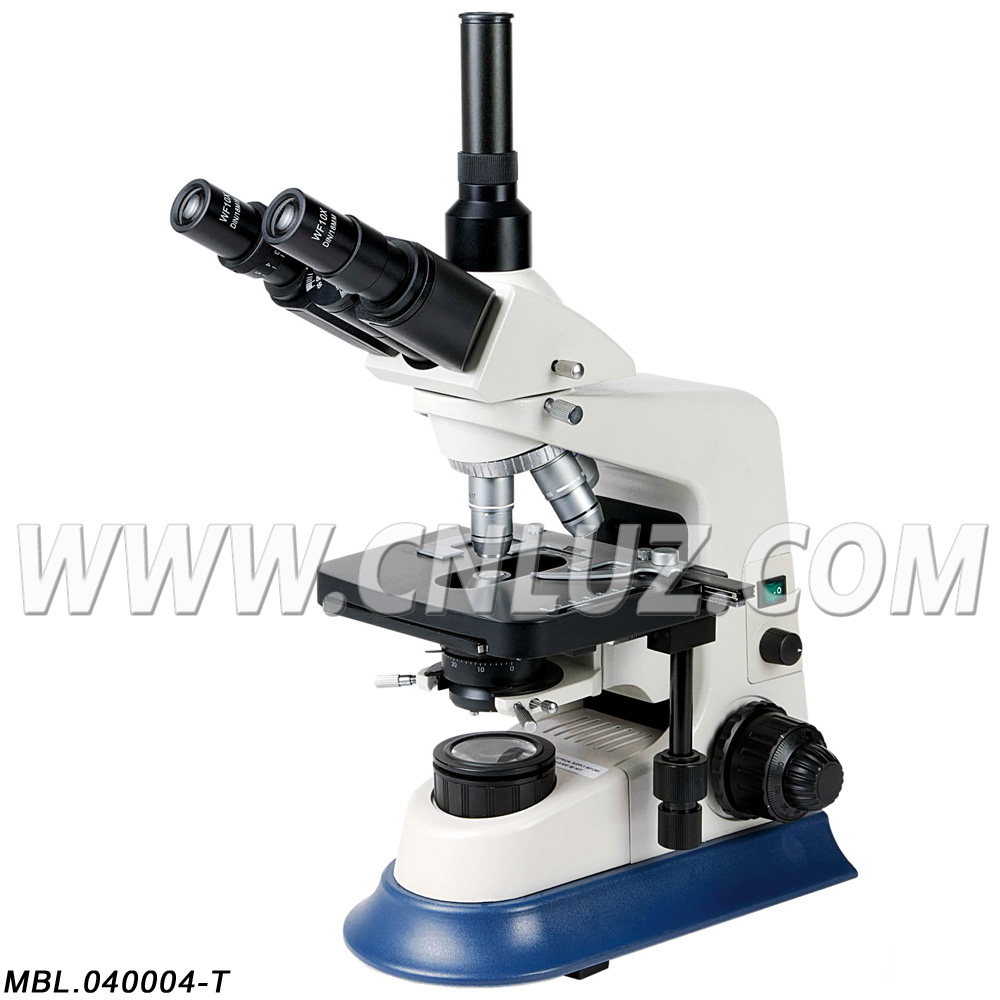

  • MBL.040004-T: Trinocular,Semi-Plan Objectives
Specification
MBL.040004-B
MBL.040004-T
Head
Compensation Free Binocular,45°inclined,52mm-74mm
Compensation Free Trinocular,45°inclined,52mm-74mm
Eyepiece
WF10X
Objective
Achromatic Objective 4x
Semi-Plan Objective 4x
Achromatic Objective 10x
Semi-Plan Objective 10x
Achromatic Objective 40x,Spring,Oil
Semi-Plan Objective 40x, Spring,Oil
Achromatic Objective 100x,Spring,Oil
Semi-Plan Objective 100x, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size140x140mm,Moving Range:75mmx50mm
Condenser
Abbe N.A.1.25Condenser with Iris Diaphragm & Filter
Illumination
High Brightness Kohler Illumination, Halogen Bulb 12V/20W AC85V-230V, Adjustble Brightness

Specification
MBL.040004-BS
MBL.040004-BP
Head
Compensation Free Binocular,45°inclined,52mm-74mm
Eyepiece
WF10X
Objective
Semi-Plan Objective 4x
Plan Objective 4x
Semi-Plan Objective 10x
Plan Objective 10x
Semi-Plan Objective 40x,Spring,Oil
Plan Objective 40x, Spring,Oil
Semi-Plan Objective 100x,Spring,Oil
Plan Objective 100x, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size140x140mm,Moving Range:75mmx50mm
Condenser
Abbe N.A.1.25Condenser with Iris Diaphragm & Filter
Illumination
High Brightness Kohler Illumination, Halogen Bulb 12V/20W AC85V-230V, Adjustble Brightness

Item
Optional Accessories
Eyepiece
WF16X
WF20X
P16X
Objective

Achromatic objective 20x
Achromatic objective 60x, Spring
Semi-Plan Achromatic Objective 20x
Semi-Plan Achromatic Objective 60x (S)
Plan Achromatic Objective 20x
Plan Achromatic Objective 60x (S)
Infinity Plan Achromatic Objective 4x
Infinity Plan Achromatic Objective 10x
Infinity Plan Achromatic Objective 20x
Infinity Plan Achromatic Objective 40x (S)
Infinity Plan Achromatic Objective 60x (S)
Infinity Plan Achromatic Objective 100x (S)
Dark Field
Darkfield
Attachment
Phase Contrast Attachment
CCD Adapter
0.5x
0.57x
0.75x
