MBL.040010Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57519496.jpg
  • /usr/575/Picture/Y/11580.jpg
  •
  •

High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. Because of higher capability with lower price and humanized configuration design, It also becomes the first choice of individual, Schools, and Scientific research organization.

  • Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
  • Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
  • Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
  • High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
  • Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.

Major differences between each models

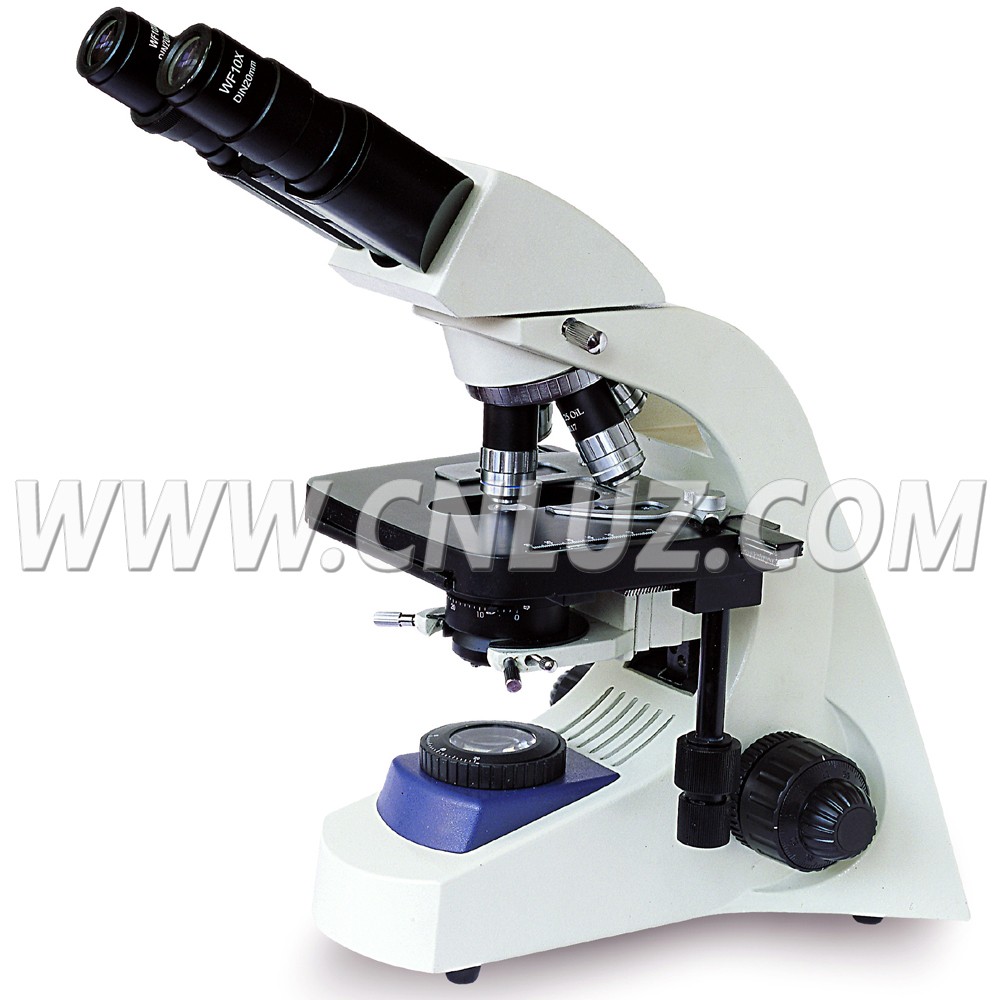

  • MBL.040010-B:   Binocular, Achromatic Objectives
  • MBL.040010-T:   Trinocular, Achromatic Objectives
  • MBL.040010-BS:   Binocular,Semi-Plan Objectives
  • MBL.040010-BP: Binocular, Plan Objectives
Specification
MBL.040010-B
MBL.040010-T
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Compensation FreeTrinocular,30°inclined,55mm-75mm
Eyepiece
WF10x
Objective
Achromatic Objective 4x
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 10x
Achromatic Objective 40x, spring
Achromatic Objective 40x, spring
Achromatic Objective 100x, spring oil
Achromatic Objective 100x, spring oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size180x150mm,Moving Range:75mmx50mm
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Light Source
Halogen Bulb 12V/20W AC85V-230V,Adjustble Brightness
Illumination
High Brightness Kohler Illumination

Specification
MBL.040010-BS
MBL.040010-BP
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Eyepiece
WF10x
Objective
Semi-Plan Objective 4x
Plan Objective 4x
Semi-Plan Objective 10x
Plan Objective 10x
Semi-Plan Objective 40x, Spring
Plan Objective 40x, Spring
Semi-Plan Objective 100x, Spring, Oil
Plan Objective 100x, Spring, Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size180x150mm,Moving Range:75mmx50mm
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Light Source
Halogen Bulb 12V/20W AC85V-230V,Adjustble Brightness
Illumination
High Brightness Kohler Illumination

Item
Optional Accessories
Eyepiece
WF16X
WF20X
Objective

Achromatic objective 20x
Achromatic objective 60x, Spring
Semi-Plan Achromatic Objective 20x
Semi-Plan Achromatic Objective 60x (S)
Plan Achromatic Objective 20x
Plan Achromatic Objective 60x (S)
Infinity Plan Achromatic Objective 4x
Infinity Plan Achromatic Objective 10x
Infinity Plan Achromatic Objective 20x
Infinity Plan Achromatic Objective 40x (S)
Infinity Plan Achromatic Objective 60x (S)
Infinity Plan Achromatic Objective 100x (S)
Attachment
Phase Contrast Attachment
CCD Adapter
0.5x
0.57x
0.75x
