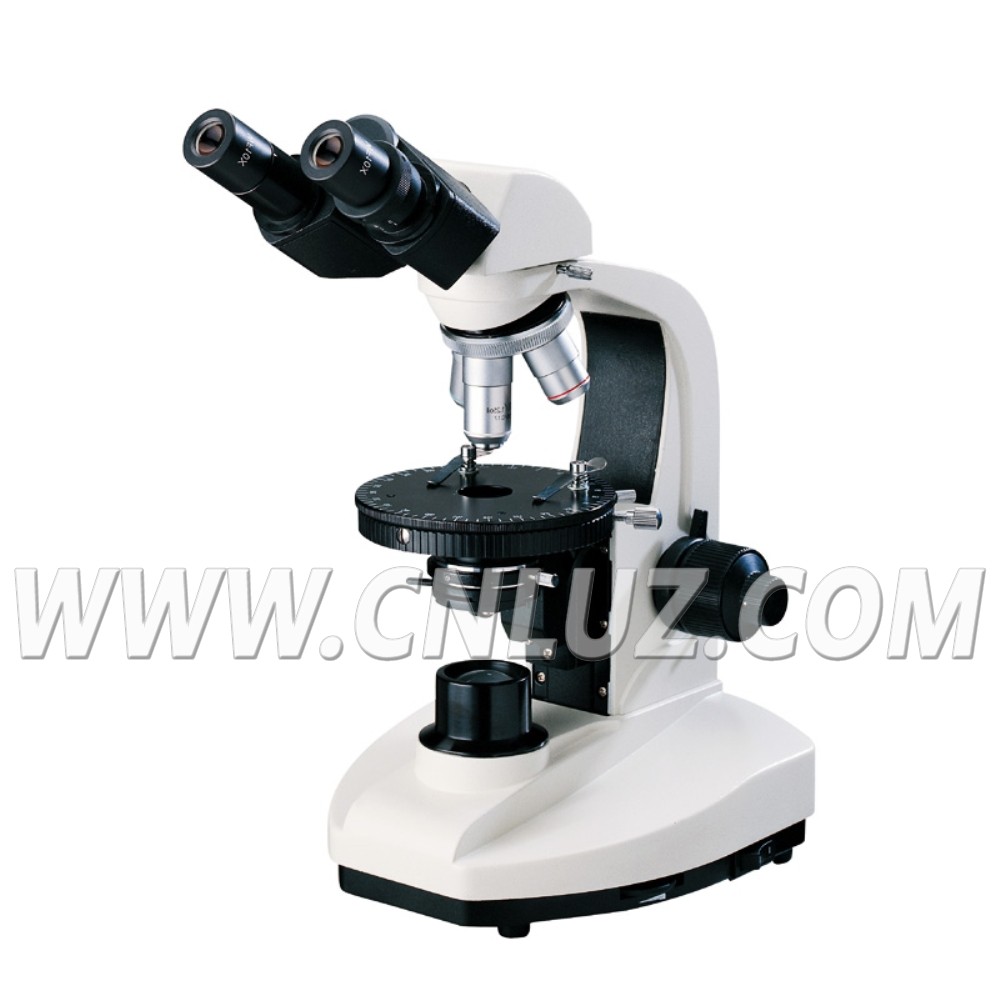

MBP.001002Polarizing Microscope
  • /usr/575/images/Products/Y/57517856.jpg
  • /usr/575/Picture/Y/10948.jpg
  • /usr/575/Picture/Y/10949.jpg
  •

Polarizing microscope!

These series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fiber and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can't be observe for nature light.

  • Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
  • 6V 20W halogen lamp transmission illumination brightness control.

Specification
MBP.001002-A
MBP.001002-B
Eyepiece
Wide field WF10X(Φ18mm)
Head
Binocular inclination of 30°
Objectives

Achromatic 4X/0.10

Achromatic 10X/0.25

Achromatic 40X/0.65 (Spring)

Achromatic 100X/1.25(Spring,oil)

Analyzer
Sliding
Focus System
Coaxial coarse/fine system, with tension adjustable and up stop, minimum division of fine focusing 2um
Polarizer
360° rotatable stage
Nosepiece
Quadruple, backward ball bearing inner locating
Stage
Rotatable stage, diameter 120mm
Double layer mechanical stage135x125mm, moving range 75x35mm, with rotatable stage dia.100m
Condenser

Abbe Condenser N.A. 1.25 rack & Pinion adjustable

Filter
Frosted filter
Blue filter
Collector
For illumination with halogen lamp (with field diaphragm)
Illumination Unit

With polarizer, 6V20w, halogen lamp, adjustable brightness


Item

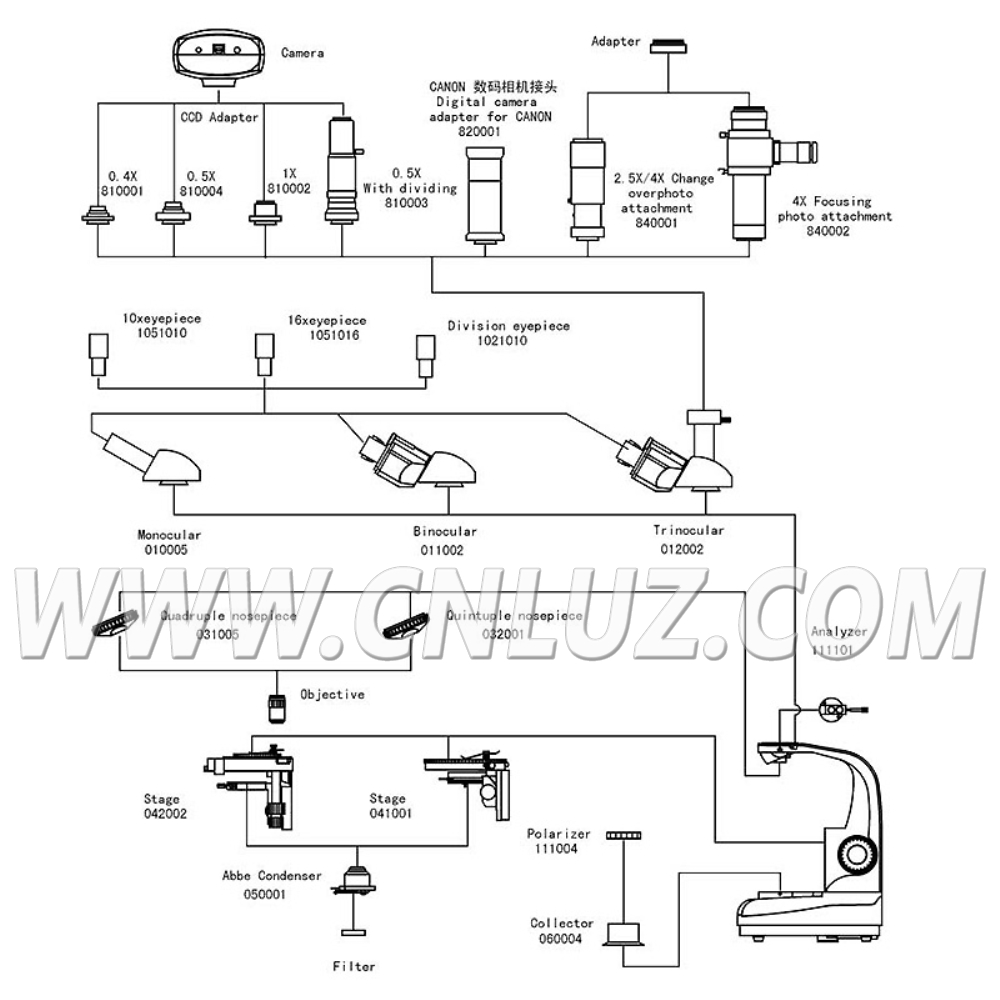

Optional Accessories
Eyepiece
WF16x/11mm wide field
Dividing WF10x/18mm, 0.1mm/Div
Head
Monocular, 360°, inclination of 30°
Trinocular, inclination of 30°, observe and photograph at same time
Nosepiece Quintuple, backward ball bearing inner locating
Filter Green filter
Yellow filter
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Photo Adapter

2.5X/4X Change over photograph adapter with 10X viewing eyepiece
4X Focusing photograph adapter
PK Adapter
MD Adapter
