MBP.001004Polarizing Microscope

These series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

Transmitted, Reflected, transmitted/reflected illumination can be choosn
Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical effective movement up to 30mm
Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable

Specification	MBP.001004-A	MBP.001004-B	MBP.001004-C
	Transmitted	Transmitted & Reflected	Reflected
Eyepiece	Wide field WF10x/18mm
	Division eyepiece 10x/18mm 0.10mm/div
Head	Trinocular head,revolved (inclination of 30 °),100% image light for photography capable
Objective , Center Adjustable	Strain-free plan achromatic objective (cover glass:0.17mm) PL 4X/0.10	Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
	Strain-free plan achromatic objective (cover glass:0.17mm) PL 10X/0.25	Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
	Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring)	Strain-free plan achromatic objective (no cover glass) PL L40X/0.60 (spring)
	Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring)	Strain-free plan achromatic objective (no cover glass) PL L 60X/0.75 (spring)
Eyepiece Tube	Trinocular head, inclination of 30°,can send 100% of the image light to top photography port
Focus System	Coaxial coarse/fine system, with tension adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece	Quadruple (Frontward ball bearing inner locating)
Stage	Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6' center adjustable and with tightener
Polarizing Attachment	Built-in analyzer, can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12'
	Bertrand lens, impellent style, center adjustable
	λ compensator
	λ/4 compensator
	Quarts wedge compensator
Reflected Illumination		Rotatable Polarizer
		6V 20w, halogen lamp, adjustable brightness
Transmitted Iillumination	Polarizer 360° rotatable, have 0,90,180,270 four scale
	Collector for halogen lamp illumination
	Illumination 6V 20w, halogen lamp, adjustable brightness
	Abbe condensor N.A. 1.25, rack & pinion adjustable

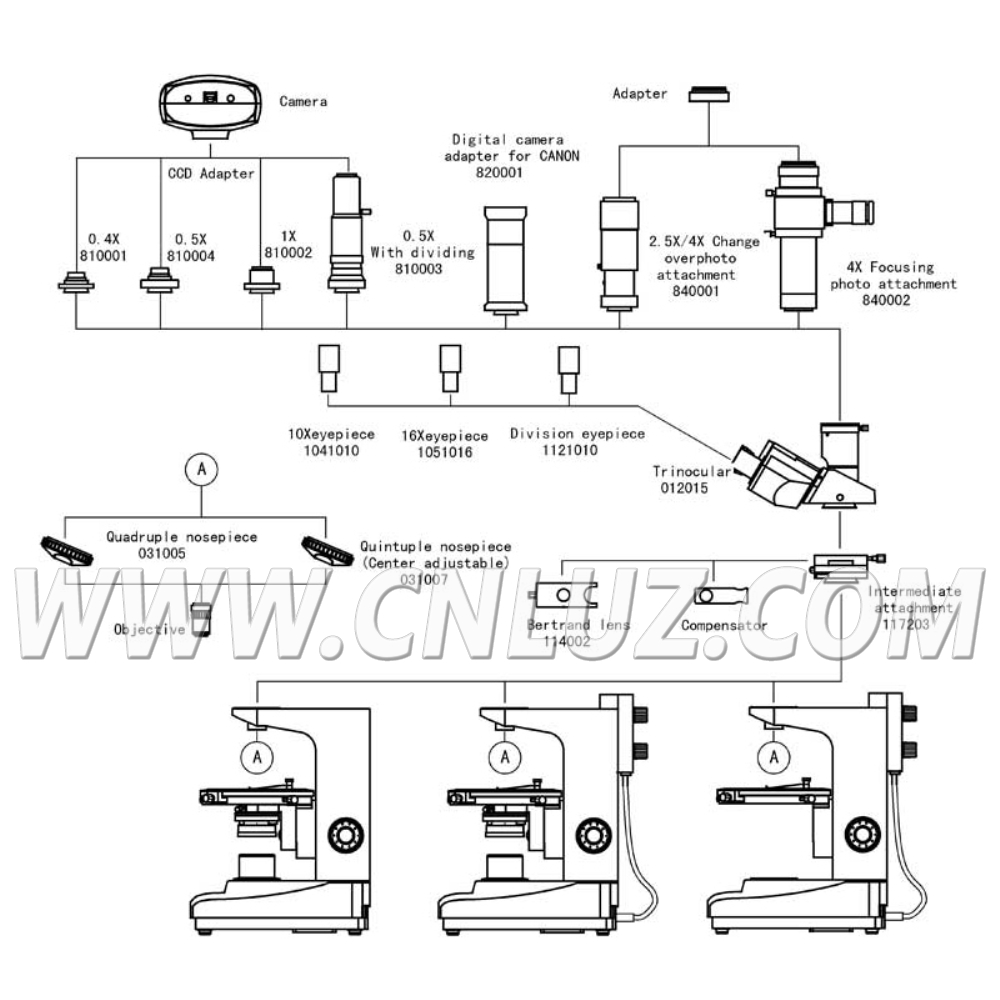

Item	Optional Accessories
Eyepiece	Wide field WF16X(Φ11mm)
Objective	Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40
	Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring)
	Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40
	Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70
	Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80
	Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring)
Nosepiece	Quadruple (Frontward ball bearing inner locating)，adjust the center of objective
Slide Moving Holder	Moving range: 30mmX25mm
CCD adapter	0.4x
	0.5x
	1x
	0.5x with dividing 0.1mm/Div
Camera	DV-1 With USB & video output
	DV-2 With USB output
	DV-3 With video output
Photo Adapter	2.5x/4x change over photograph attachment with 10x viewing eypiece
	4x focusing photograph attachment
	MD adapter
	PK adapter
Digital Camera Adapter	For Canon EF ditigal SLR camera adapter
