MBC.023006Advanced Phase Contrast Microscope with Infinity Color Corrected System
  • /usr/575/images/Products/Y/57520400.jpg
  • /usr/575/Picture/Y/11638.jpg
  • /usr/575/Picture/Y/11639.jpg
  •

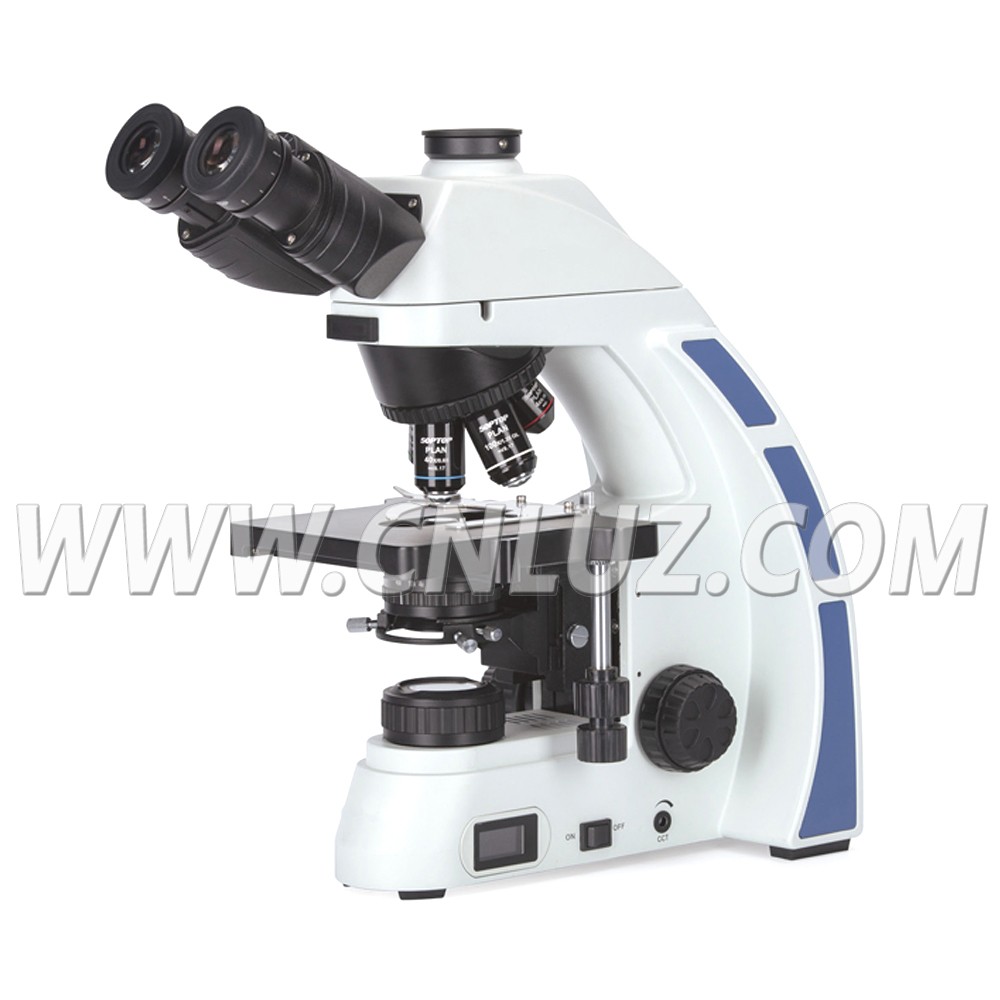

MBC.023006 An Advanced Phase Contrast Microscope for professionalUsers!

  • Infinity Color Corrected Optical System with high quality micro-technique presents superexcellent image at any observation.

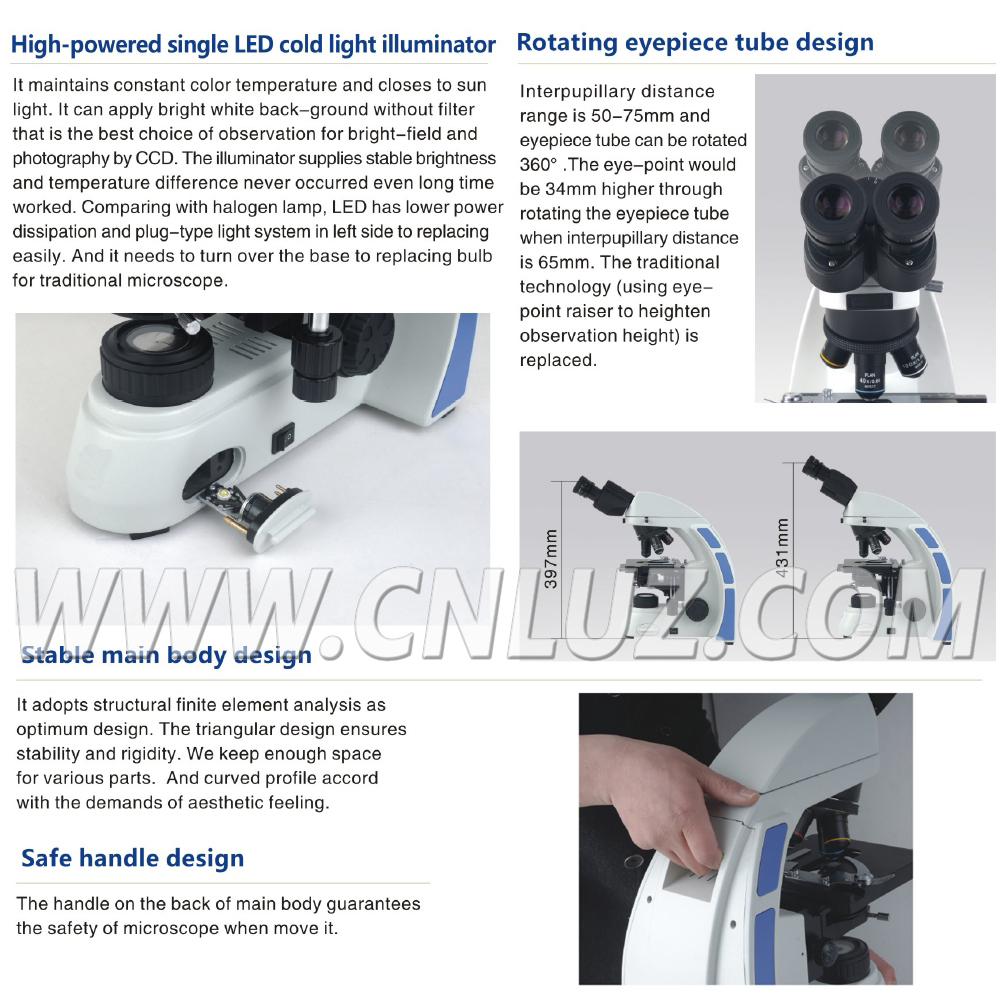

  • Eyepiece 360 degree rotateable, means the High Eyepoint can be adjusted 34mm higher.
  • Infinity phase contrast objective 10X、20X、40X、100X
  • Single 3W LED Transmitted Light Source
Specification
MBC.023006 Advanced Professional Phase Contrast Microscope
Optical System Infinity Color Corrected Optical System
Head
Seidentopf trinocular head, inclined at 30°,360° Rotatable
Eyepiece
Eyepiece 360 degree rotateable, means the High Eyepoint can be adjusted 34mm higher. Wide field eyepiece WF10x/ 20,High Eye Point, Diopter Adjustable +/-5 Degree;

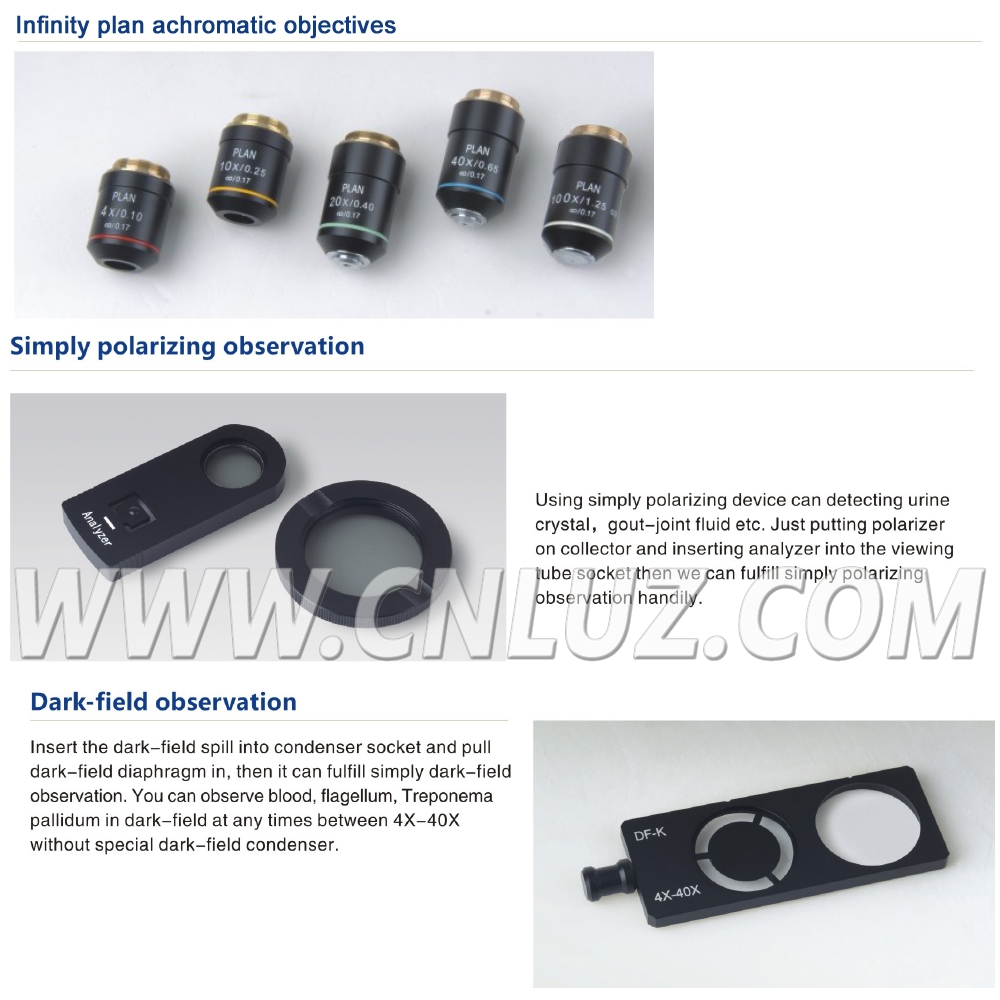

Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10X/0.25
Infinity Plan Phase Contrast Objective 20X/0.50
Infinity Plan Phase Contrast Objective 40X/0.65
Infinity Plan Phase Contrast Objective 100X/1.25
Centering telescope
Phase Contrast Slide, for 10x, 40x Infinity Objective
Phase Contrast Slide, for 20x,100x Infinity Objective
Nosepiece
Backward quadruple nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Stage
Double Layer Mechanical Stage 140*150mm, Moving Range 76*50mm, Precision 0.1mm
Condenser
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed
Illumination
3W LED, Intensity Adjustable, Center Fixed
Power 100~240V Wide Range Power Supply

Item
Optional Accessories
Condenser

N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10x,20x,40x,100x Phase Contrast Observation
