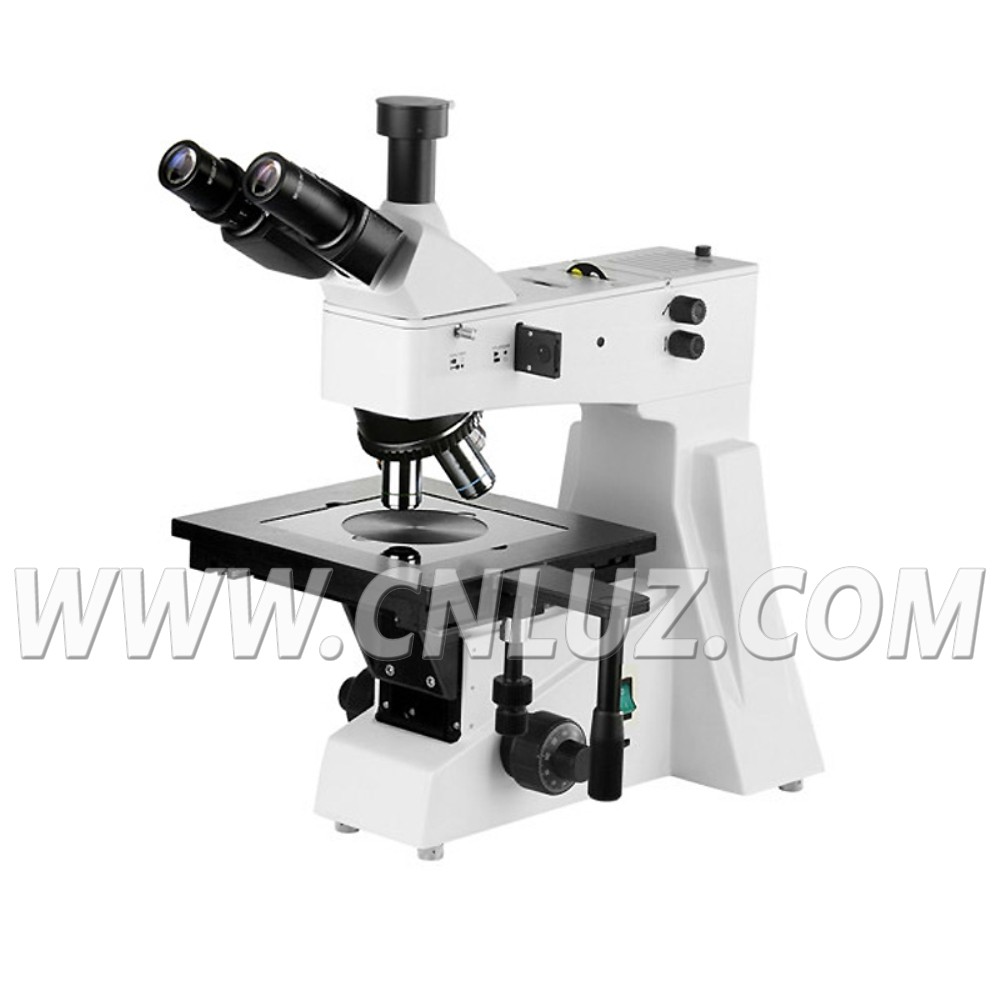

MMU.001005Upright Metallurgical Microscope

This Up-Right Bright/Dark Field Metallurgical Microscope can be used for bright-field, dark-field, simple polarizing observations.
It is the ideal instruments for inspecting semiconductors, packages, electronics substrates, materials.

With long working distance plan achromatic objectives (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
With large move range mechanical stages,moving range:8"×8"(204mm×204mm)
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.8μm
6V 30W or 12V 50W halogen lamp, adjustable brightness
Trinocular, can switch to normally/polarize observation, brightfield/darkfield observation. can send 100% of light to the binocular eyepieces or to the top port

Specification	MMU.001005-A	MMU.001005-B
Eyepiece	Wide field WF10X(field number:Φ22mm)
Head	Trinocular head, inclined 30 can be shot in 100% light flux.
Objective	PL L5X/0.12 WD 26.1mm (Bright field objectives)		PL L5X/0.12 BD WD 9.70mm (Bright & Dark field objectives)
	PL L10X/0.25 WD 20.2mm (Bright field objectives)		PL L10X/0.25 BD WD 9.30mm(Bright & Dark field objectives)
	PL L20X/0.40 WD 8.80mm (Bright field objectives)		PL L20X/0.40 BD WD 7.23mm(Bright & Dark field objectives)
	PL L50X/0.70 WD 3.68mm (Bright field objectives)		PL L50X/0.70 BD WD 2.50mm(Bright & Dark field objectives)
	PL L80X/0.80 WD 1.25mm (Bright field objectives)		PL L80X/0.80 BD WD 1.25mm(Bright & Dark field objectives)
Focus System	Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.7 μm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Mechanical stage，overall size:280mmX270mm，moving range: 204mmX204mm
Epi- illumination System	Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
	6V30W halogen and brightness enable control		12V50W halogen and brightness enable control

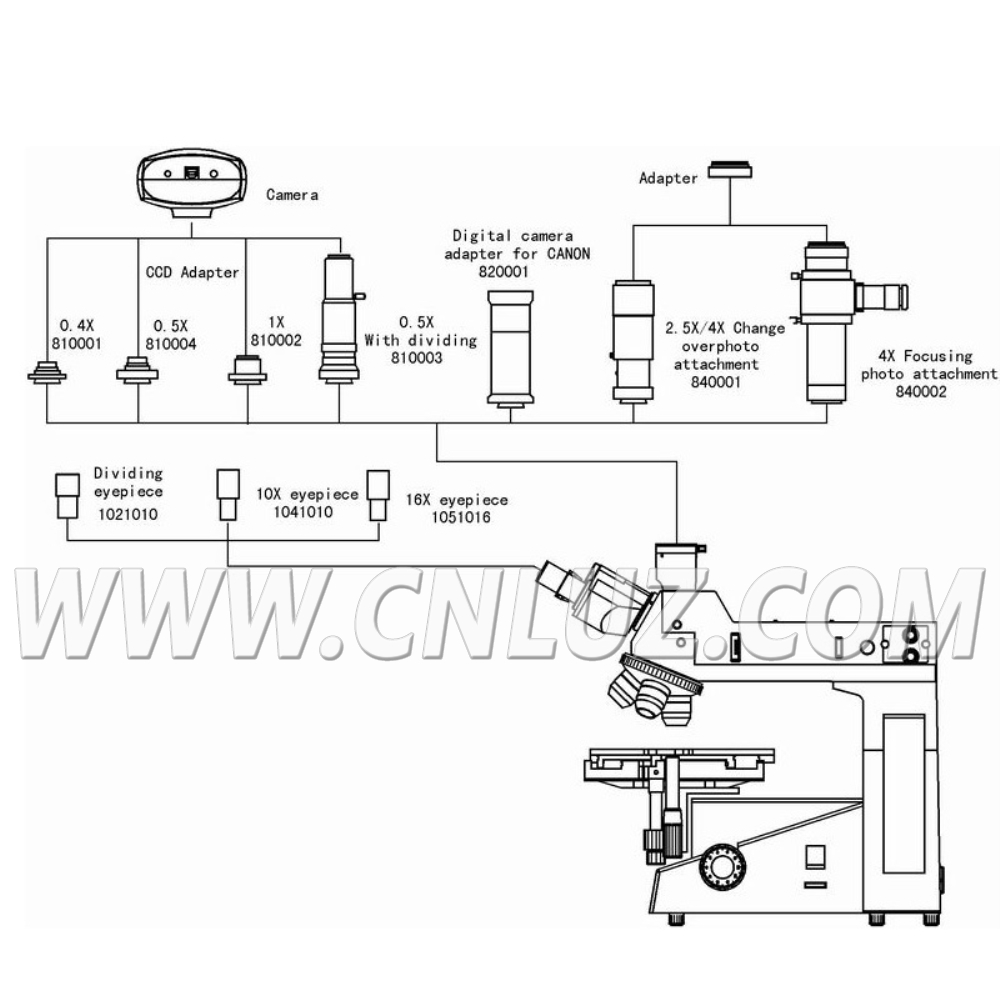

Item	Optional Accessories
Eyepiece	Dividing eyepiece(field number:Φ22mm) 0.10mm/Div
Equipped with bright field objectives	PL L40X/0.65Work distance:0.66mm
	PL L60X/0.85Work distance:0.25mm
	PL L100X/0.85Work distance:0.4mm
Equipped with bright & dark field objectives	PL L40X/0.60Work distance:3.0mm
	PL L60X/0.70Work distance:1.9mm
	PL L100X/1.25Work distance:0.35mm
Stage	Mechanical, moving range is 250mmX230mm Move range:154mmX154mm
CCD Adapter	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Digital Camera Adapter	CANON EF digital SLR camera adapter
