MMU.001004Upright Metallurgical Microscope
  • /usr/575/images/Products/Y/57517787.jpg
  • /usr/575/Picture/Y/10839.jpg
  • /usr/575/Picture/Y/10840.jpg
  •

This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys.
It is the important instrument for researching metallography in metal physics.

  • Plan achromatic objectives with long working distance (no cover glass)
  • Coaxial coarse/fine focusing system with tension adjustable and up stop
  • 6V 20W halogen lamp with brightness control
  • Trinocular head can switch between normal observation and polarizing observation
Specification

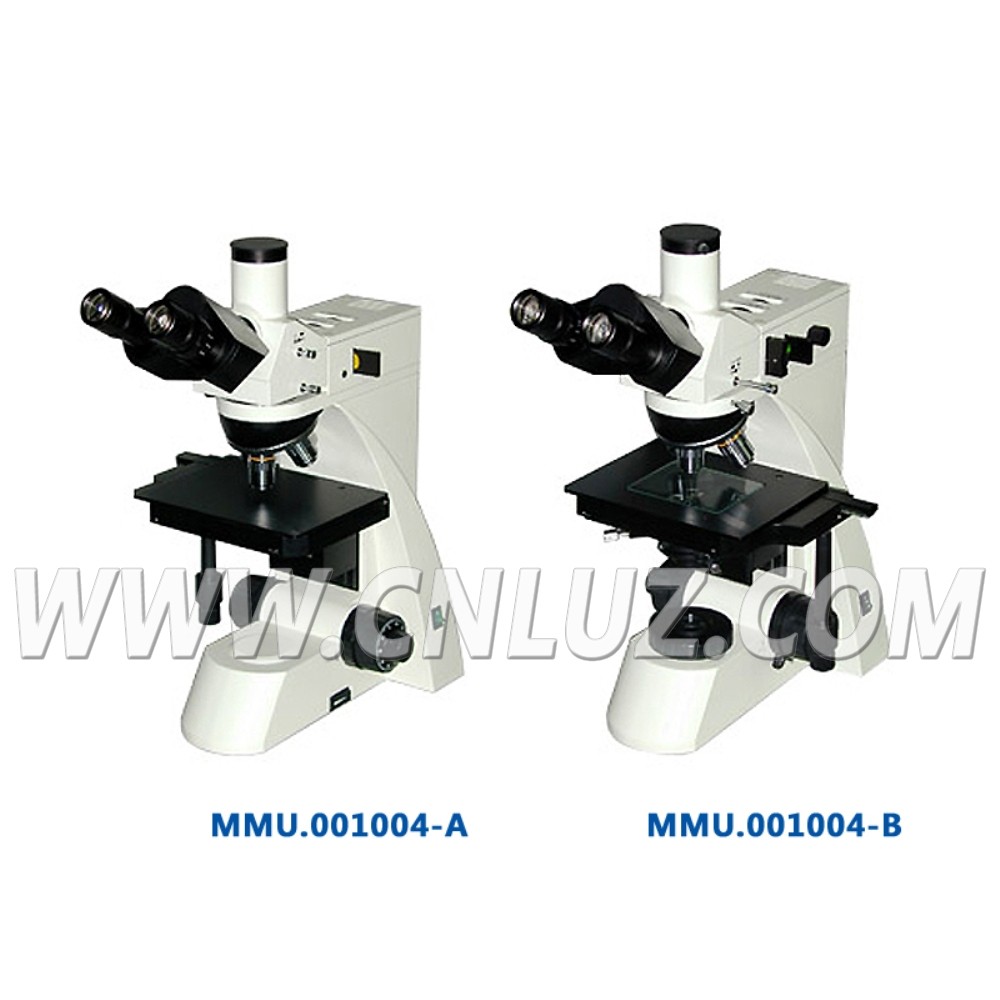

MMU.001004-A
MMU.001004-B
Eyepiece
WF10X(Φ18mm)
Head
Trinocular, inclination of 30°, analyzer with field diaphragm to switch
Objective
Plan long working distance (no cover glass) PL5x/0.12
Plan long working distance (no cover glass) PLL10x/0.25
Plan long working distance (no cover glass) PLL20x/0.40
Plan long working distance (no cover glass) PLL50x/0.7
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece
Quadruple back ball bearing inner locating
Stage
Double layer mechanical, size 210x140mm, moving range 75x50mm
Vertical illumination Unit
Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and ground glass
6V 20W halogen lamp with brightness control
Transmited Illumination Unit

Abbe condenser NA.1.25 Rack & pinion adjustable

Blue filter and frosted filter

Collector for illumination with halogen lamp (With field diaphragm )

6V 20W, halogen lamp, adjustable brightness

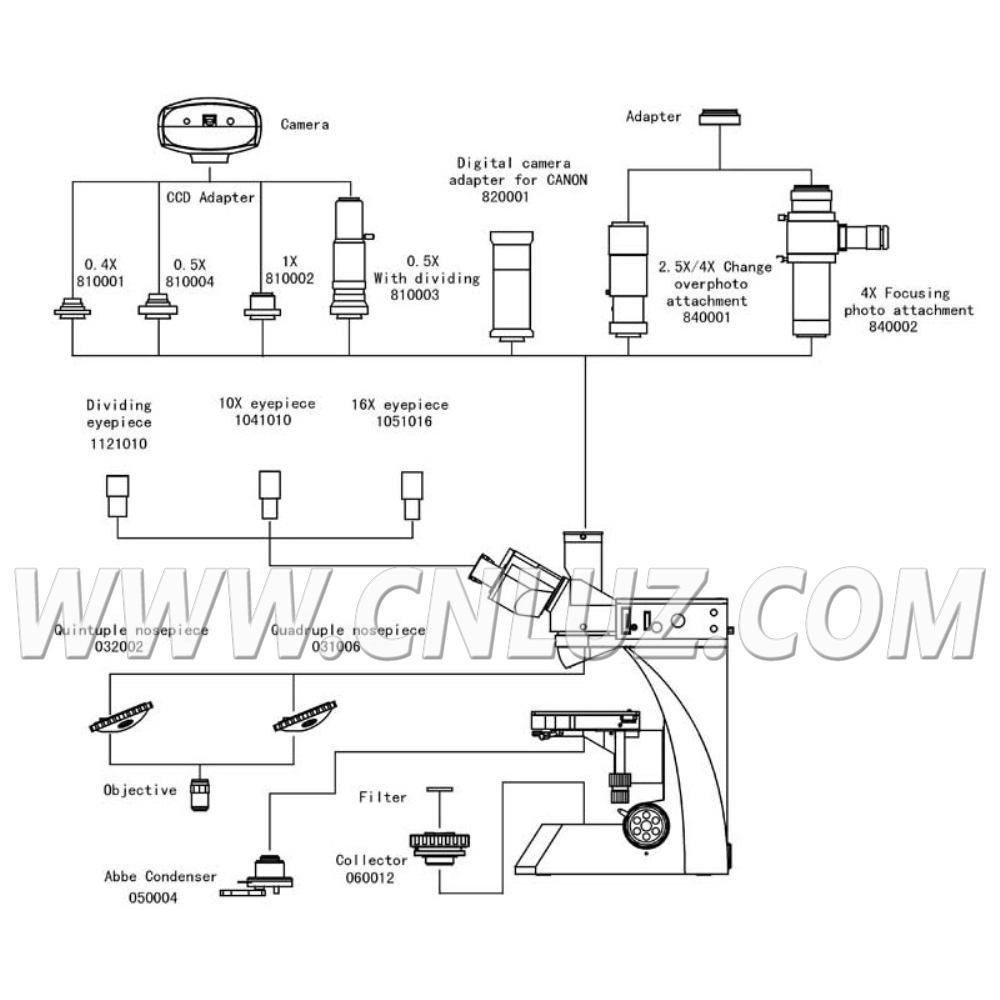

Item
Optional Accessories
Eyepiece

Wide field WF16X(Φ11mm)
Divding 10x, 0.1mm/Div
Objective
Plan long working distance (no cover glass) PLL40x/0.60
Plan long working distance (no cover glass) PLL60x/0.75(Spring)
Plan long working distance (no cover glass) PLL10x/0.85(Spring)
Plan achromatic (no cover glass) PL100x/1.25
Nosepiece Quintuple backward ball bearing inner locating
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Digital Camera Adapter
Digital Camera Adapter for CANON(A610,A620,A630,A640)
Photo Adapter
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
4X Focusing photograph attachment
PK Adapter
MD Adapter
