MMU.023072Trinocular Upright Metallurgical, 50X~500X, DIC
  • /usr/575/images/Products/Y/57518567.jpg
  • /usr/575/Picture/Y/11468.jpg
  • /usr/575/Picture/Y/11469.jpg
  • /usr/575/Picture/Y/11470.jpg

High quality component design, simple and flexible combination and strong metallographic detecting function, this microscope is the best choice for large size sample observation.

  • Compact and flexible structure, adapting various surroundings.
  • Get clear and sharp image under various kind of observations.
  • Optical components are all specially handled and coated with special film.

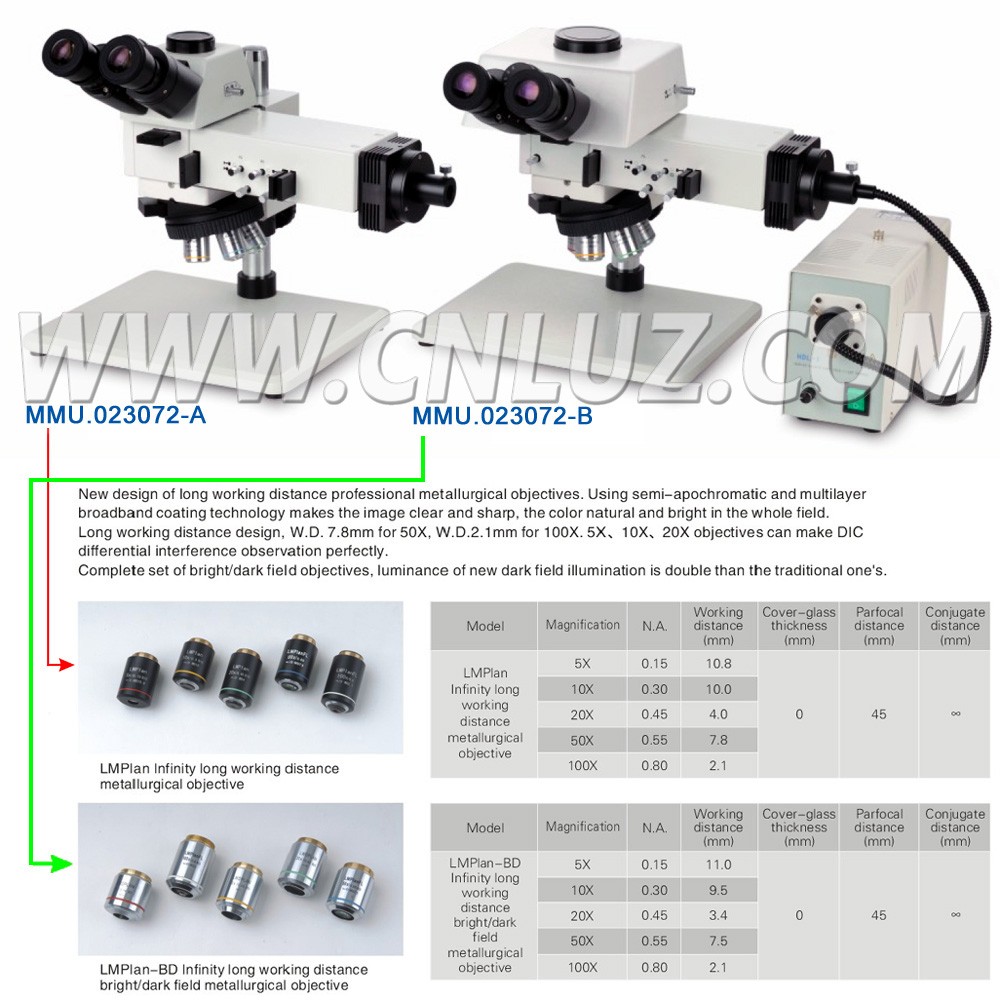

  • New design of long working distance professional metallurgical objectives. High power objectives with semi-apochromatic technology.
Specification
MMU.023072-A
MMU.023072-B

Optical system

Infinity color corrected optical system

Optical system

Bright field/ Oblique illumination/ Polarizing//DIC

Bright field/Dark field/Polarizing/DIC

Head

30°inclined trinocular head, splitting ratio for binocular: trinocular =100:0 or 50:50,diopter adjustment±5, interpupillary distance 54mm-75mm

25°inclined trinocular positive head, splitting ratio for binocular: trinocular =100:0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm
Eyepiece

High eye-point plan eyepiece PL10X22mm

Objective

Long Working Distance Infinity Plan Metallurgical DIC Achromatic Objectives LMPL5X/0.15 WD10.8MM

Long Working Distance Infinity Plan Metallurgical BD DIC Achromatic Objectives LMPL5X/0.15 WD10.8MM

Long Working Distance Infinity Plan Metallurgical DIC Achromatic Objectives LMPL10X/0.3 WD10MM Long Working Distance Infinity Plan Metallurgical BD DIC Achromatic Objectives LMPL10X/0.3 WD10MM
Long Working Distance Infinity Plan Metallurgical DIC Achromatic Objectives LMPL20X/0.45 WD4MM Long Working Distance Infinity Plan Metallurgical BD DIC Achromatic Objectives LMPL20X/0.45 WD4MM
Long Working Distance Infinity Plan Metallurgical Achromatic Objectives LMPL50X/0.55 WD7.8MM Long Working Distance Infinity Plan Metallurgical BD Achromatic Objectives LMPL50X/0.55 WD7.8MM

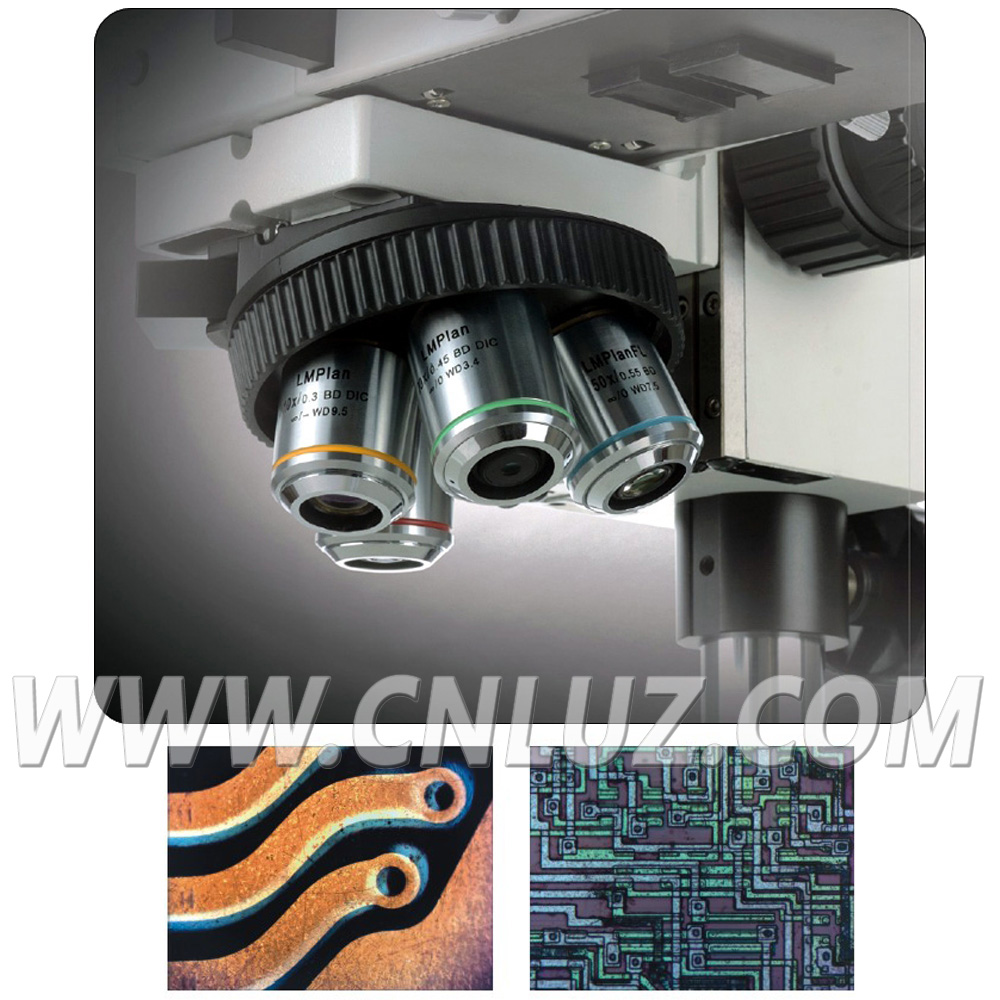

Nosepiece

Intilted quintuple nosepiece for bright field,with DIC slot.

Intilted quintuple nosepiece for bright field or dark field,with DIC slot.

Focusing
Coaxial Coarse & Fine Focusing, Coarse Focus Range 32mm, Fine Focusing Precision 0.002mm,With Tension Adjustable Device to Prevent Gliding

Base

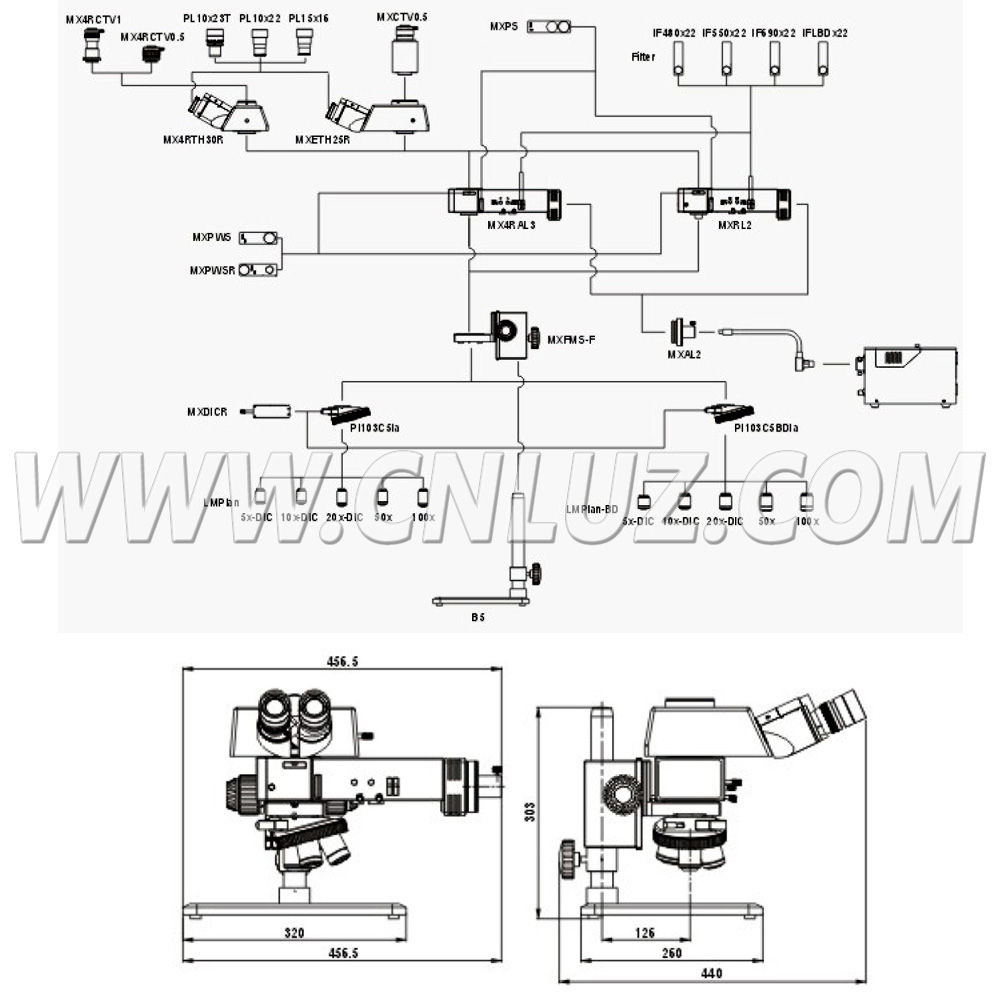

B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm

Microscope body

Coaxial coarse and fine adjustment, coarse adjustment distance 32mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding.

Reflected illumination system

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch of Oblique Illumination

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch Device Between Bright and Dark Field

Illuminator

15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose(550mm/1000mm/1500mm)

Polarizing
Fixed Polarizer Flashboard, Dia.30mm
360° Rotatable Analyser Flashboard
Power
90-240V Wide Voltage, One Way Power Output 90-240V Wide Voltage, One Way Power Output

Item

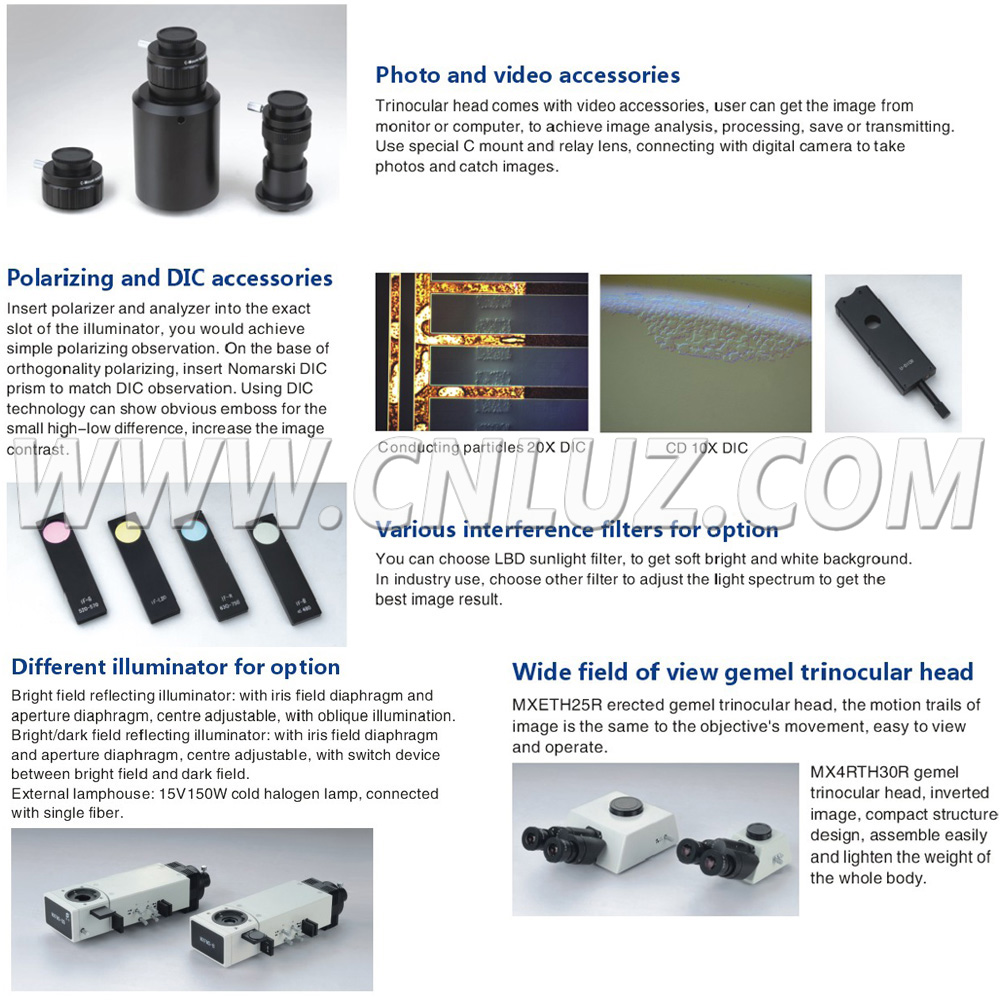

Optional Accessories
Eyepiece


High Eyepoint Plan PL15x/16mm PL15x16
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T
High Eyepoint Plan PL10x/23mm, Diopter Adjustable, PL10x23T
Objective Long Working Distance Infinity Plan Metallurgical Achromatic LMPL100X/0.8 WD2.1MM
Long Working Distance Infinity Plan Metallurgical BD Achromatic LMPL100X/0.8 WD2.1MM
Light Soft Single Optical Fiber 1000mm
Soft Single Optical Fiber 1500mm
DIC DIC Attachment Set
Filter Interface Filter For Reflect illumination Blue, <480nm
Interface Filter For Reflect illumination Green, 520~570nm
Interface Filter For Reflect illumination Red, 630~750nm
Interface Filter For Reflect illumination Netural, for White Balance
Adapter 0.5x C-Mount, for 1/2" CCD, Focus Adjustable
1.0x C-Mount, Focus Adjustable
Digital Camera Adapter with Photo Eyepiece
