Specification
|
MMI.040027-M
|
MMI.040027-B
|
|
Head
|

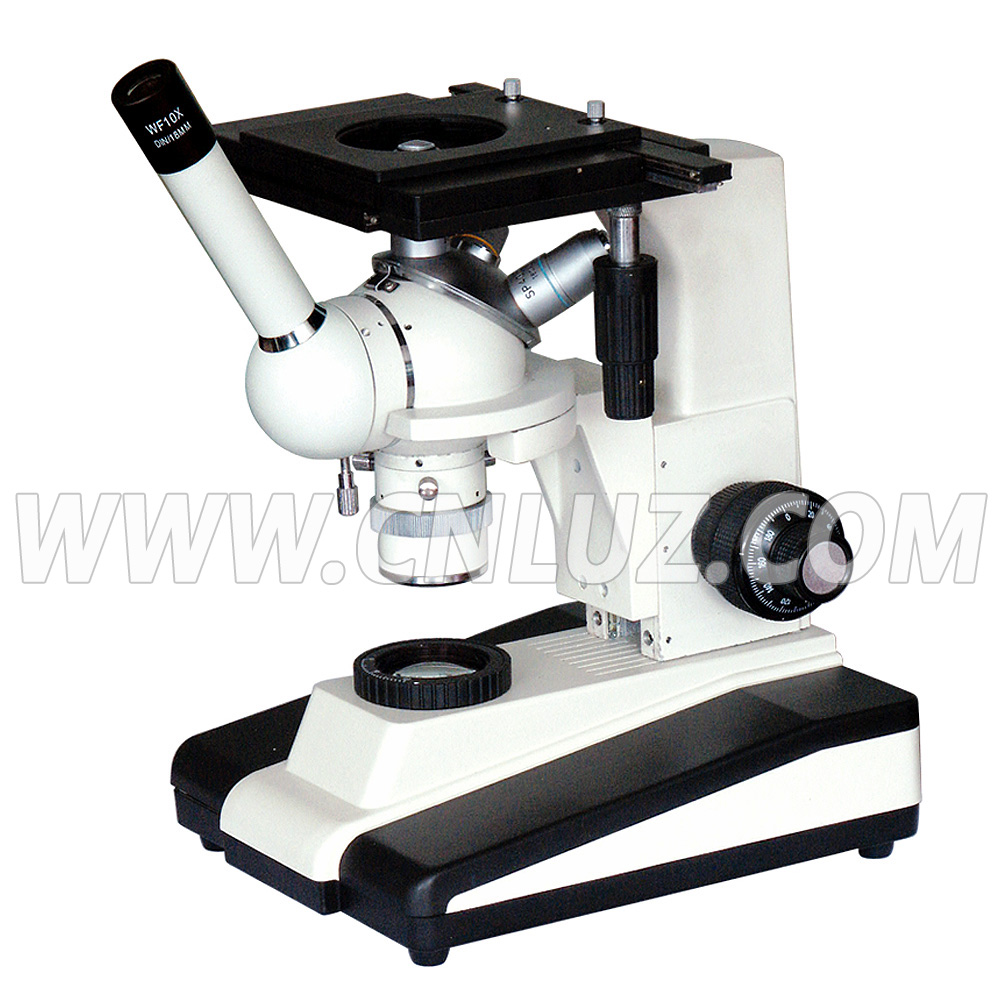

Mocular head
|

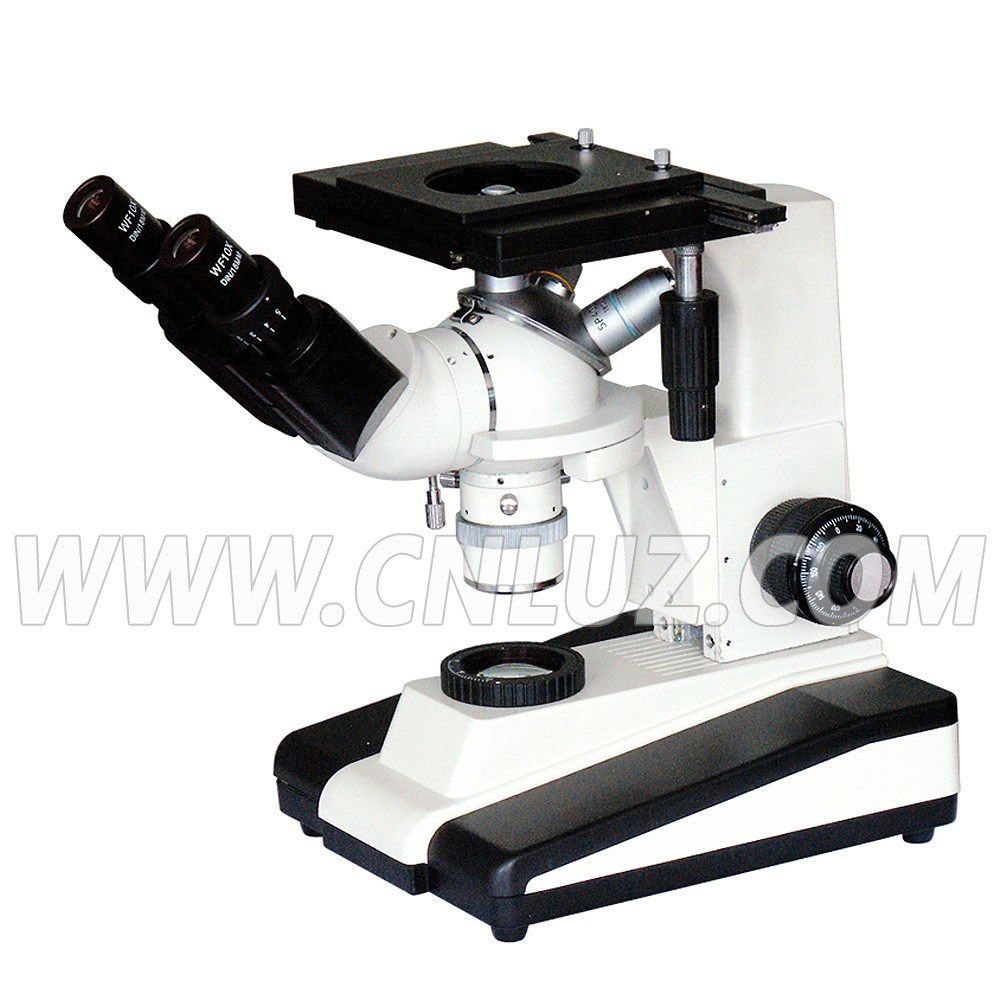

Binocular head
|
|
Magnification
|
100x-1250x | |
|
Eyepiece
|
WF10X/18 | |
|
WF12.5x/15
|
||
|
Objective
|
Achromatic 10X/0.25 Working distance:7.31mm | |
|
Achromatic 100X/oil/1.25 Working distance:0.37mm
|
||
|
Plan Achromatic 40x/0.5 Dry, WD:0.66mm
|
||
|
Mechanicaltube length
|
160mm
|
|
|
Focusing
|
Focusing range:30mm, scale value:0.002mm
|
|
| Coaxial Coarse and Fine Focusing Knobs | ||
|
Stage
|
Double Layers Mechanical Stage with Specimen Clips, Size 175x135mm
|
|
|
Condenser
|
Abbe condenser N.A.1.25 with Iris diaphram
|
|
|
Illumination
|
Halogen Tungsten bulb 6v20w
|
|
