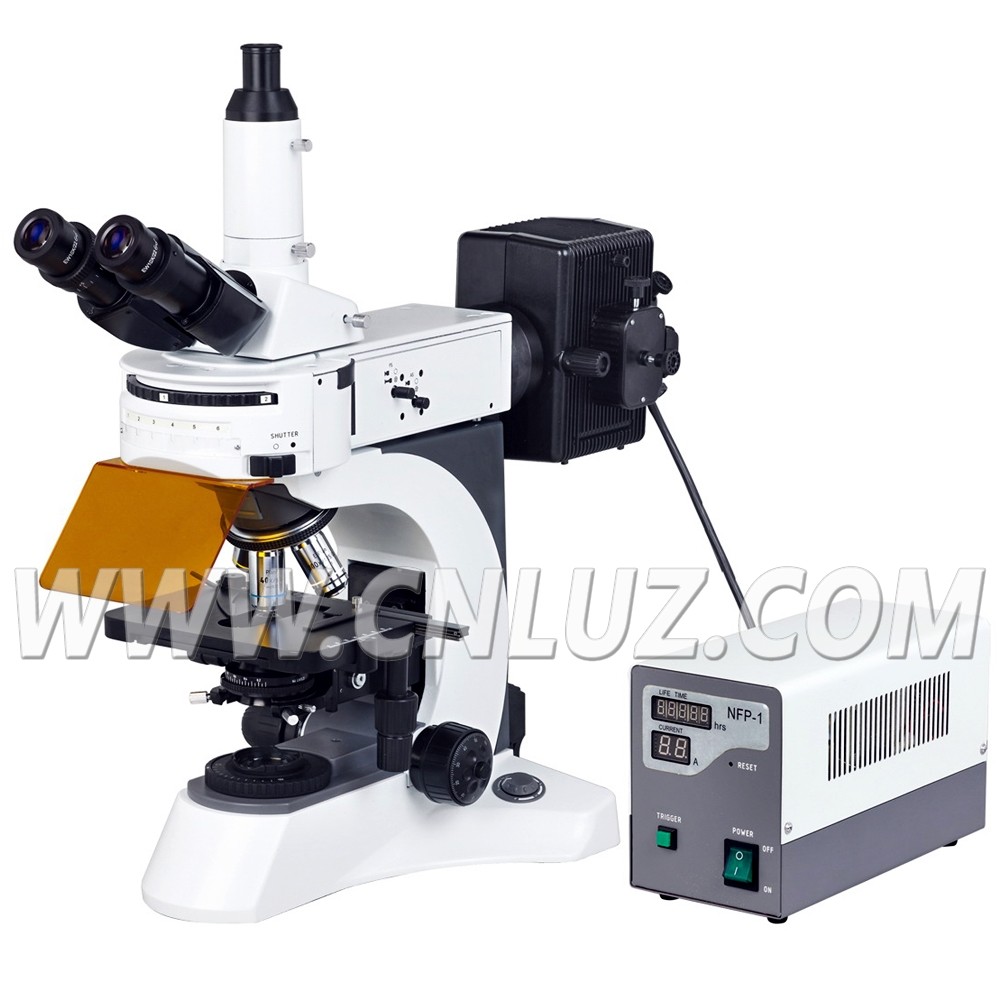

MFU.003057Upright Fluorescent Microscope
  • /usr/575/images/Products/Y/57517742.jpg
  • /usr/575/Picture/Y/10761.jpg
  • /usr/575/Picture/Y/10762.jpg
  • /usr/575/Picture/Y/10763.jpg

Fluorescence Microscope !

  • Infinity Optical System Supply High Quality Optical Image
  • B,G,U,V, B1 Fluroescent Filter Available
  • Excellent Fluorescent Image With High Resolution Fluorescent Objectives
  • Protect The Light Leak With Advanced Lamp Housing

Specification
MFU.003057
Head
Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
Optical System
Infinity optical system
Eyepiece

Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm

Objective
Infinity Plan Achromatic Objectives 4×
Infinity Plan Achromatic Objectives 10×
Infinity Plan Achromatic Objectives 40×
Infinity Plan Achromatic Objectives 100×
Nosepiece
Backward Quintuple Nosepiece
Focusing
Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm
Stage
Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm
Condenser
Swing Condenser N.A.0.95/0.25
Fluorescent System
6 Position Disc Reflected Flourescent System
--Power Supplier Box, 220V/110V Interchangeable, Digital Display
--100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescent Free Oil

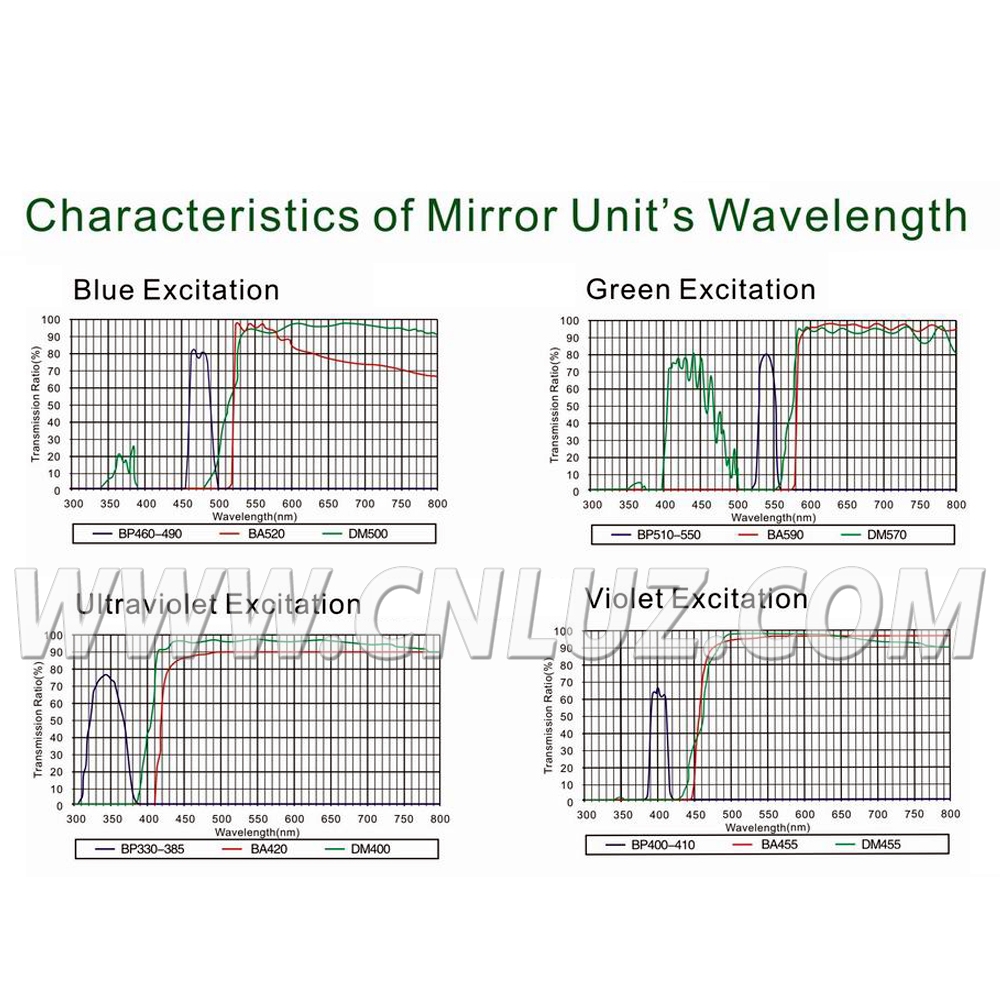

--Blue Excitation Filter, BP460~490, DM500, BA520
--Green Excitation Filter, BP510~550, DM570, BA590
Illumination
External Kohler Illumination, Asperical Collector, Halogen Lamp 6V30W, Brightness Adjustable

Item
Optional Accessories
Objective
Infinity Plan Achromatic Objective 20x

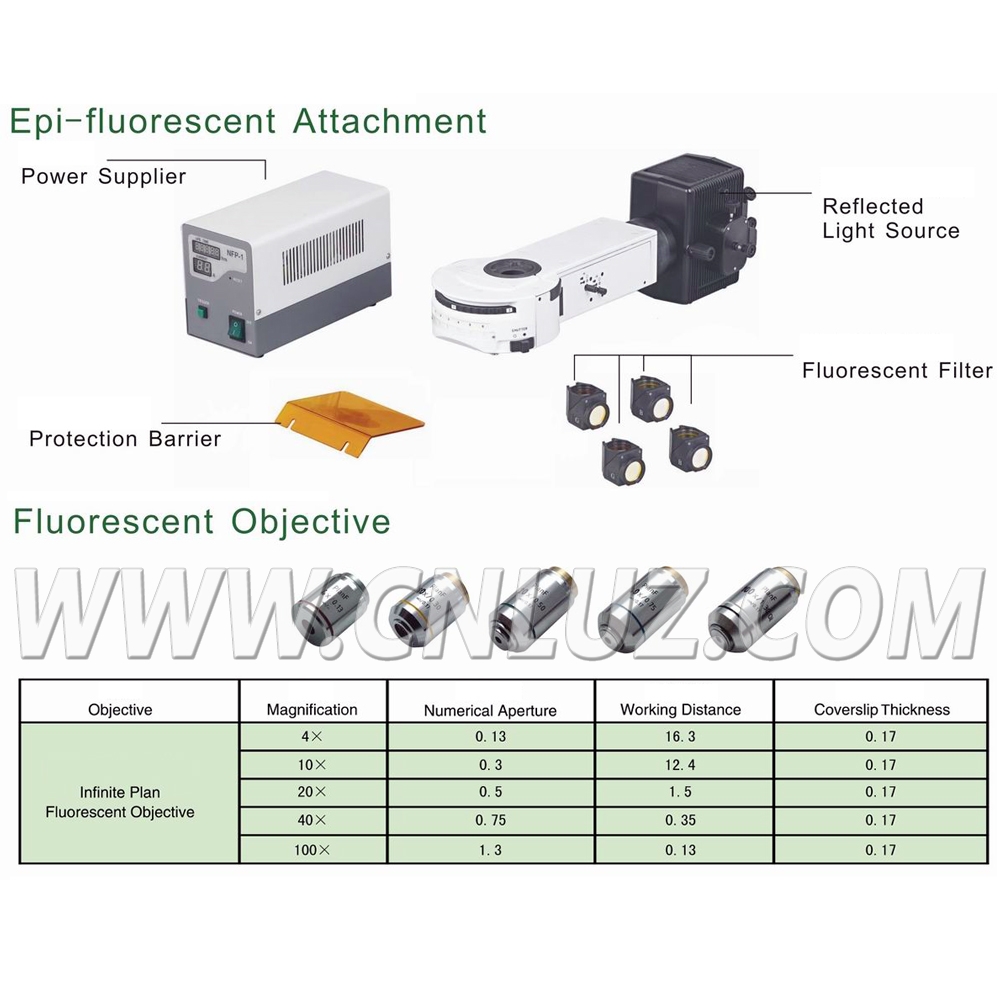

Fluorescent System
Infinity Plan Fluorescent Objective 4x/0.13/0.17, W.D.16.3
Infinity Plan Fluorescent Objective 10x/0.3/0.17, W.D.12.4
Infinity Plan Fluorescent Objective 20x/0.5/0.17,W.D.1.5
Infinity Plan Fluorescent Objective 40x/0.75/0.17,W.D.0.35
Infinity Plan Fluorescent Objective 100x/1.3/0.17,W.D.0.13
Blue Excitation (B1) Filter, BP460~495, DM505, BA510~550
Ultraviolet Excitation Filter, BP330~385, DM400, BA420
Violet Excitation Filter, BP400~410, DM455, BA455
Netural Filter ND6
Netural Filter ND25
Epi-Fluorescent Centering Slide
Adapter
Photo Adapter
C-Mount 1.0x
C-Mount 0.5x
