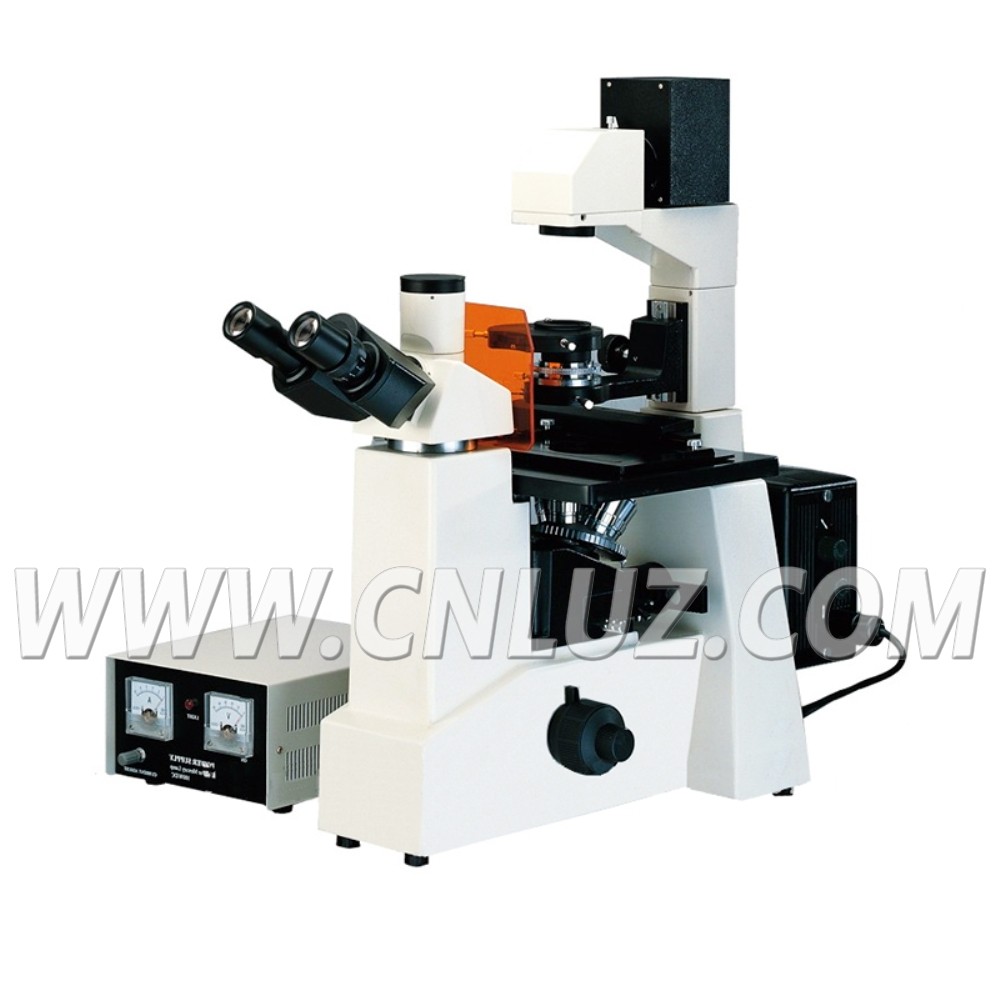

MFI.001001Inverted Fluorescent Microscope
  • /usr/575/images/Products/Y/57517803.jpg
  • /usr/575/Picture/Y/10867.jpg
  • /usr/575/Picture/Y/10868.jpg
  •

Inverted & Reflected Fluorescence Microscopes

MFI.001001 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable operation etc. It's mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

  • With wide field eyepieces, Long distance plan achromatic objectives the field of view is widely and clear.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
  • The mechanical stage movement mechanism can be taken out.
  • Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope
  • Equipped with fluorescence unit, include four group of fluorescence filter.
  • 6V 30W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit
Specification
MFI.001001
Eyepiece
Wide field WF10X (Φ20mm)
Eyepiece Tube
Trinocular (Inclination of 30°, 100% image light for photography capable)
Objective
Long working distance plan achromatic objectives PL L 10X/0.25
Long working distance plan achromatic objectives PL L 25X/0.40
Long working distance plan achromatic objectives PL L 40X/0.60
Long working distance plan achromatic phase contrast objective
PL L 10X/0.25 PHP2
Long working distance plan achromatic phase contrast objective
PL L 25X/0.40 PHP2
Long working distance plan achromatic phase contrast objective
PL L 40X/0.60 PHP2
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece
Quintuple (Ball bearing inner locating)
Stage
Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter
Blue filter
Green filter
Frosted filter
Shelf of Specimen
Match to install |μ68mm or 77mmX29mm culture utensil
Match to install 82mmX57mm culture utensil
Match to install 128mmX85mm 96 holes culture utensil
Reflected Fluorescence System
Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm
Turnplate Phase Contrast Unit
Centering telescope
Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

Item

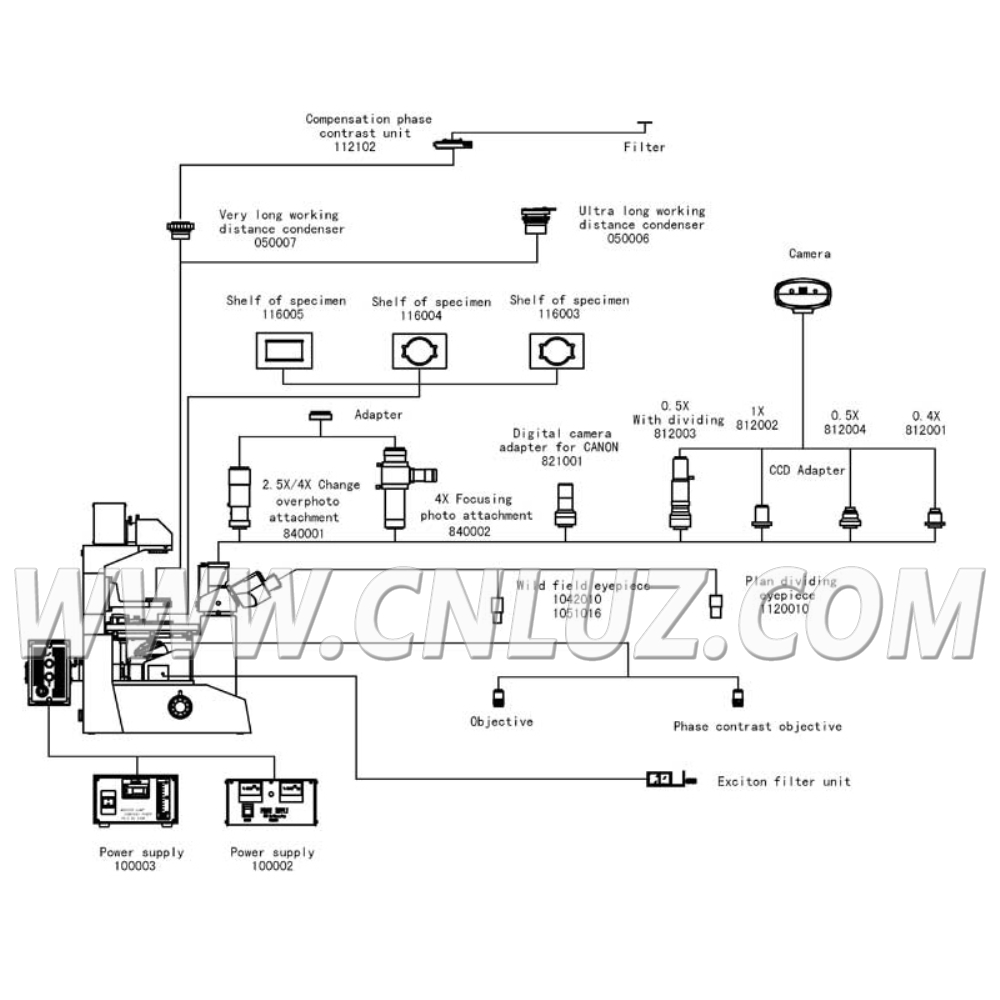

Optional Accessories
Eyepiece
Wide field eyepiece WF16x/11mm
Dividing 10x/20mm, 0.1mm/Div
Condenser
Ultra long working distance,W.D.:70mm
Filter
Yellow filter
Power Supply
100W fluorescence power supply (Wide voltage range, constant power , calculagraph)
Phase Contrast
Compensation phase contrast set
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Polarizing
Simple Polarization Set
DC Adapter
Digital camera adapter CANON (A610,A620,A630,A640)
Photo Adapter

2.5X/4X Change over photograph adapter with 10X viewing eyepiece
4X Focusing photograph adapter
MD Adapter
PK Adapter
