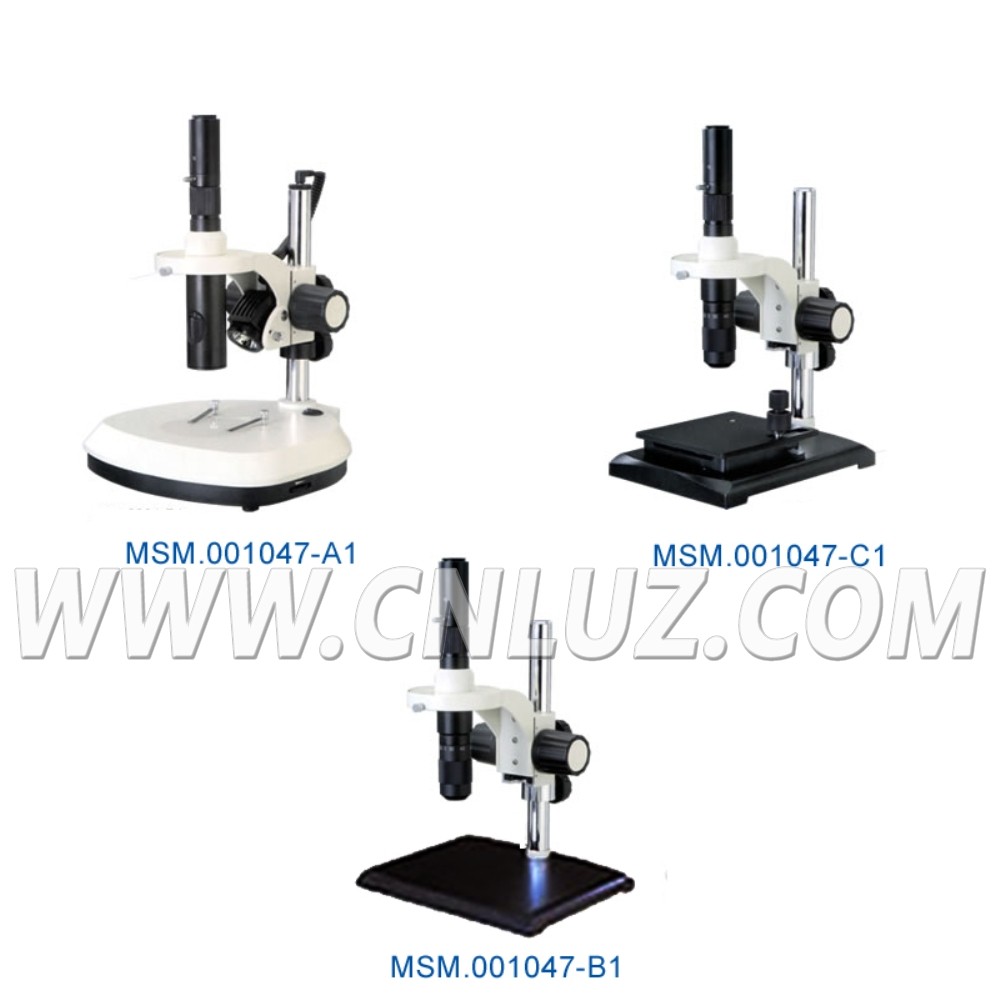

MSM.001047Monocular Stereo Microscope, 7X~45X
  • /usr/575/images/Products/Y/57517777.jpg
  • /usr/575/Picture/Y/10812.jpg
  • /usr/575/Picture/Y/10813.jpg
  • /usr/575/Picture/Y/10814.jpg

The series monocular zoom microscopes, have long working distance, clear and smooth image quality, convenience operation, it can be used for inspection of electro-industry product line and printed circuit board.

  • Objective range of zoom magnification 0.7X~4.5X.
  • Standard C mount design, connecting the camera directly.
  • Digital & video camera, CCD camera and photography eyepiece can be chosen.
  • Equipped with outside rotating optical body.
Specification

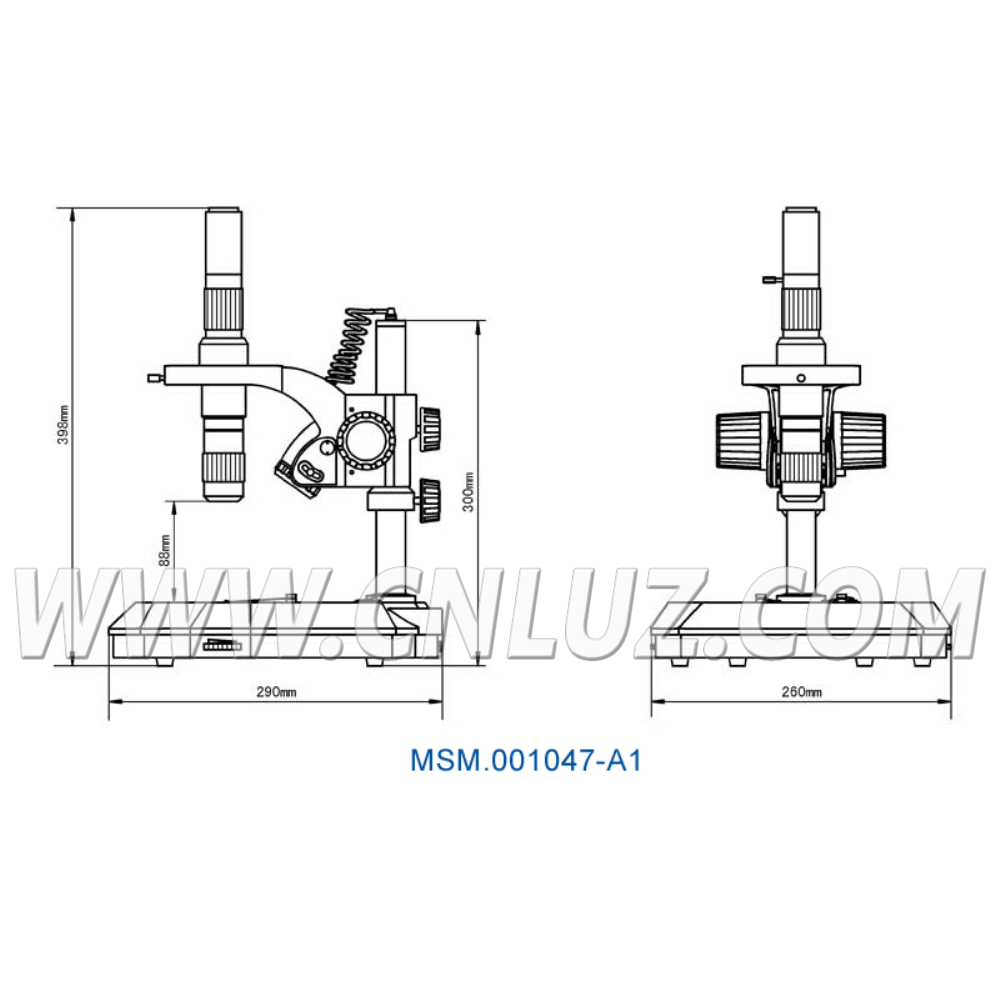

MSM.001047-A1

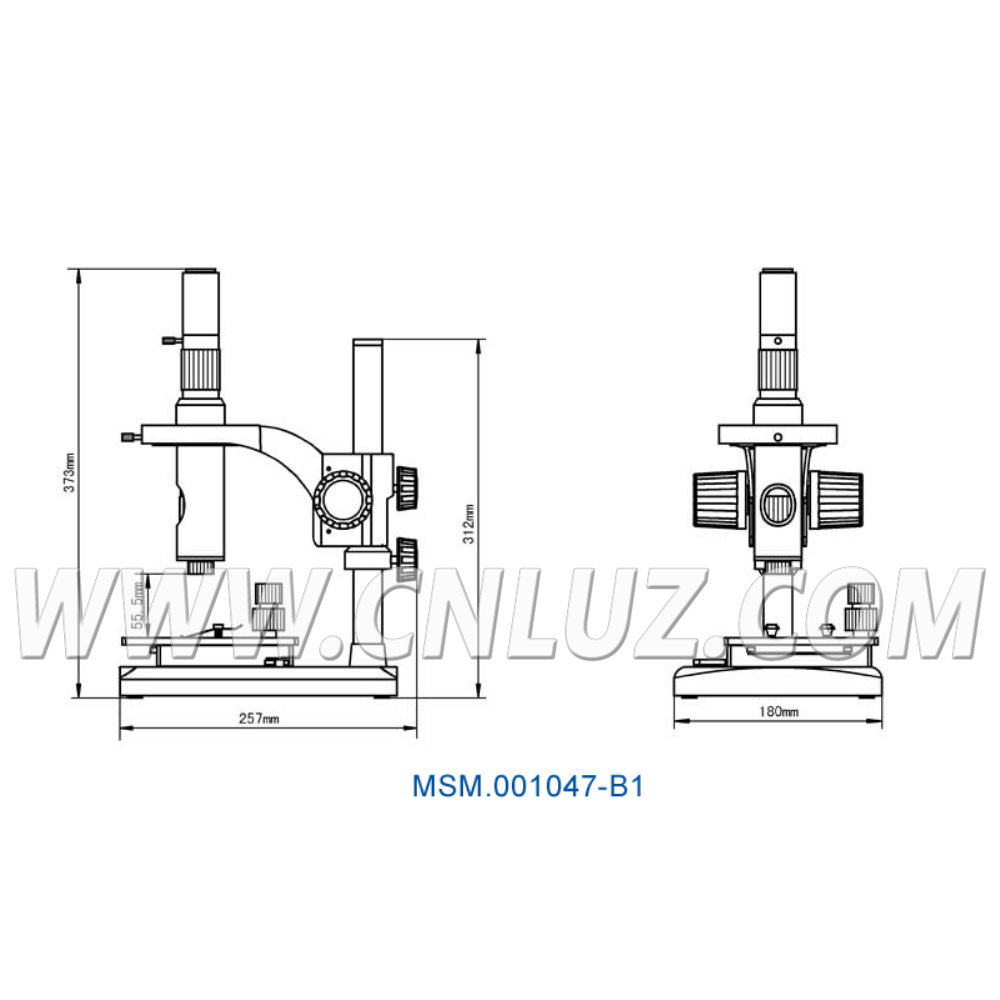

MSM.001047-B1

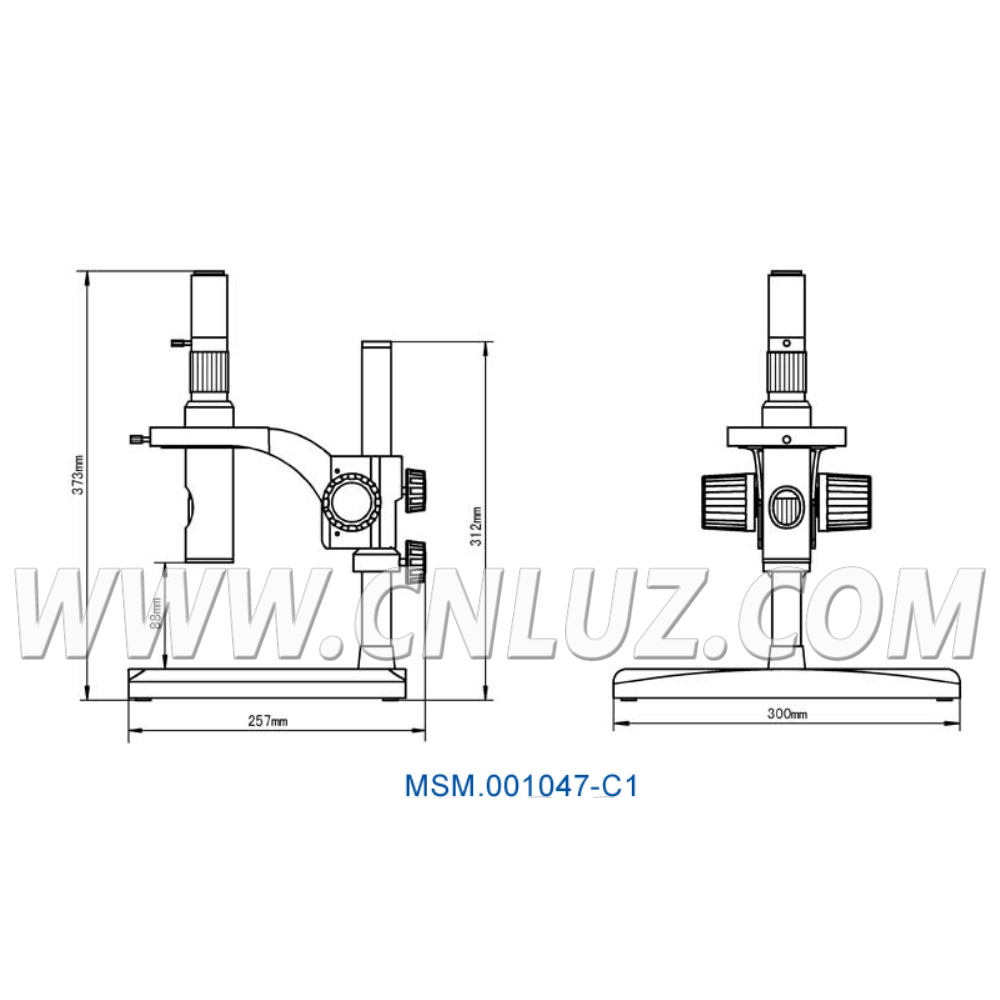

MSM.001047-C1
CCD Adapter
1X
Objectives
Objectives range of zoom magnification 0.7X~4.5X
Working Distance
88mm
Stand & Base

Base size 260x290x55mm,
up/down move range 10mm<=h<215mm

Base size 300x240x25mm,
up/down move range 10mm<=h<265mm

Base size 240x180x25mm,
up/down move range 10mm<=h<240mm, stage move range 42x42mm

Illumination
Up:12V10W halogen lamp, reflector cup, brightness adjustable
Bottom:12V10W halogen lamp, brightness adjustable
No light source
No light source

Item
Optional Accessories
Eyepiece
Divisional wide field eyepiece 10X/18mm 0.1mm/Div
Divisional wide field eyepiece 10X/20mm 0.1mm/Div
Eyepiece Adapter
For divisional wide field eyepiece10X/20mm
Additional Objective




0.3x W.D.249mm
0.5x W.D.152mm
0.75x W.D.113mm
1.5x W.D.55.5mm
2.0x W.D.40.7mm
Illumination
8W/90~265V, annular LED illumination W.D. 35~200mm
CCD Adapter
0.35x
0.5
