MSD.001051Step Zoom Stereo Microscope, 10X/20X/40X
  • /usr/575/images/Products/Y/57517778.jpg
  • /usr/575/Picture/Y/10815.jpg
  • /usr/575/Picture/Y/10816.jpg
  • /usr/575/Picture/Y/10817.jpg

The series stereo microscopes is a kind of positive image microscope; it have long working distance, clear and smooth image quality, wide field, convenience operation etc. It can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.

  • Eyepiece is Wide Field 20mm, including 2 objectives
  • Optical head 45° inclination, 360° rotatable, interpupillary distance 55~75mm, eyepiece tube diopter adjustable

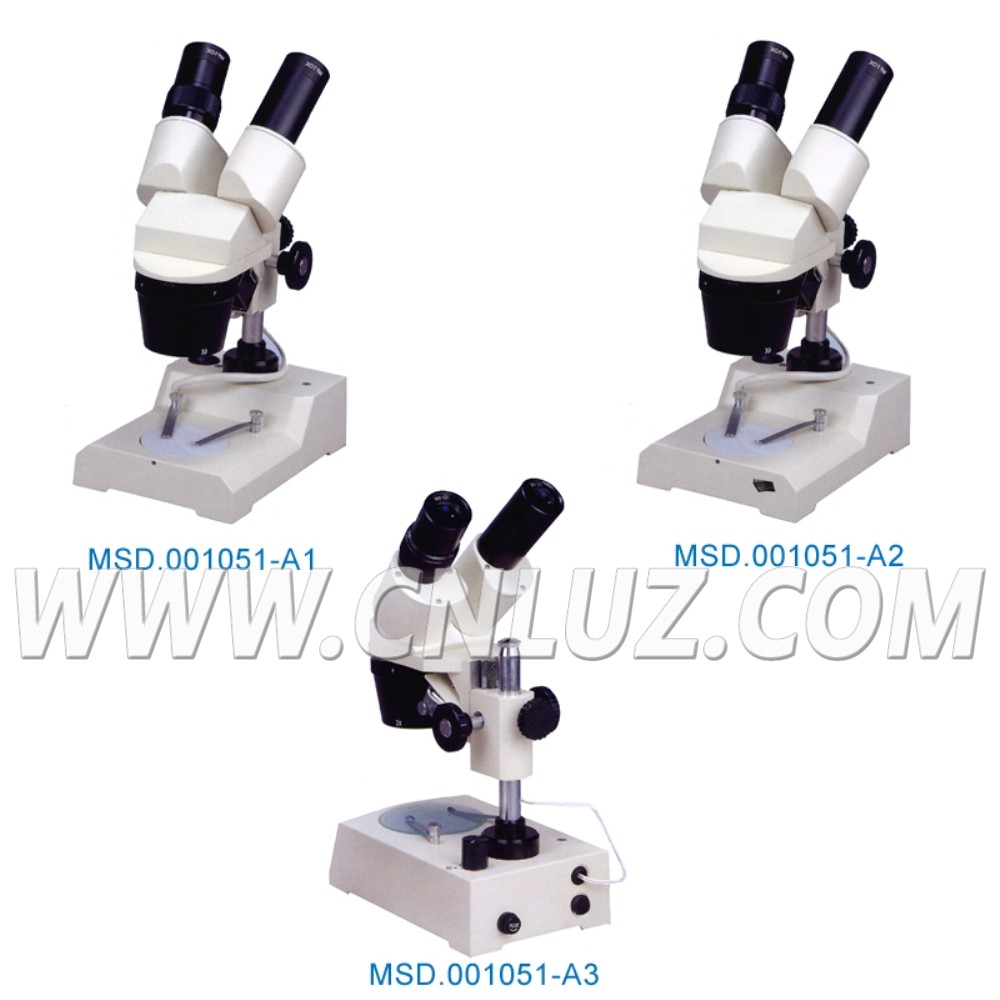

  • A1and B1 are equipped with no light source
  • A2 and B2 are equipped with up light source
  • A3 and B3 are equipped with up & bottom light source

MSD.001051-
Specification
A1
B1
A2
B2
A3
B3
Eyepiece
WF10x/20mm
Objectives
1x/2x
2x/4x
1x/2x
2x/4x
1x/2x
2x/4x
Total Magnification
10x/20x
20x/40x
10x/20x
20x/40x
10x/20x
20x/40x
Visual Field
20,10mm
10,5mm
20,10mm
10,5mm
20,10mm
10,5mm
Working Distance
50mm
Stand
Pole Stand
Focusing Range
50mm
Base
Size 170x120x21mm
Size 170x120x54mm
Size 190x120x55mm
Illumination
No light source
Up light source 6V8W halogen lamp
Up & bottom light source 6V8W halogen lamp

Item
Optional Accessories
Eyepiece
Divisional wide field eyepiece 10X/20mm 0.1mm/Div
