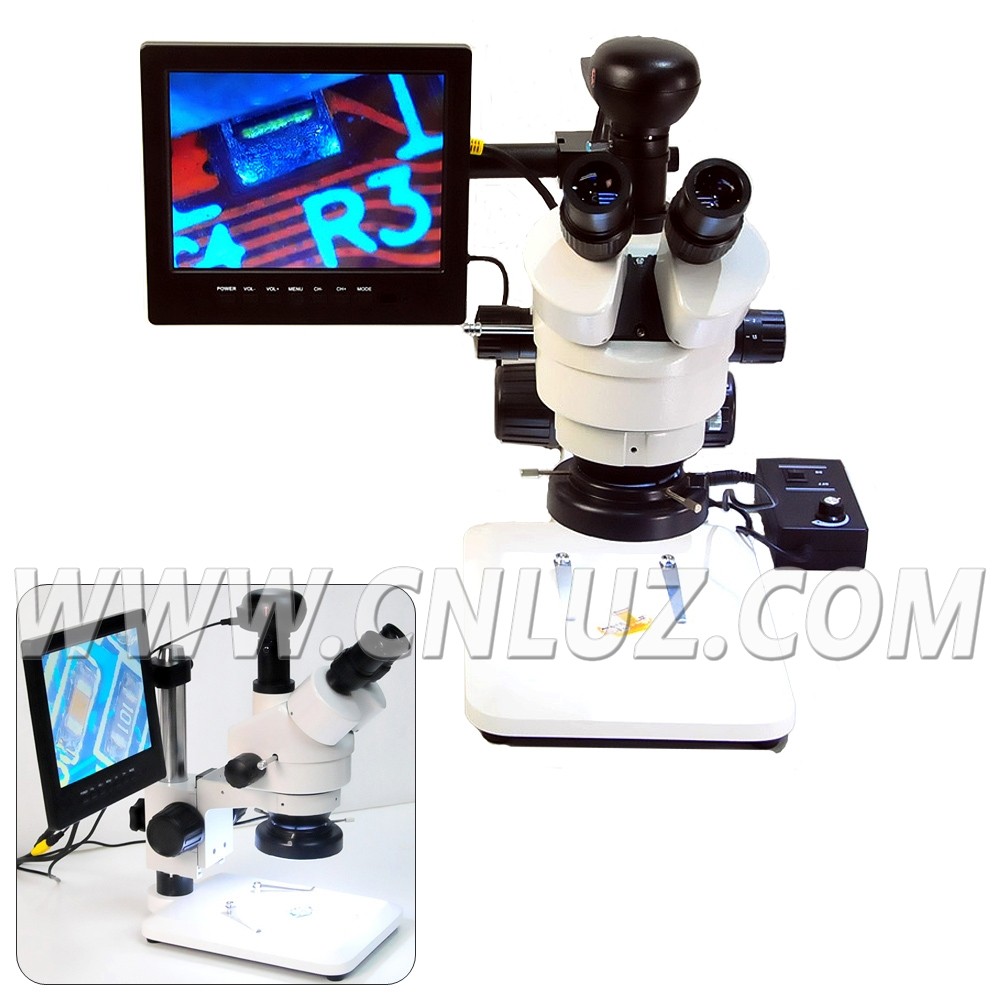

MLS.023001 8"LCD Stereo Zoom Microscope, 7X-45X
  • /usr/575/images/Products/Y/57517888.jpg
  • /usr/575/Picture/Y/10970.jpg
  •
  •

Stereo Microscope for PCB or SMT observation.

  • Magnification is continuously adjustable,7X~45X.
  • 8” LCD.
  • Compact structure.
Specification
MLS.023001
LCD 8", Visual range: 162mm*121.5 mm
Sensor Sony CCD,AV,700line,HD
Total Magnification 7-45x
Zoom Ratio
1:6.5
Eyepiece WF10X/20
Head
Trinocular Head, 45 ° inclined,interpupillary 55-75mm
Objective 0.7X-4.5X
Field of View φ5mm-φ30mm
Diopter
Binocular diopter adjustment range ±6

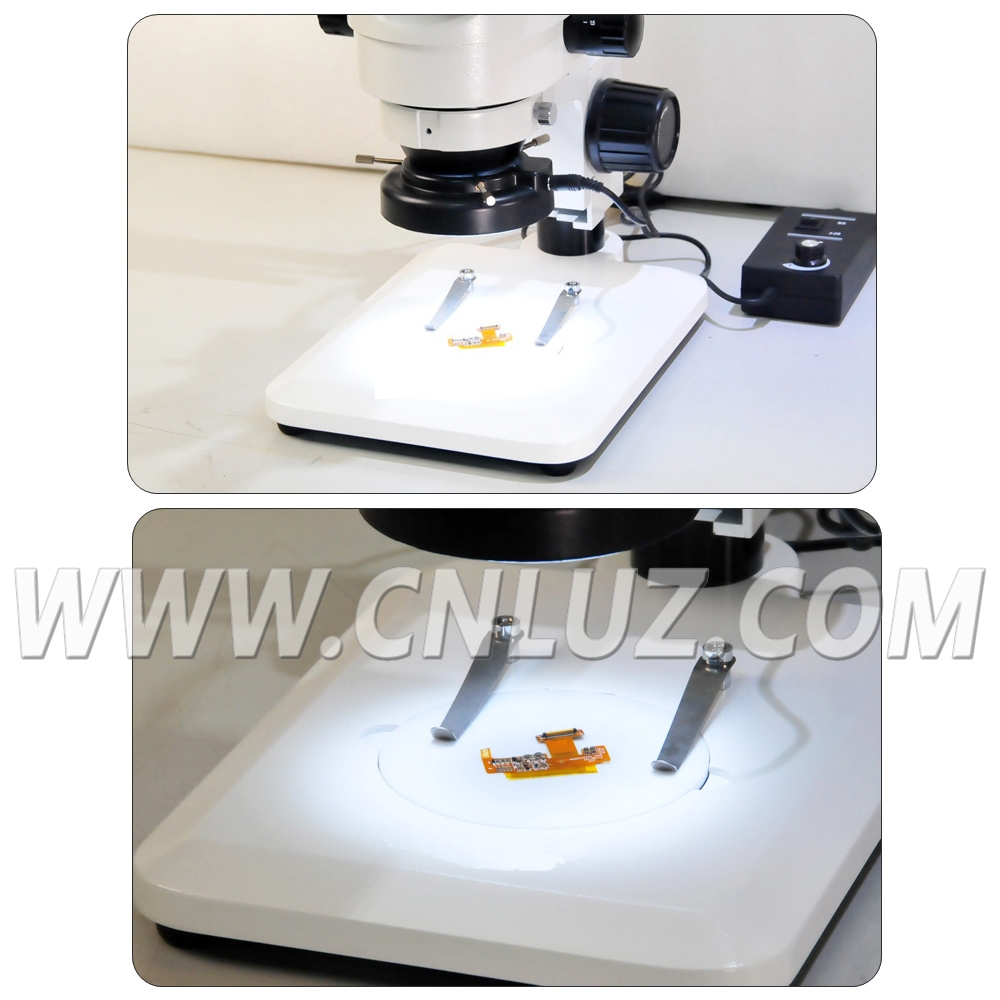

Stage vertical arm stage,280mm×180mm
Working Distance 30mm-160mm
