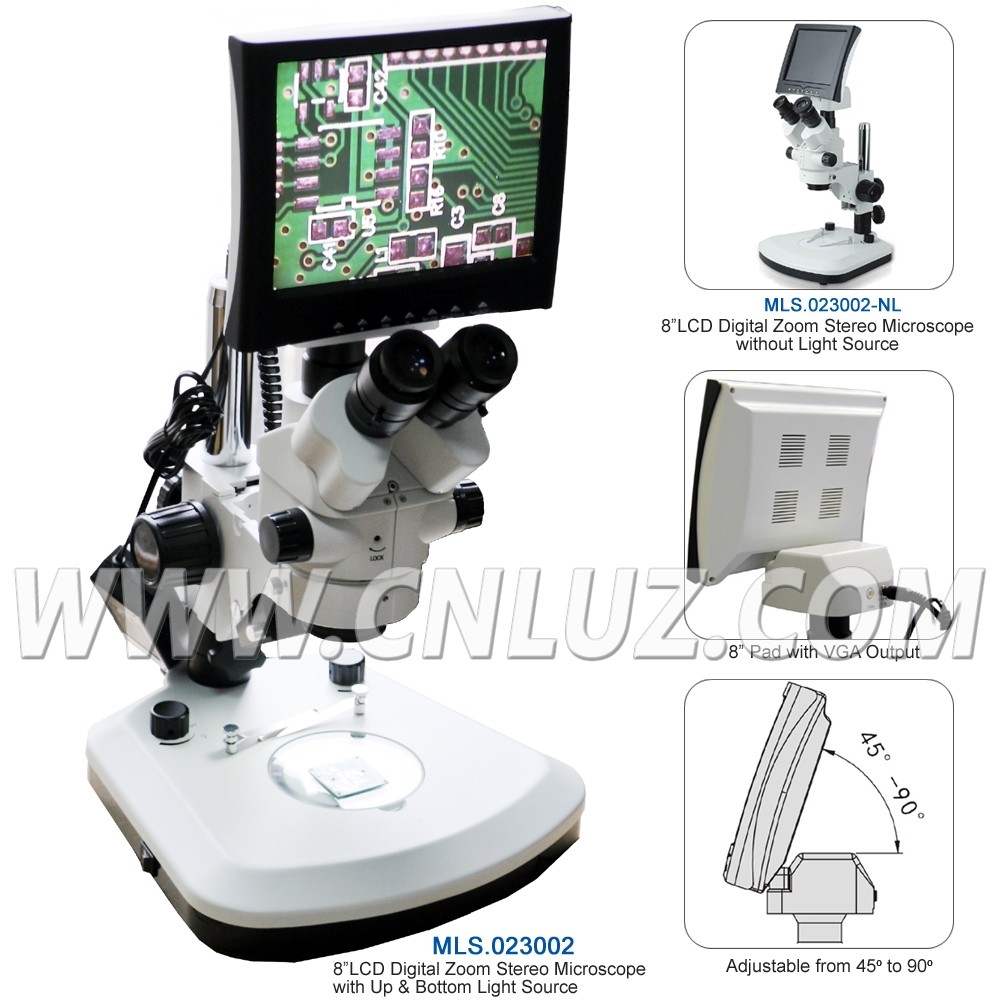

MLS.023002Stereo LCD Microscope,8"LCD, 7X~45X
  • /usr/575/images/Products/Y/57517890.jpg
  • /usr/575/Picture/Y/11037.jpg
  • /usr/575/Picture/Y/11038.jpg
  •

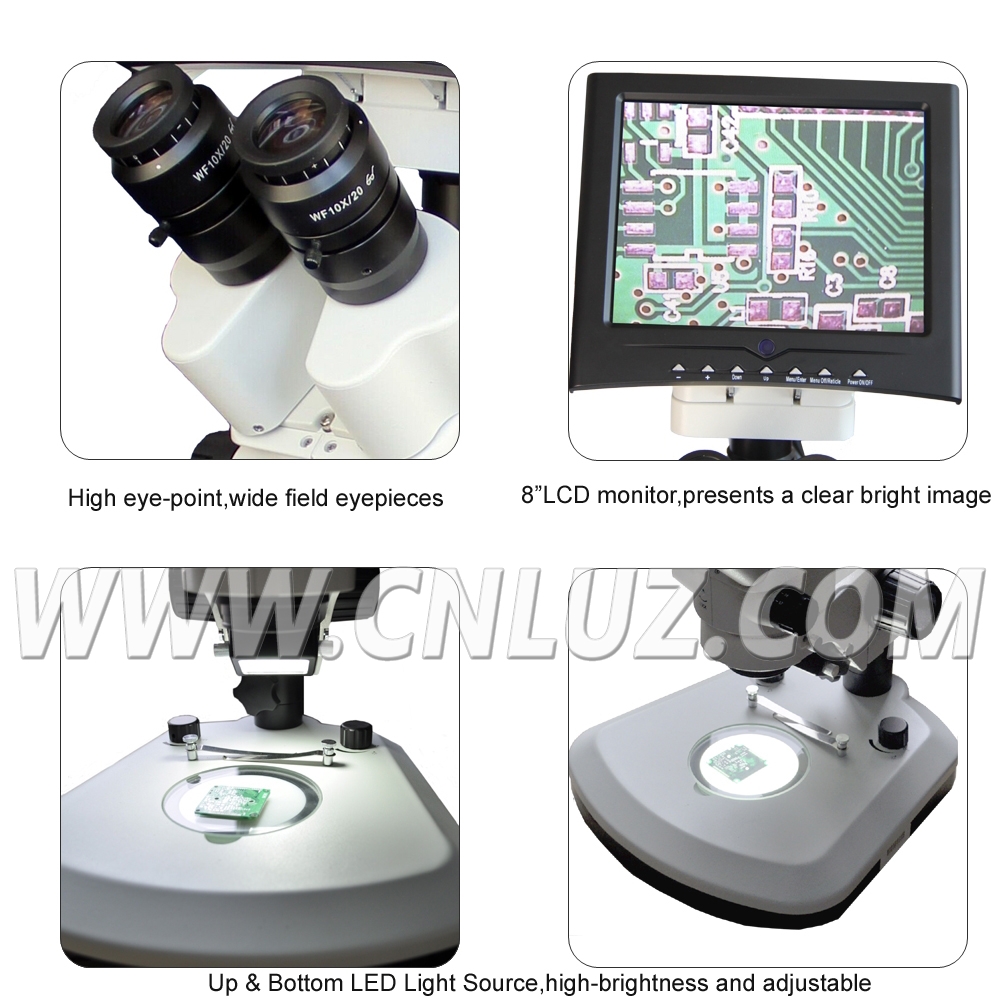

  • 8” LCD Digital Stereo Microscope, for PCB or SMT observation.
  • Total Optical Magnification 7~45x
  • 8" LCD Monitor and CCD Camera All in One Design
  • Video Output Supported

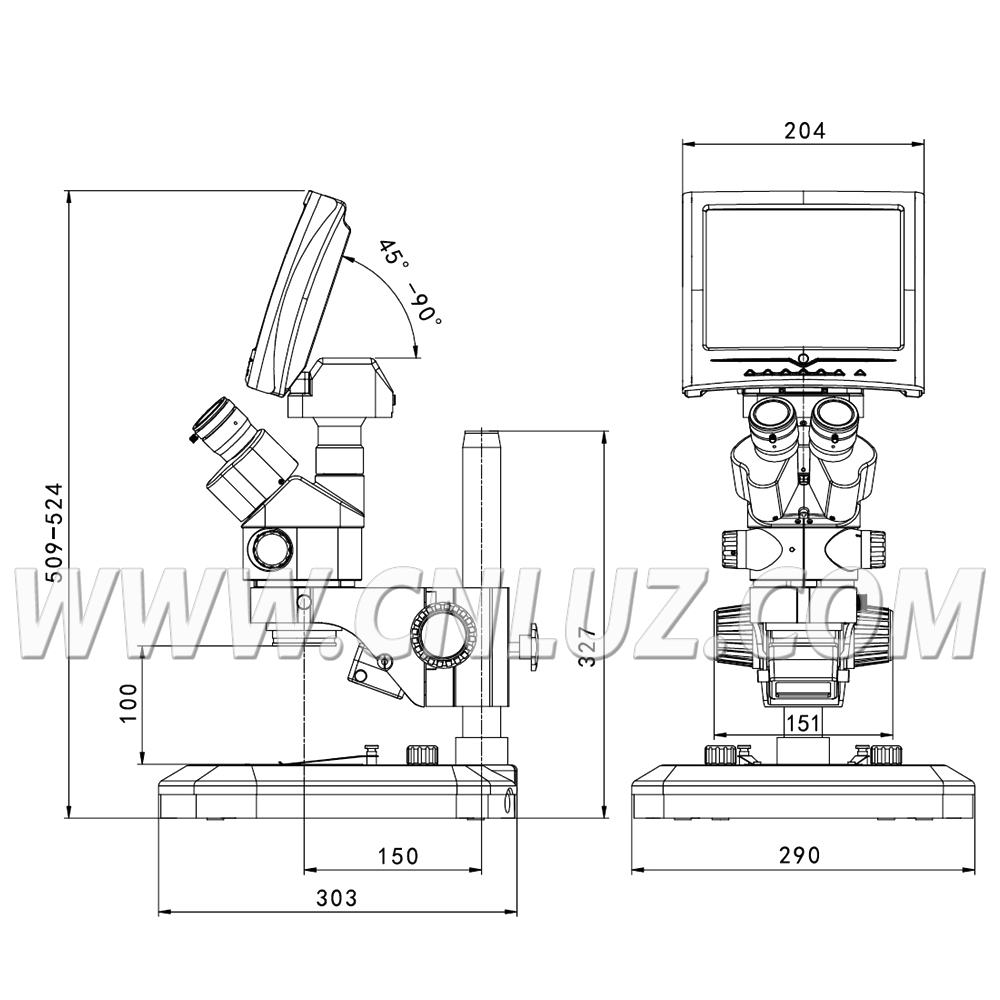

  • LCD Screen 45~90° Incline Adjustable
  • Big Fan Pole Stand, Up & Bottom Light Source
Specification
MLS.023002
MLS.023002-NL
Stereo Microscope
Illumination
Up & Bottom LED Light Source,brightness adjustable
No Light Source
Magnification 7~45x, Up to 3.5~180x with Auxiliary Lens
Eyepiece
WF10x/20mm, Both with Eye-cup
Head
Trinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Zoom Range
0.7~4.5x
Zoom Ratio
1:6.5
Working Distance
100mm, With Standard 1x Lens
Field of View
1~95.2mm
Stand
Big Fan Pole Stand, With Focusing Knob
The Same Parts
8“ LCD Monitor
Display Dimension
800x600
800x480
640x480
Pixel Space Between
0.213mm
0.253mm
0.253mm
Visual Angle
170/170(H/V)
Horizontal
30~61KHz
Vertical
60~75Hz
Color
16,777,216 colors
Highest Mode
1024*768@75Hz
Sync.video Singal
H/V Separate, TTL,P or N 0.7V p-p@75 ohm
Color System
PAL/NTSC 4.43/NTSC 3.58/SECAM
Sound System
BG/DK/I/M
Video Input
1.0Vp-p@75 ohm
Audio Input
500mVrms
Power Supply
DC 12V
Power Comsumption
9W
11W
11W
Energy-saving
<1.0W
Operating Temperature
10℃~40℃（50°F~104°F）
Operating Humidity
10%~80%
Storage Temperature
-25~ -45℃（-13° F ~113°F）
Storage Humidity
5%~95%
Digital Camera
Sensor Dimension
1/3"
Horizontal Resolution
520 TV Line
Scanning System
768(H)X576(V)
White Balance
Switch between Auto & Manual
Back Light Compensation
Auto
Singnal-to-Noise
More than 46db
Gamma Characteristics
0.45
Minimum Illumination
3.1 lux
Input Voltage
12V DC (9V-14V)
Power Consumption
Less than 1.85w
