This is an ideal portable metallurgical scope for industry inspection.Used in oil and gas pipelines, bearings, foundry industry, boilers and other industries, is indispensable microstructure and surface inspection tool.
Coaxial LED lighting can work continuously for 48 hours
Being intersected polarizing device
Magnetic two-dimensional stage, ease of use
Specification
MMP.019002
Total Magnification
100X~500X
Eyepiece
WF10X/FN18, Dia 23.2
LWD Plan Objective (no cover glass)
PLL 50X/0.65 WD=0.5mm
PLL 10X/0.25 WD=7.3mm
Adapter
C-mount adapter (for connecting C-mount cameras)
Mechanical Tube Length
160mm
Focusing
Coaxial coarse/fine focus system, range:36mm
Polarizing Kits
Polarizer and Analyzer
Light Source
Coaxial illumination, build-in LED rechargeable, brightness adjustable
Magnet Stage

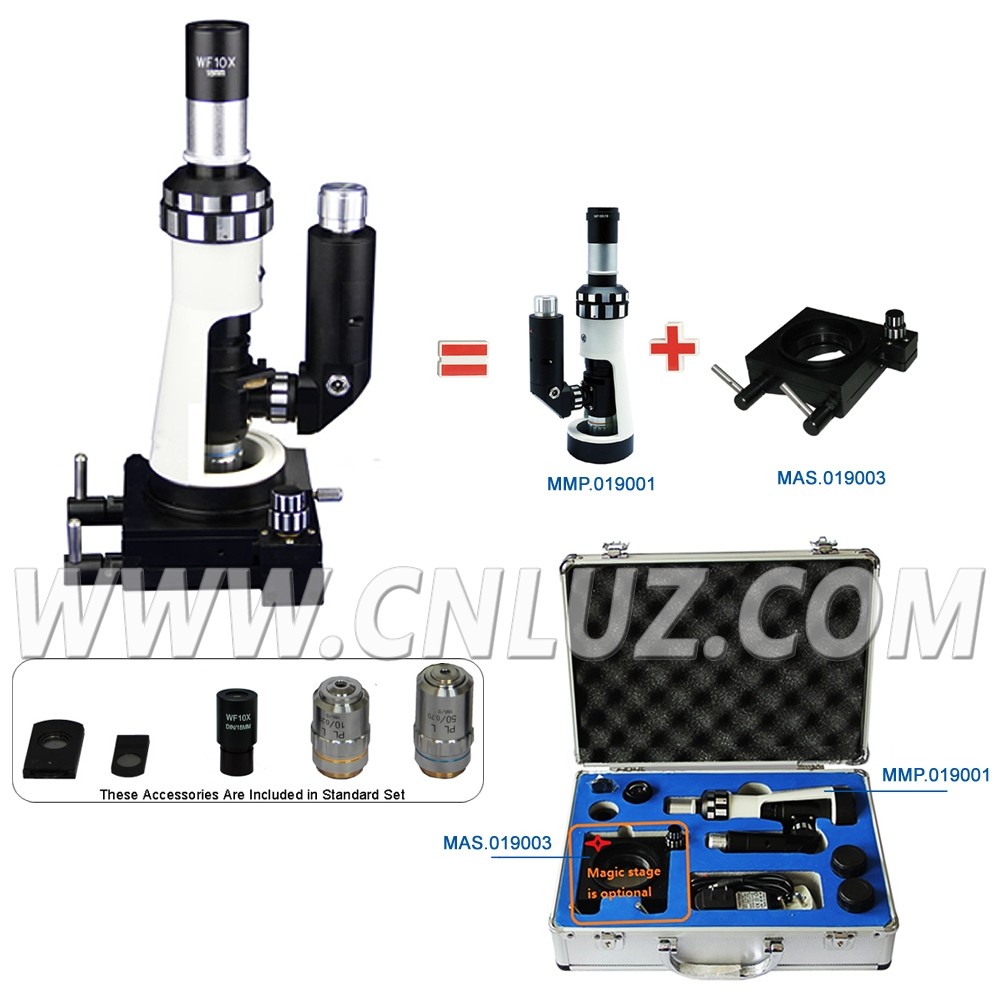

Magic stage, which can be sticked on metal samples, make observation easier Model No: MAS.019003
