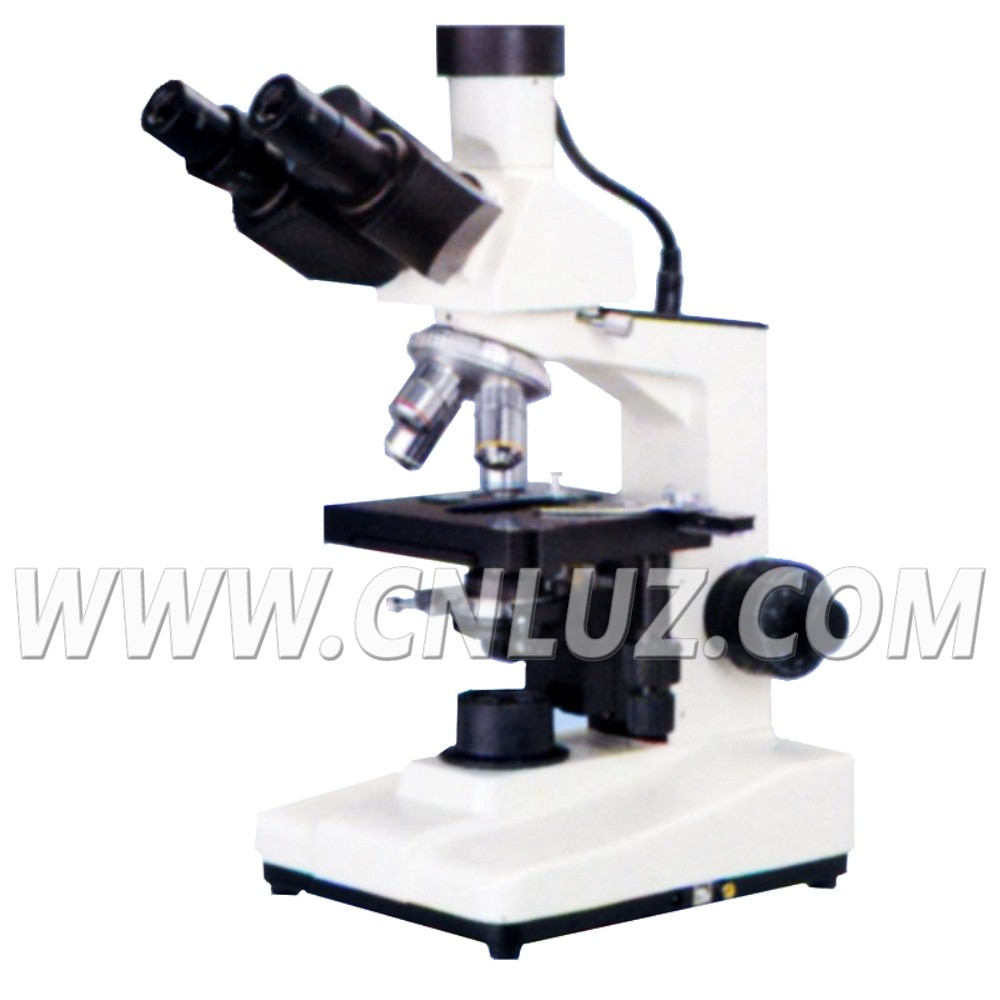

MDB.001063Biological Digital Microscope, 0.3M CCD, USB2.0, 40X~1000X
  • /usr/575/images/Products/Y/57517805.jpg
  • /usr/575/Picture/Y/10872.jpg
  • /usr/575/Picture/Y/10873.jpg
  •

MDB.001063 digital biological microscopes, is equipped with equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

  • Built-in color CCD sensor, with Video and USB output
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • 6V 20W halogen lamp with brightness control
Specification
MDB.001063
Digital Head
Built-in color 1/3" CCD sensor
USB2.0 Output, resolution 720X576(PAL) 720X480(NTSC). auto white balance
System requirement: Windows 2000/ Windows XP/Windows Vista.
VIDEO Output, resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL auto white balance
Accessories: Video cable, USB cable, Driver CD, User guide. Power supply adapter:12V DC
Eyepiece
WF10X/18mm
Objectives
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System
Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Stage
Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
Condenser
Abbe condenser N.A.=1.25, rack & pinion adjustable
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V20W halogen lamp, brightness adjustable

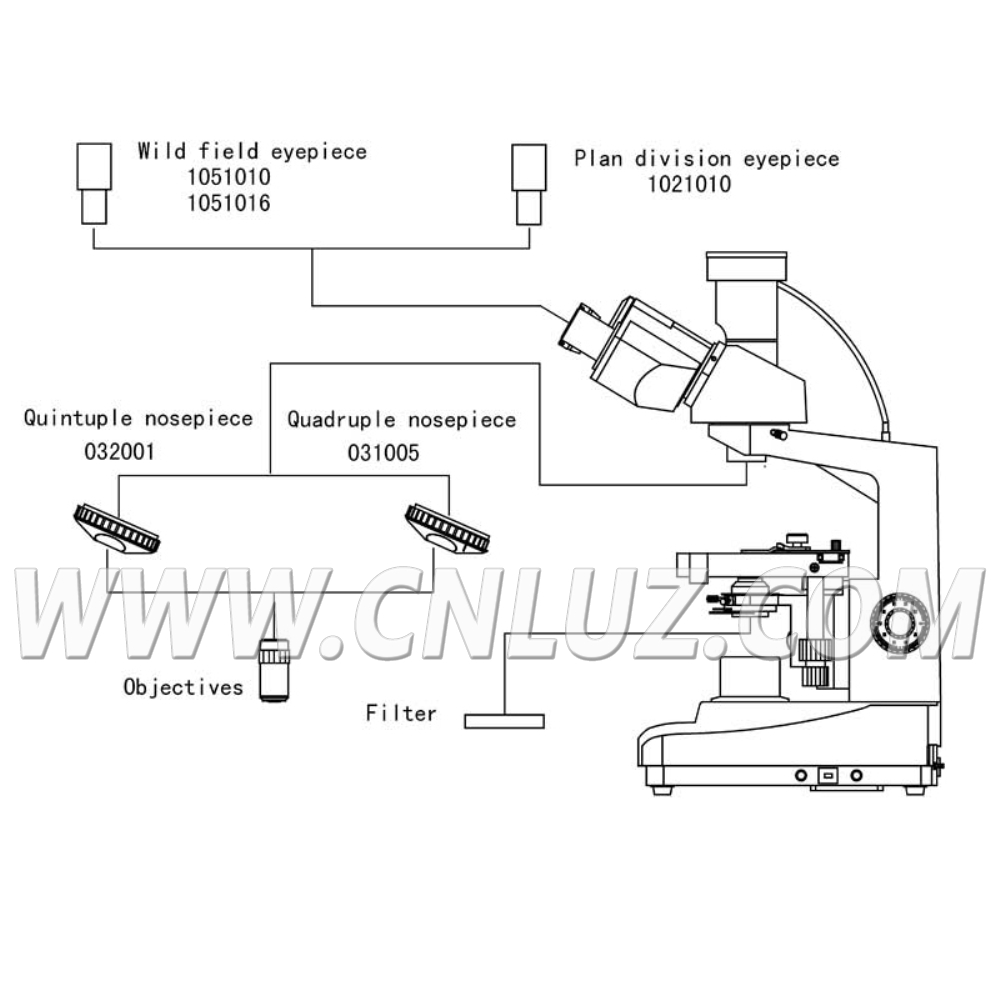

Item
Optional Accessories
Eyepiece
WF16x/11mm
Dividing 10x/18mm, 0.1mm/Div
Objective
Plan achromatic 4X/0.10
Plan achromatic 10X/0.25
Plan achromatic 40X/0.65(Spring)
Plan achromatic 100X/1.25(Spring, oil)
Nosepiece
Quintuple(Frontward ball bearing inner locating)
Filter

Yellow filter
Green filter
