MDB.001059Biological Digital Microscope, 0.4M CCD, USB2.0, 40X~1000X

MDB.001059 digital biological microscopes, is equipped with achromatic objectives and wide field eyepieces and digital trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instruments in medical treatment, teaching demonstration and scientific research.

Built-in color CMOS sensor and USB output
Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm
6V 20W halogen lamp with brightness control

Specification	MDB.001059
Digital Head	Built-in color 1/3" CCD sensor USB2.0 Output, resolution 720X576(PAL) 720X480(NTSC). auto white balance System requirement: Windows 2000/ Windows XP/Windows Vista. VIDEO Output, resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL auto white balance Accessories: Video cable, USB cable, Driver CD, User guide. Power supply adapter:12V DC
Eyepiece	WF10X/18mm
Objectives	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Focus System	Coaxial coarse/fine focus, minimum division of fine focusing: 2μm.
Nosepiece	Quadruple (Frontward ball bearing inner locating)
Stage	Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
Condenser	Abbe condenser N.A.=1.25, rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V20W halogen lamp, brightness adjustable

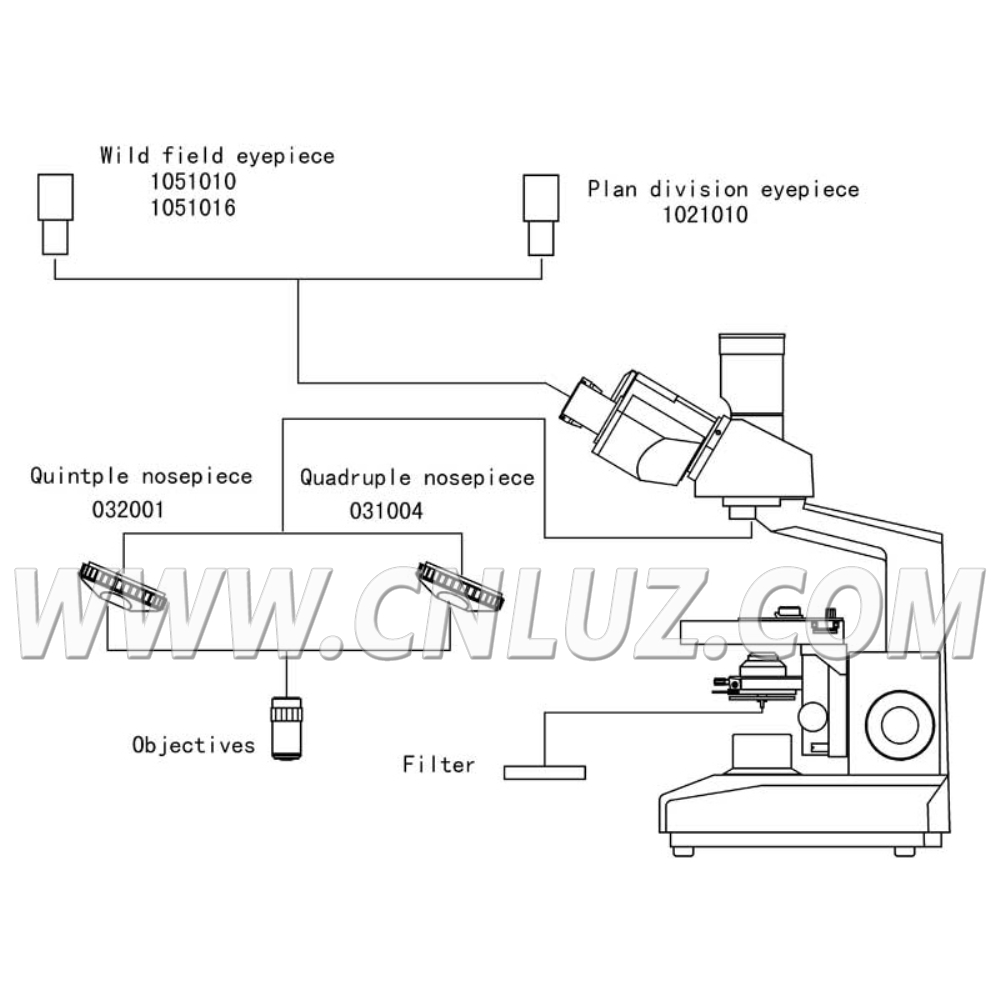

Item	Optional Accessories
Eyepiece	WF16x/11mm
Eyepiece	Dividing 10x/18mm, 0.1mm/Div
Objective	Semi-Plan achromatic 4X/0.10
	Semi-Plan achromatic 10X/0.25
	Semi-Plan achromatic 20X/0.40
	Semi-Plan achromatic 40X/0.65(Spring)
	Semi-Plan achromatic 100X/1.25(Spring, oil)
Nosepiece	Quintuple(Frontward ball bearing inner locating)
Digital Head	Trinocular head, built-in color 1/2" CMOS, dynamic resolution 1600X1200 (UXGA) , USB2.0, system requirement: Windows 2000 @SP4 / Windows XP @SP2/ Windows vista
Filter	Yellow filter
Filter	Green filter
