MDB.001058Biological Digital Microscope, CMOS 380TV Lines, 100X
  • /usr/575/images/Products/Y/57517810.jpg
  • /usr/575/Picture/Y/10880.jpg
  • /usr/575/Picture/Y/10881.jpg
  •

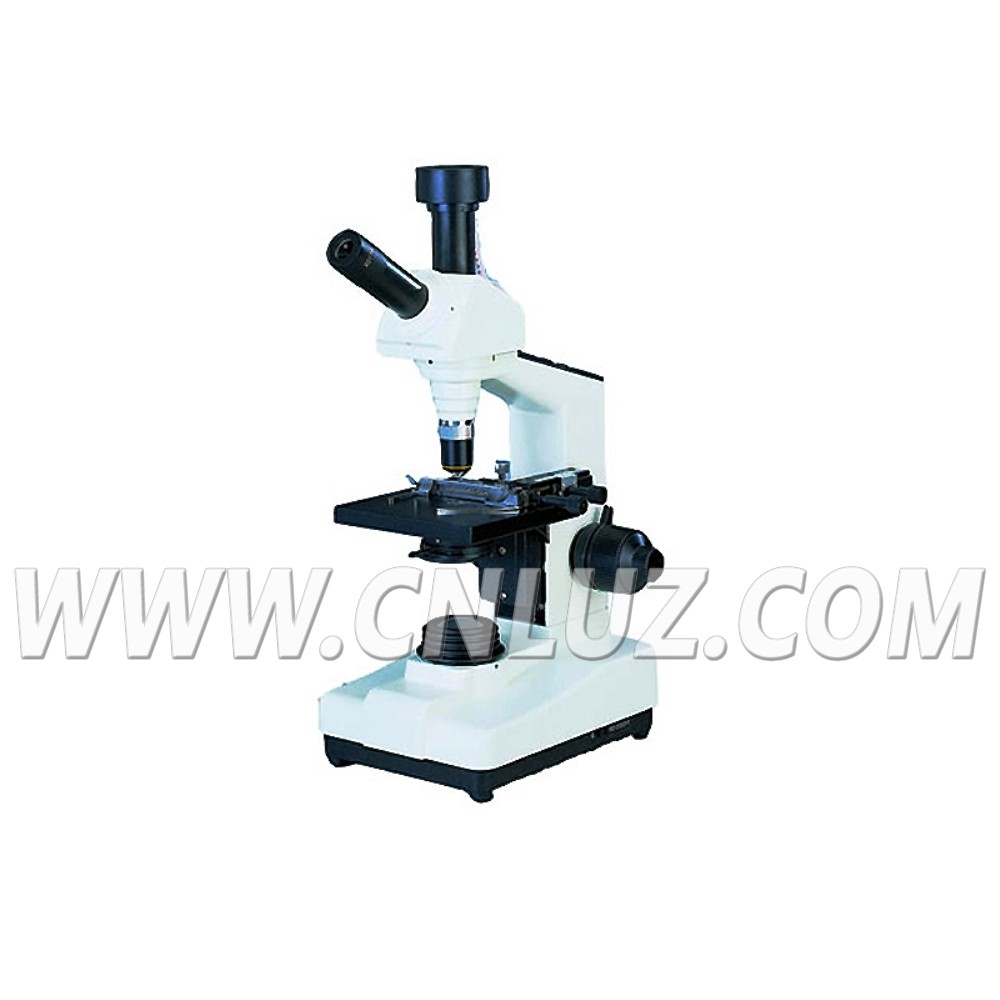

MDB.001058 Video Biological Microscope is equipped with achromatic and wide field eyepiece, built-in color CMOS sensor, can obtain clear image through optical system and video camera system. The new-style LED collector has lower power and longevity. It is mainly applied to observe and display dry blood cell and acarus. It is the ideal instrument for life field, such as health care, beauty culture etc.

  • Built-in color CMOS sensor and video output
  • Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm
  • High brightness white LED lamp with brightness control
Specification
MDB.001058
Video Head
Built-in clear color 1/3”CMOS sensor, horizontal resolution: 380TV lines, White Balance: Automatic, Color.
Eyepiece
WF10X/18mm
Objectives
Achromatic 10X/0.25
Focus System
Coaxial coarse/fine focus minimum division of fine focusing: 4μm
Stage
Fixed stage with slide moving holder moving range:70X30mm
Video Cable
Standard Video cable, length:1.8m
Light source
LED base without rechargeable batteries, input: 220V/110V (optional)

Item

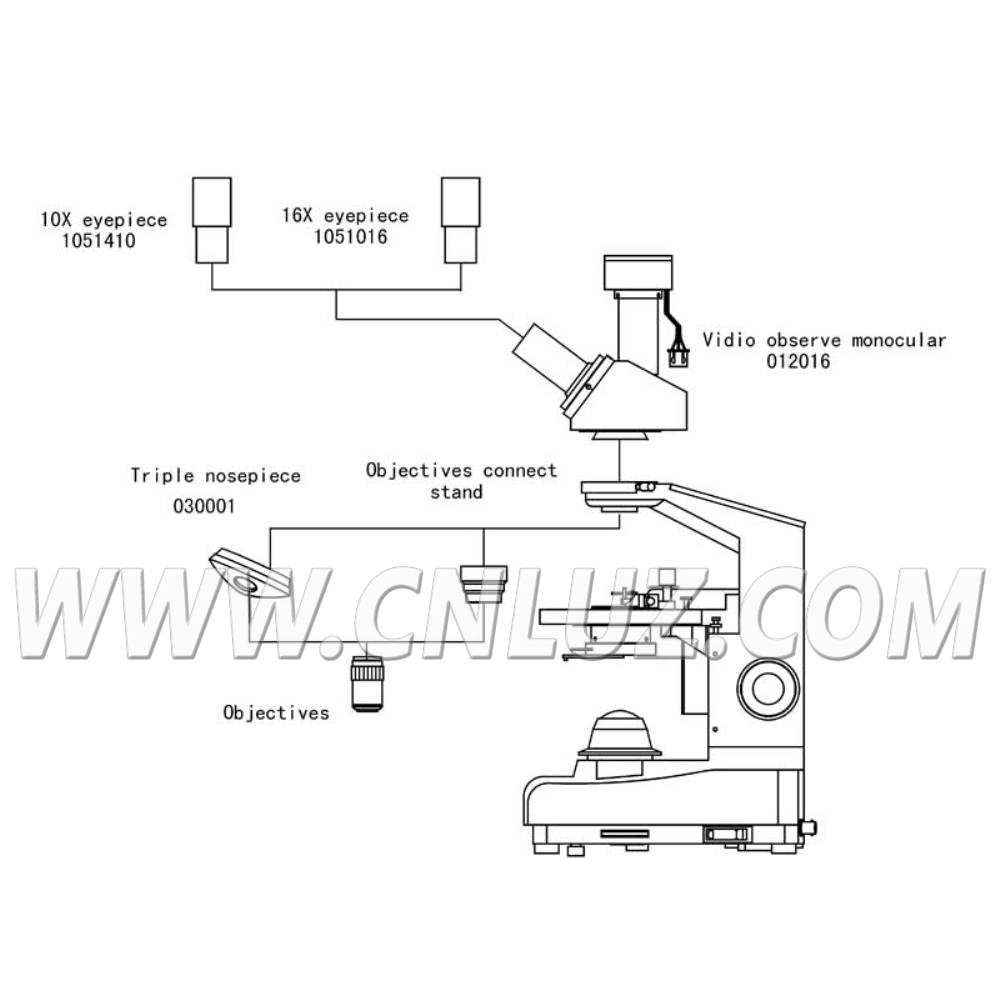

Optional Accessories
Eyepiece
WF16x/11mm
Objective
Achromatic 4X/0.10
Achromatic 20X/0.40
Achromatic 40X/0.65(Spring)
Nosepiece
Triple (Frontward ball bearing outer locating)
