Biological Digital Microscope,CCD 580TV Lines, 40X~1000X

Home > Products > Digital Microscope > Digital Biological Microscope

MDB.001055Biological Digital Microscope,CCD 580TV Lines, 40X~1000X

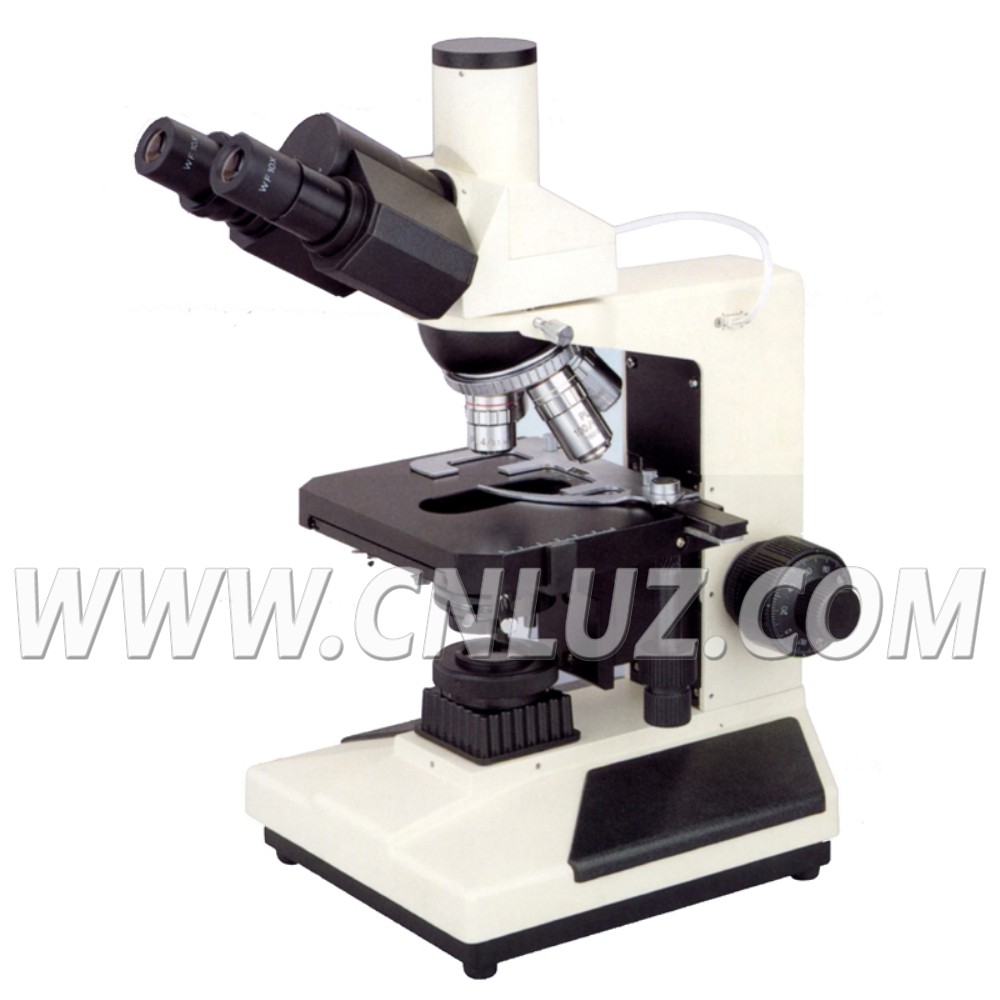

MDB.001055 Video Biological Microscope is equipped with plan achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation.It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Built-in CCD sensor and video output
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Kohler illumination model, the illumination is 6V 20W halogen lamp with brightness control

Specification	MDB.001055
Video Head	Built-in clear color 1/3”CCD sensor, horizontal resolution: 520TV lines White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional). Power supply adapter:12V DC.
Eyepiece	WF10X/20mm
Objectives	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Focus System	Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Video Cable	Standard Video cable, length:1.8m
Stage	Double layer mechanical,size:160X140mm, Move range: 75X50mm
Condenser	Abbe condenser N.A.=1.25, rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	With field diagram for halogen lamp
Light source	6V20W halogen lamp, brightness adjustable, Kohler illumination
Attachment	Video cable, length:1.8M

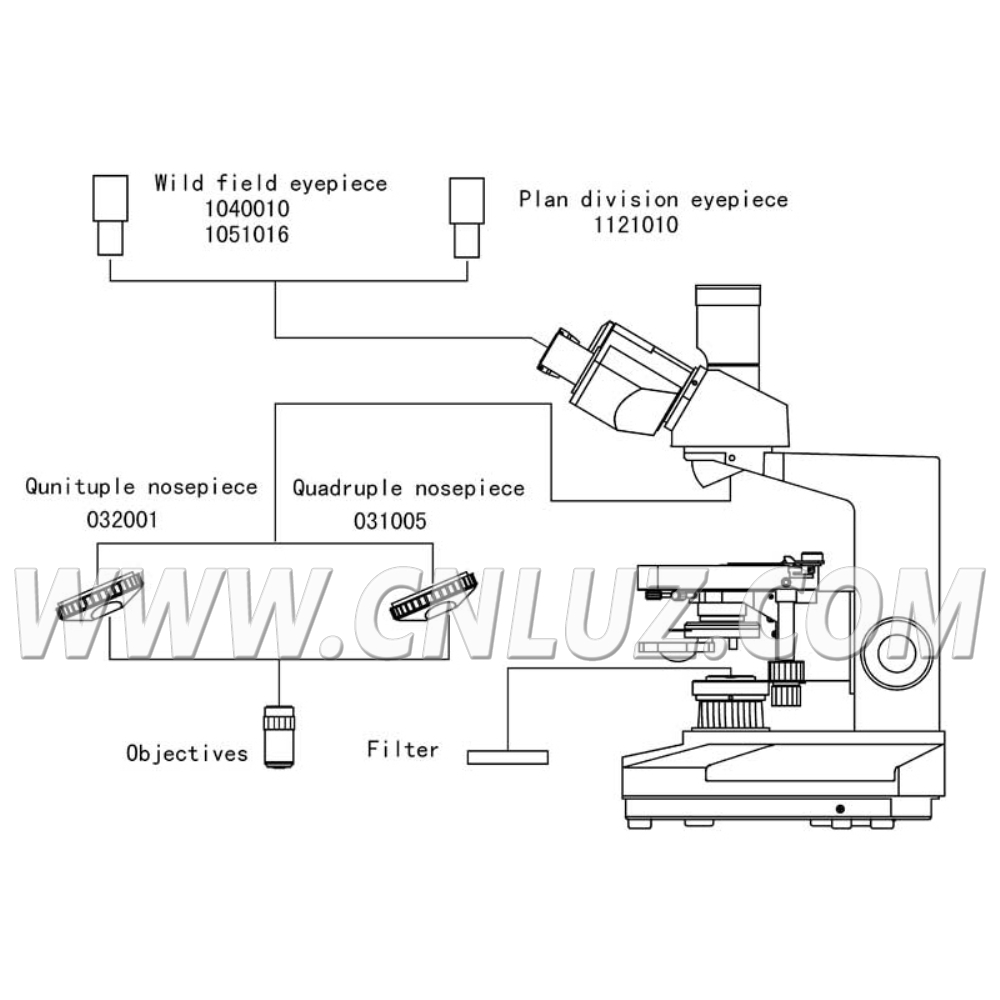

Item	Optional Accessories
Eyepiece	Dividing 10x/18mm, 0.1mm/Div
Eyepiece	WF16x/11mm
Objective	Plan 20X/0.40
Nosepiece	Quintuple(Backward ball bearing inner locating)
Filter	Green filter
Filter	Yellow filter
