Biological Digital Microscope, 5M CMOS, 40X~1000X_IHPVISION:Microscope,Digital Vision

MDB.023010Biological Digital Microscope, 5M CMOS, 40X~1000X

This digital microscope adopts build-in integrated digital camera system with 5 million pixels high resolution and 1/2.5” target surface.line by line scanning,automatic exposure and auto color balance,USB2.0 output,reproduces 90% image which is in the field of view.
Professional image processing and analysis,includes more than 100 functions,such as chromaticity adjustment,image transforming,texture analysis,featurerecognition,etc.

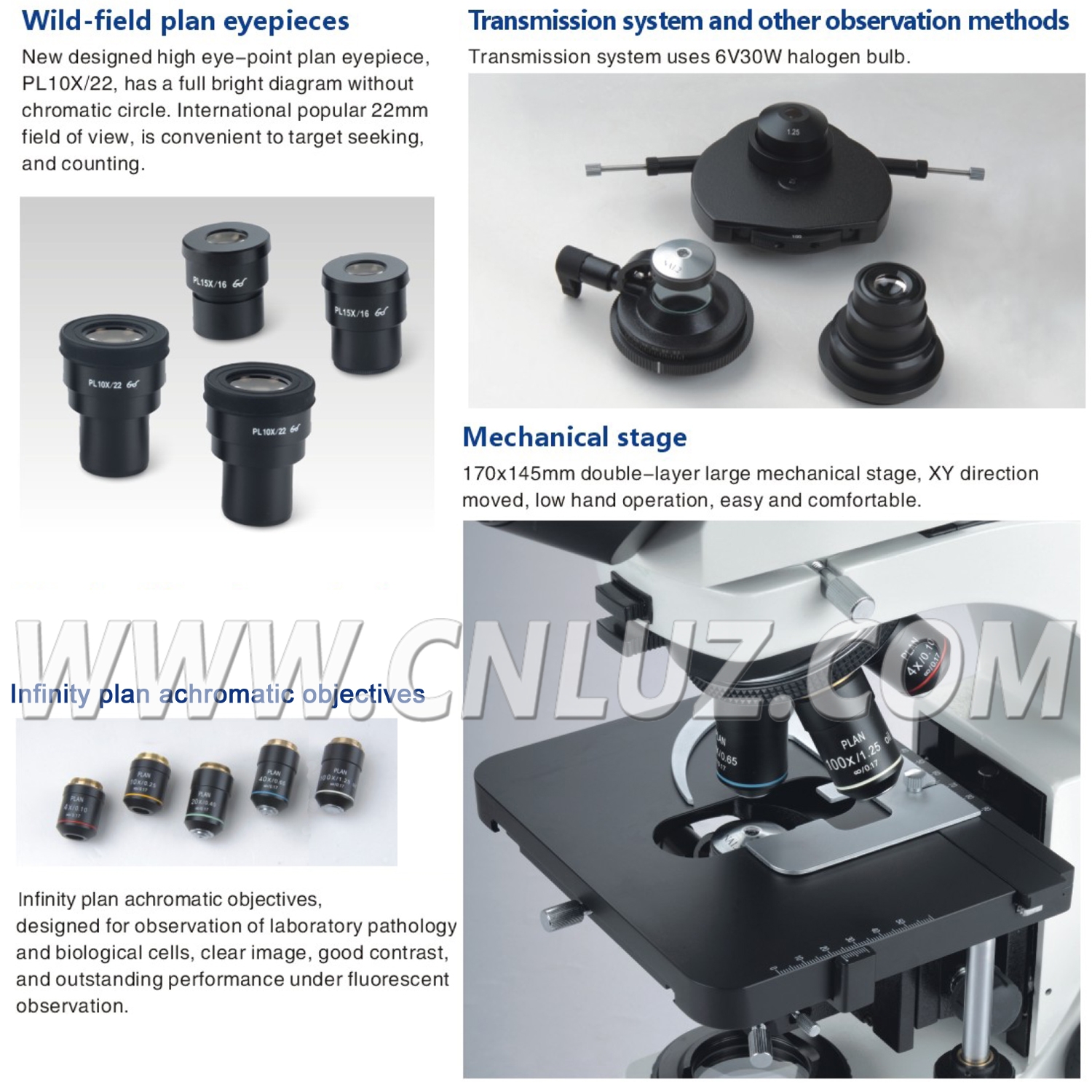

A new generation of infinity color corrected optical systems with wild-field high eye-point eyepieces and plan achromatic objectives, presents you sharp and bright micro-images.
Integrated T-shaped body with firm structure and ergonomic design makes comfortable operation.
Different kinds of accessories, more functions, achieve more methods of observation and suit for all kinds of detections or experiments.

Specification	MDB.023010
Optical System	Color Corrected Infinity Optical System
Digital Camera	5.0M, 1/2.5" CMOS Digital Camera Built-in, USB 2.0 Output, Repuduces 90% Of Optical View Field On Screen
Head	Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Eyepiece	PL10x/22mm, High Eyepoint, With Eye-cup
Objective	Infinity Plan Achromatic Objective 4x/0.1, W.D. 7.18mm
	Infinity Plan Achromatic Objective 10x/0.25, W.D. 4.70mm
	Infinity Plan Achromatic Objective 20x/0.40, W.D. 1.75mm
	Infinity Plan Achromatic Objective 40x/0.65, W.D. 0.72mm
	Infinity Plan Achromatic Objective 100x/1.25 W.D. 0.15mm
Nosepiece	Reversed Quintuple Nosepiece
Focusing	Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm
Stage	Double Layer Mechanical Stage, 175145mm, Moving Range 7550mm, Moving Precision 0.1mm
Filter	Blue Filter Dia.45mm
Power	90~240V Wide Range Voltage
Condenser	N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm
Illumination	Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed

Item	Optional Accessories
Eyepiece	PL10x/22mm, High Eyepoint
Eyepiece	PL10x/22mm, Plan Eyepiece with Cross, High Eyepoint
Software	Professional Image Processing And Analysis, Including More Than 100 Functions Support 24 Bit Ture Color Image Processing, Support Color Mode RGB,CMY, HSY, YUV Advanced Particle Automatic Identification, Automatic Segmentation of Blocking Particles Geometric Parameter Measurement And Auto Quantitative Analysis
Dark Field	Dark Field Condenser, Dry, N.A=0.9
Dark Field	Dark Field Condenser, Immersion, N.A=1.2
Polarization Set	Polarizer, Dia. 45mm
	Analyizer Slide
	λ Slide
	Rotatable Working Stage
Filter	Yellow, Dia.45mm
	Green, Dia.45mm
	Neutral, Dia.45mm
Adapter	C-Mount, 1.0x, Focus Adjustable
	C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable
	C-Mount, 0.50x, For 1/2" CCD, Focus Adjustable
	C-Mount, 0.35x, For 1/3" CCD, Focus Adjustable
Infinity Plan Phase Contrast Set	Centering Telescope
	Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm
	Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm
	Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm
	Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm
	Infinity Phase Contract Disc Condenser, Abbe N.A.1.25
