Biological Digital Microscope, 5M,CMOS, 40X~1000X_IHPVISION:Microscope,Digital Vision

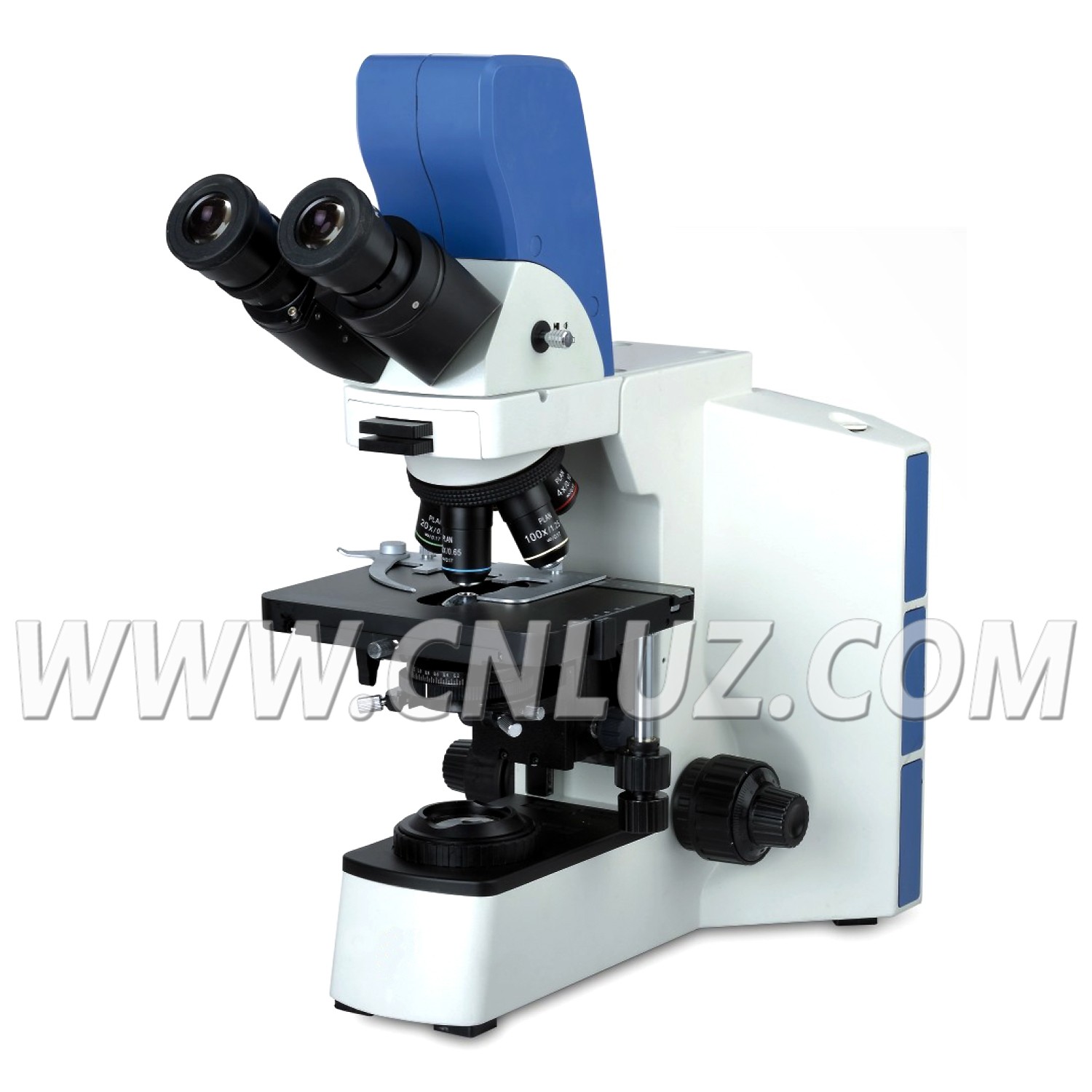

MDB.023047Biological Digital Microscope, 5M,CMOS, 40X~1000X

system with 5 million pixels high resolution and 1/2.5” target surface.line by line scanning,automatic exposure and auto color balance,USB2.0 output,reproduces 90% image which is in the field of view.
Professional image processing and analysis,includes more than 100 functions,such as chromaticity adjustment,image transforming,texture analysis,featurerecognition,etc.
Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification.
Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
"Building blocks" design for combining multiple functions, fluorescence, phase contrast, polarizing, dark field attachments can be assembled on the basis of bright field observation.
Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.

Specification	MDB.023047
Optical system	Infinity color corrected optical system
Digital Camera	5.0M, 1/2.5" CMOS Digital Camera Built-in, USB 2.0 Output, Repuduces 90% Of Optical View Field On Screen
Head	Compensation Binocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
Eyepiece	High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
Objective	Infinity Plan Achromatic Objectives 4x ,WD=7.18mm
	Infinity Plan Achromatic Objectives 10x,WD=4.70mm
	Infinity Plan Achromatic Objectives 20x ,WD=1.75mm
	Infinity Plan Achromatic Objectives 40x (Spring),WD=0.72mm
	Infinity Plan Achromatic Objectives 100x (Spring, Oil ),WD=0.15m
Nosepiece	5 Holes revolving nosepiece, inward
Focusing	Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable.
Stage	Double Layer Mechanical Stage 175x145mm, With Special Fabrication Processing, Anti-corrosive And Anti-friction; X/Y Moving Hand Wheel In Right Or Left Hand; Moving Range 76x50mm, Precision 0.1mm
Condenser	N.A.1.2/0.22 Swing-out Type Achromatic Condenser
Filter	Blue
Light Source	6V/30W Halogen, Pre-centered, Intensity Adjustable.

Item	Optional Accessories
Eyepiece	High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable
Eyepiece	High Eye-point PL15x/16mm
Objective	Infinity plan achromatic objectives 2x
Nosepiece	4 Holes revolving nosepiece, inward
Phase Contrast Attachement	Infinity Plan Phase Contrast Objectives 10X,WD=4.70mm
	Infinity Plan Phase Contrast Objectives 20X,WD=1.75mm
	Infinity Plan Phase Contrast Objectives 40X,WD=0.72mm
	Infinity Plan Phase Contrast Objectives 100X,WD=0.15mm
	N.A.1.25 Five Holes Phase Contrast Condenser (Infinity)
	Centering Telescope
Polarizing Attachment	Polarizer (Diameter 45mm), Can Be Out Of Light Path.
	Analyzer 360° Rrotatable,Can Be Out Of Light Path.
	λ Slide
	Rotatable Working Stage
Dark Field Condenser	N.A.0.9 Dry
Dark Field Condenser	N.A.1.25 Immersion
Reflected Fluorescence System	6-Holes Disc Reflected Fluorensent Illumination
	Mercury Lamp House 100W/DC
	Mercury Lamp Power 100V-240V AC With Indicator Display
	Eye Protecting Board
	HBO Ultra Hi-Voltage Spherical Mercury Lamp 100W/DC OSRAM
	Fluorescence Filter System B
	Fluorescence Filter System G
	Fluorescence Filter System UV
	Fluorescence Filter System V
Filter	Yellow Filter, Dia.45mm
	Green Filter, Dia.45mm
	Netural Filter, Dia.45mm
	Attenuation Plate, Transmission 25%
CCD Adapter	1x C-Mount, Focus Adjustable
	0.50x, For 1/2” C-Mount, Focus Adjustable
	0.67x, For 2/3” C-Mount, Focus Adjustable
Series of Microscope	Metallurgical Microscope
	Polarizing Microscope
	Fluorescence Microscope, APO
	Digital Fluorescence Microscope, APO
