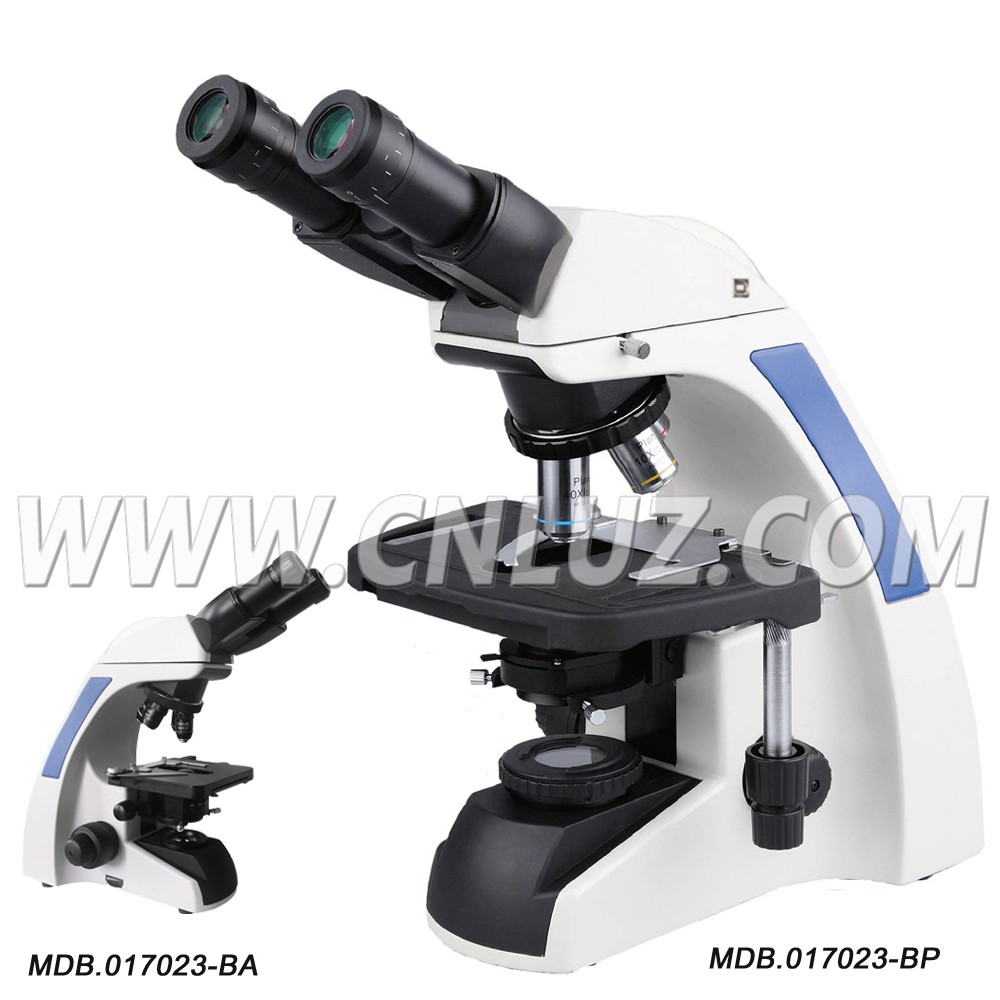

MDB.017023-BA
|
| |
Infinite Optical System |
Finite Optical System |
|
|
Binocular, Inclined at 30o, Interpupillary 48-75mm
|
| Digital Sensor |
1/2.5”CMOS , Active 5.0M, Resolution 2592 x 1944 |
|
Eyepiece
|
WF10x/22mm
|
|
|
Infinite High Contrast Chromatic-free Full Plan Objective 4x
|
Achromatic Objective 4x
|
|
Infinite High Contrast Chromatic-free Full Plan Objective 10x
|
Achromatic Objective 10x
|
|
Infinite High Contrast Chromatic-free Full Plan Objective 40x
|
Achromatic Objective 40x
|
|
Infinite High Contrast Chromatic-free Full Plan Objective 100x
|
Achromatic Objective 100x
|
|
|
Backward Quadruple Nosepiece
|
|
Focusing
|
Coaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm
|
|
|
Double Layer Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm |
Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm |
|
Condenser
|
Abbe Condensor NA1.25 with Diaphragm
|
|
Output
|
USB2.0 port
|
| Illumination |
External Illumination, 3W/LED |
| Packing Size |
370x320x510mm, 8kg |
