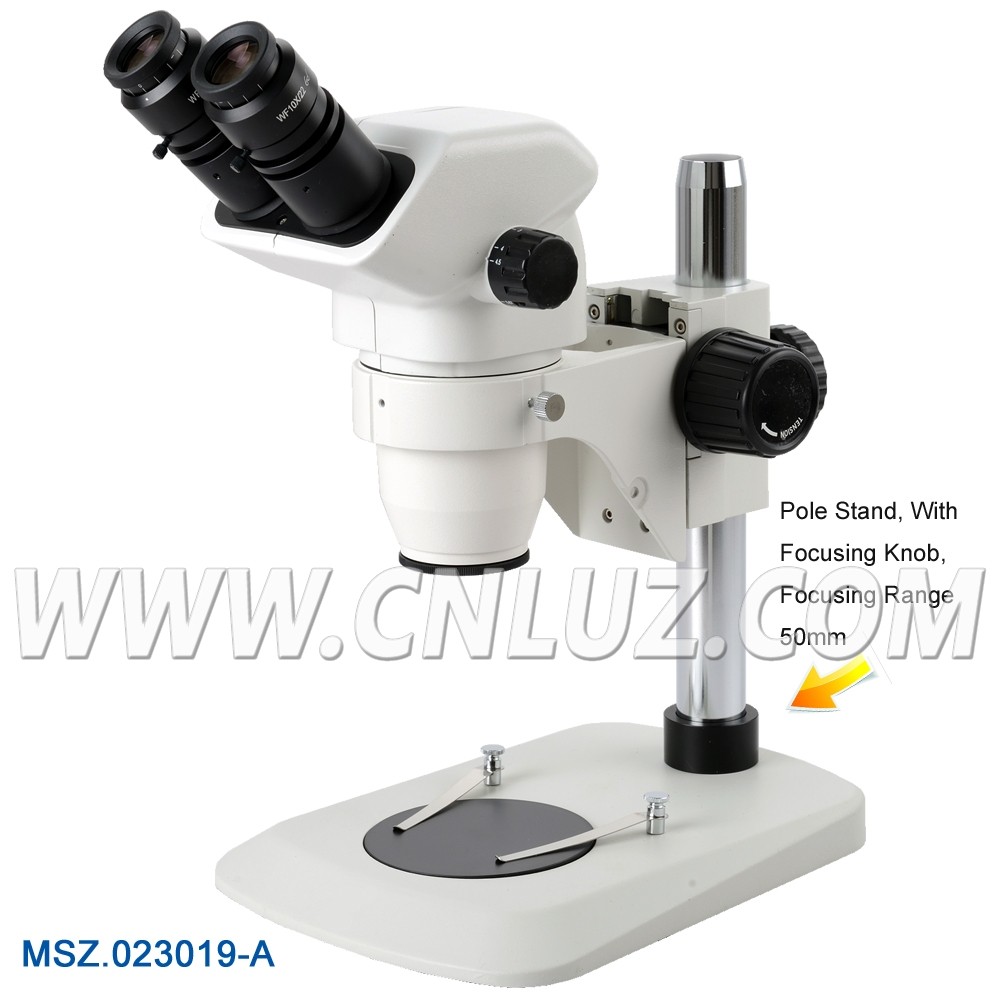

MSZ.023019Zoom Stereo Microscope,6.7~45X
  • /usr/575/images/Products/Y/57518045.jpg
  • /usr/575/Picture/Y/11048.jpg
  •
  •
  • Fully Coated Optical System, Sharp & Clear Image
  • Total Optical Magnification 6.7~45x
  • 0.67~4.5x Zoom Lens, with WF10x/22mm Eyepiece,
  • Pole Stand or Track Stand,
  • No Light Source

Specification
MSZ.023019-A
MSZ.023019-B
Magnification
6.7~45x, Up to 2~225x with Auxiliary Lens
Head
Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Eyepiece
WF10x/22mm, Both with Eye-cup
Zoom Range
0.67~4.5x
Zoom Ratio
1:6.5
Working Distance
100mm, With Standard 1x Lens. Up to 26~287mm With Auxiliary Lens
Stand
Pole Stand, With Focusing Knob, Focusing Range 50mm
Track Stand, With Focusing Knob, Focusing Range 50mm
Illumination
No Light Source

Item
Optional Accessories
Eyepiece


WF15x/15mm

WF20x/10mm

WF25x/9mm
Auxiliary Lens 0.3x, W.D. 287mm
0.4x, W.D. 217mm
0.5x, W.D. 177mm
0.75x, W.D. 117mm
1.5x, W.D. 47mm
2.0x, W.D. 26mm
