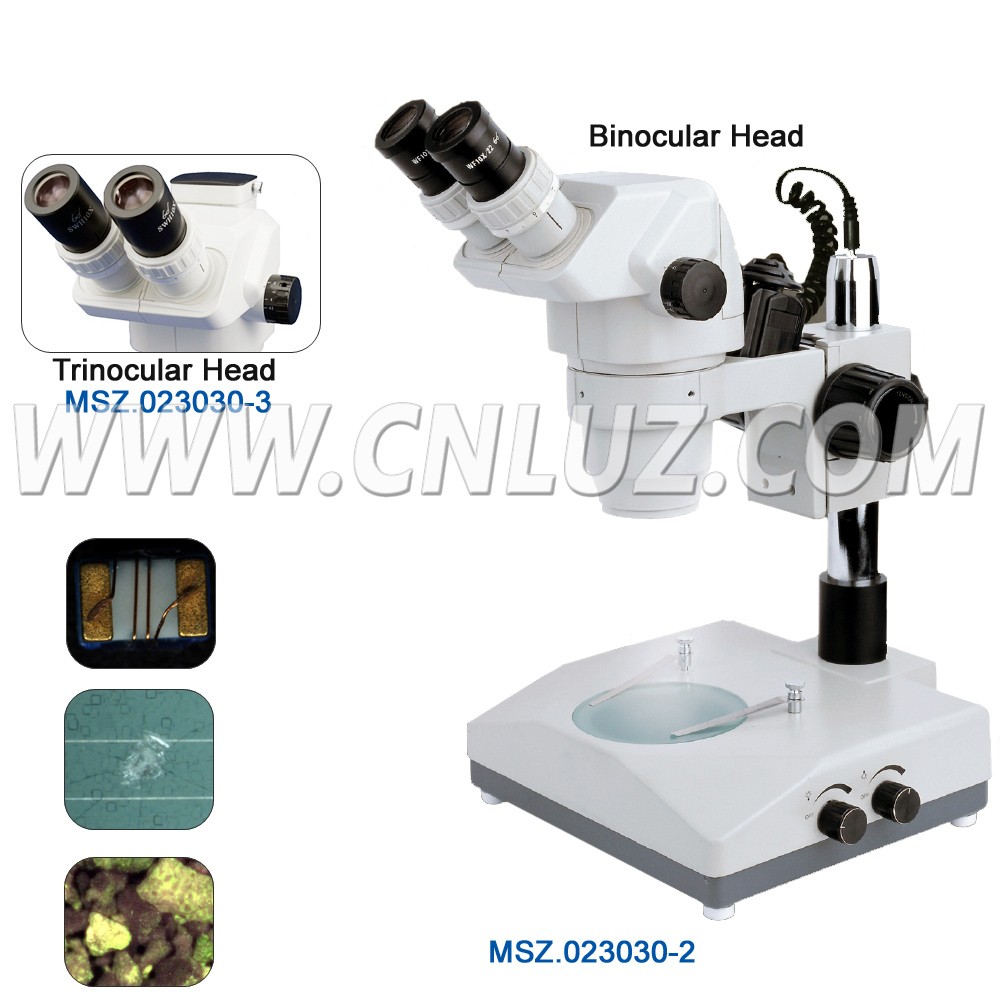

MSZ.023030Zoom Stereo Microscope,6.7~90X
  • /usr/575/images/Products/Y/57518101.jpg
  •
  •
  •
  • 0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece
  • Total Optical Magnification 7~45x
  • Up & Bottom 12V 15W Halgen Light Source

Specification
MSZ.023030-2
MSZ.023030-3
Magnification
6.7x~90x, (2x~225x with Auxliliary Objective)
Head
Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

Eyepiece
WF10x/22mm, High Eyepoint
Zoom Lens
0.67~4.5x
Zoom Ratio
1:6.7
Working Distance
100mm, With Auxiliary Objectives 26~287mm
Stand
Pole Stand, Height 248mm,, Base 240*240*73mm
Light Source
Up & Bottom 12V 15W Halgen Light Source

Item
Optional Accessories
Head

Binocular Head + WF10x/20mm

Trinocular Head + WF10x/20mm
Eyepiece


WF10x/20mm, High-eyepoint, Outside Dia. 30mm

WF15x/15mm, High-eyepoint, Outside Dia. 30mm
WF20x/10mm, High-eyepoint, Outside Dia. 30mm
WF10x/20mm,with Reticle
WF15x/15mm,with Reticle
WF20x/10mm,with Reticle
Auxiliary Lens


0.5X,W.D. 165mm
0.75X,W.D. 105mm
1.5X,W.D. 45mm
2.0X,W.D. 30mm
CCD Adapter

0.50x, For 1/2" CCD
0.35x, For 1/3" CCD
