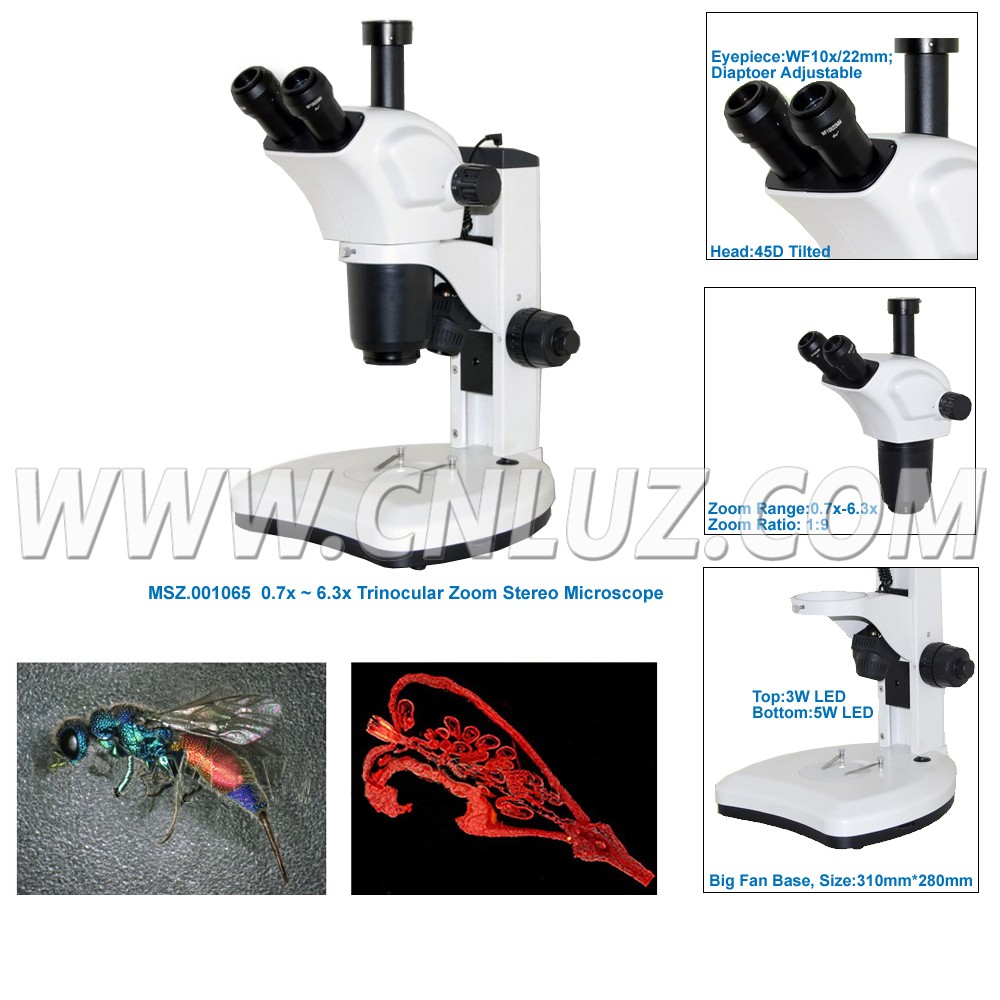

MSZ.001065Zoom Stereo Microscope, 7x ~ 63x, Reflected&Transmitted LED Illumination
  • /usr/575/images/Products/Y/57518404.jpg
  • /usr/575/Picture/Y/11421.jpg
  • /usr/575/Picture/Y/11422.jpg
  •
  • Total Magnification:7x ~ 63x
  • Field Range:Φ33.8 ~ Φ3.49
  • Working Distance:110cm
  • High Brightness illumination, Reflected 3W LED & Transmitted 5W LED

Specification
MSZ.001065
Total Magnification

7x ~ 63x

Head
Trinocular head,45° Inclined, Interpupillary Distance 55 ~ 75mm, ±5 Diopter Adjustment,Parfocal Distance 10mm
Eyepiece
Extra Wide Field, Plan WF10x/22mm, High Eyepoint, Eyepiece Tube Φ 30mm
Zoom Body

Zoom Range 0.7x ~ 6.3x, Zoom Ratio 1:9

Field Range Φ33.8 ~ Φ3.49
Working Distance

110cm

Focusing Sytem

Track Stand, Coaxial Coarse & Fine Focusing Knob

Base

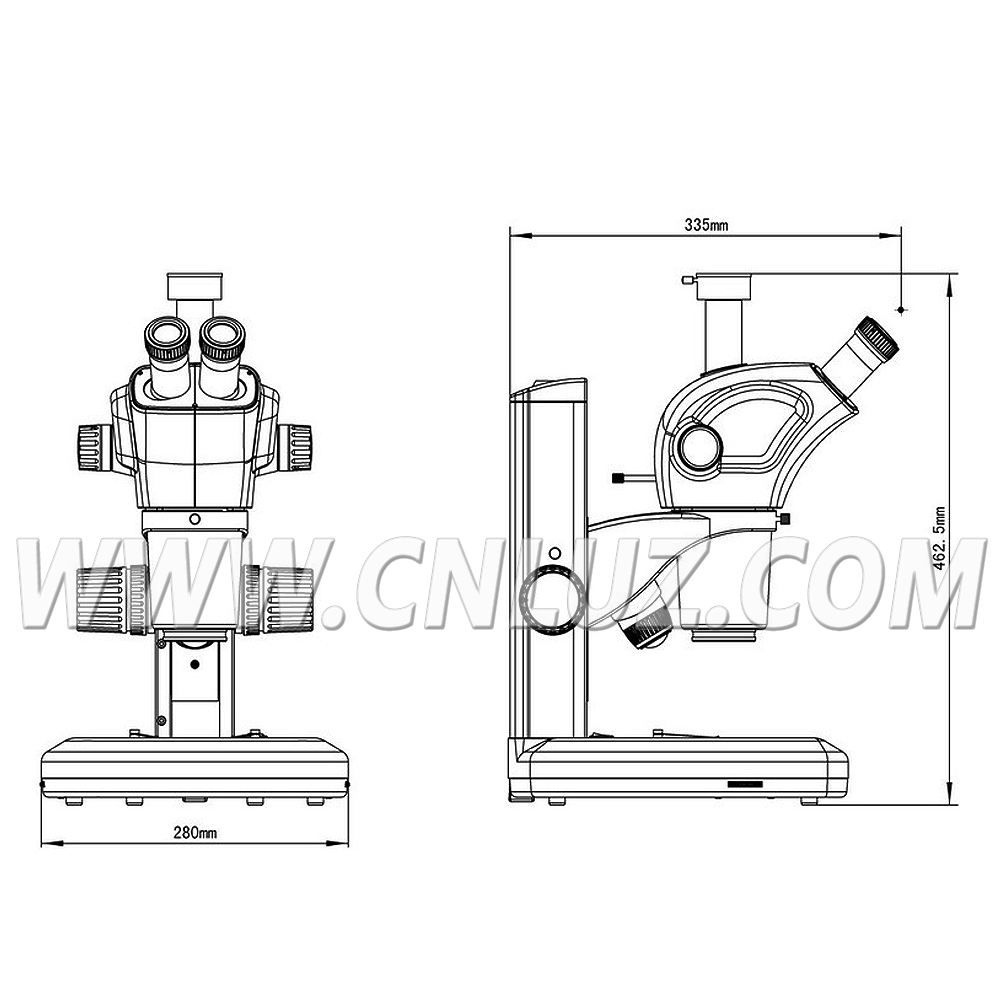

Size 310 x 280mm, With Specimen Clips

Vertically Effective Movement Range
220mm
Power Supply
Input 85V~265V 50/60Hz, Output 12V
Illumination High Brightness, Reflected 3W LED & Transmitted 5W LED, Brightness Adjustable

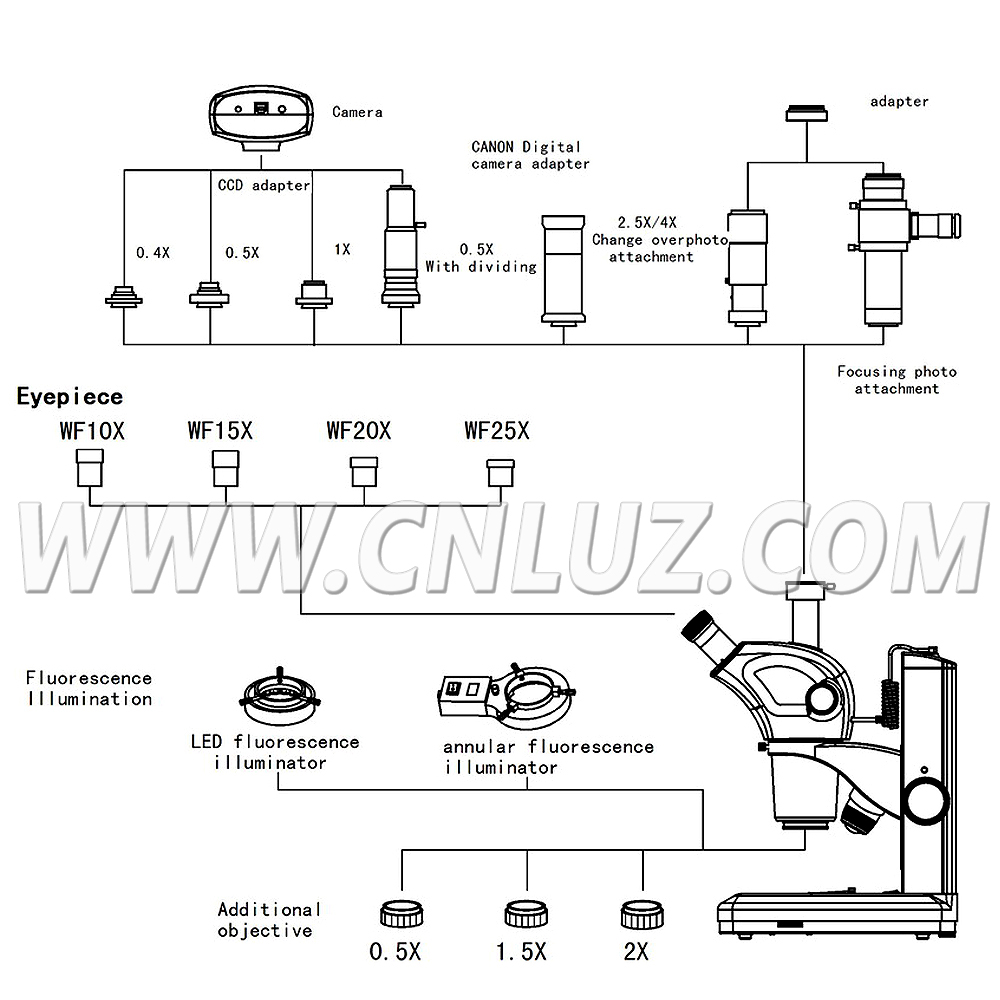

Item
Optional Accessories
Eyepiece



WF15x/15mm

WF20x/12mm

WF25x/9mm

WF10x/22mm, Dividing Eyepiece

Auxiliary Lens

1.5x, Total Magnification 10.5x ~ 94.5x

2x, Total Magnification 14x ~ 126x

Fluorescent Illuminator Epi - LED Fluorescent Illuminator (B,G),3W LED Power Supply

Epi - LED Fluorescent Illuminator (B,G,UV,V),3W LED Power Supply

Ring Fluorescent Illuminator
Illumination (Halogen Lamp)

High Brightness, Reflected & Transmitted , Brightness Adjustable, Both 30W Halogen Lamp

Camera Adaptor


0.4x, C-Mount

0.5x, C-Mount

1x, C-Mount
0.5x, C-Mount With Dividing

Digtial Camera CANON (EF) / NIKON (F)
