MSZ.063001Zoom Stereo Microscope, 7x~45x, Reflected&Transmitted LED
  • /usr/575/images/Products/Y/57520270.jpg
  • /usr/575/Picture/Y/11627.jpg
  •
  •

Provide high-quality, durable and reliable optical system and operating mechanism. Range of accessories, diversified portfolio allocation. Meet the modern biology, medicine, scientific research, modern electronics industry online testing and other technology industries such as high-precision requirements

  • A film coated with a special high-quality optical components, created a high-quality optical images
  • In a large field of view to form a flat surface and good contrast as positive, especially in the peripheral visual field more bright and clear image quality
  • A continuous zoom lens 0.7X ~ 4.5X (6.3:1), standard magnification 7X ~ 45X. (Optional auxiliary lens,
    Magnification 14X ~ 180X)
  • Effective standard working distance of 100mm, optional auxiliary lens, working distance will be extended to 26 mm ~ 287mm,
    Create enough space for the use of
  • Five observation head 45 ° inclined binocular diopter adjustable, to ensure that different vision users can get a clear image of satisfaction
  • ergonomic design, the best eye point height, long time without feeling tired
  • handwheel zoom level (axial) bilateral setting, easy to operate and comfortable, zoom high repetition accuracy
  • with a variety of accessories, expand the application fields.
Specification

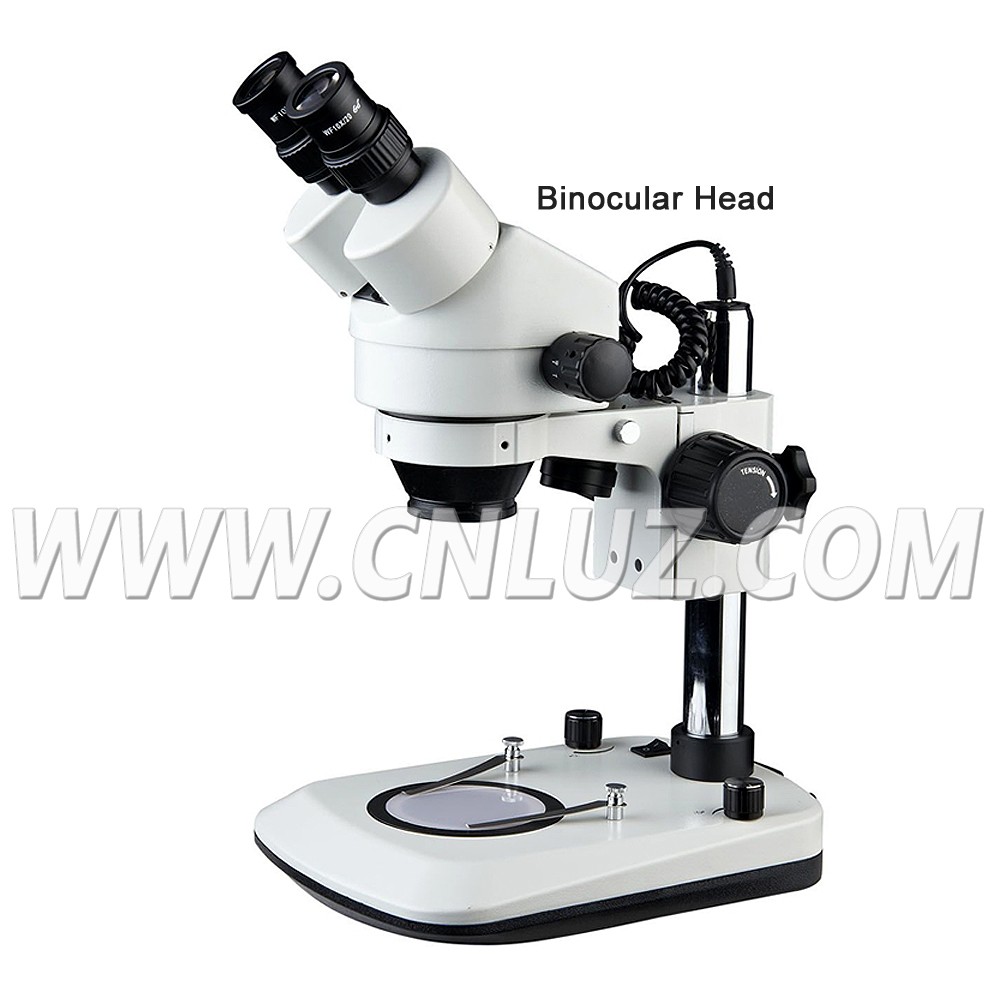

MSZ.063001-B

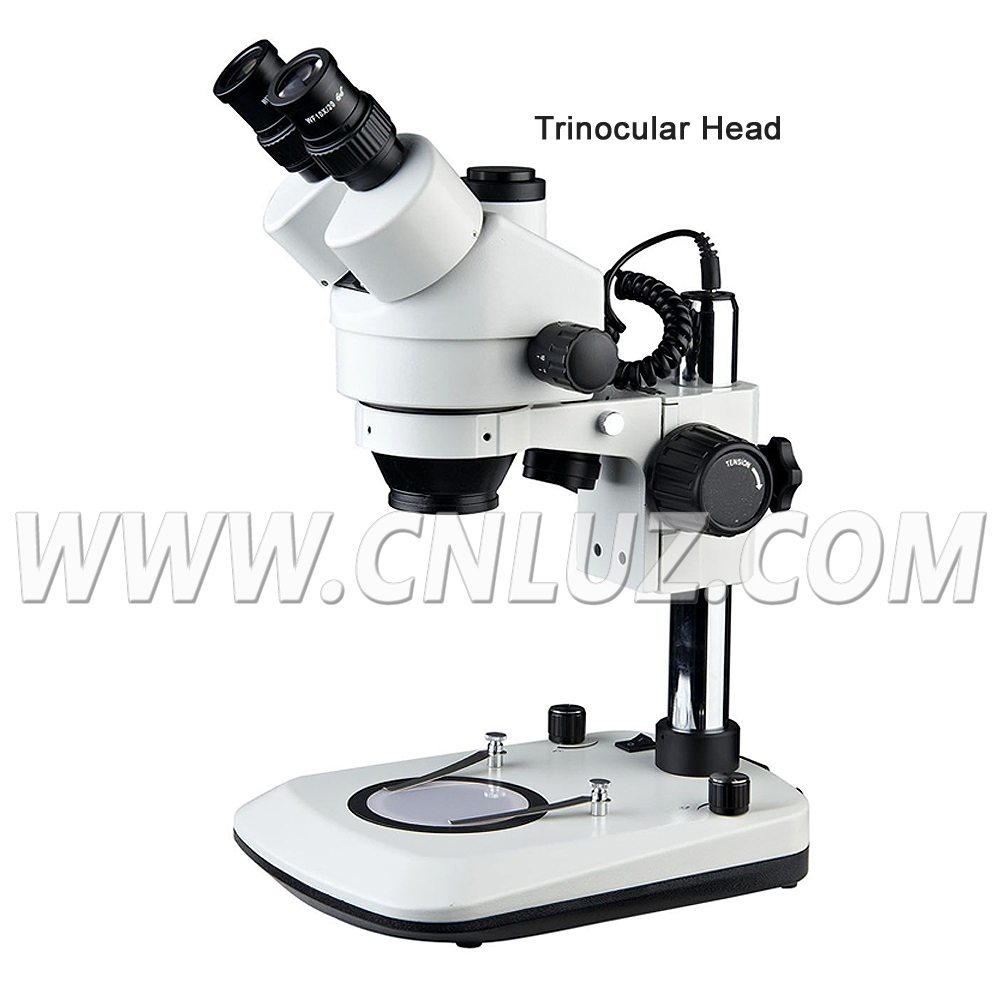

MSZ.063001-T
Magnification
7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives
Head Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm
Eyepiece
WF10x/20mm, High Eyepoint
Zoom Lens
0.7~4.5x
Zoom Ratio
1:6.5
Working Distance
100mm, With Auxiliary Objectives 30~165mm
Field of View 1~95.2mm
Stand
Pole Stand
Light Source Uo & Bottom High Brightness 3W LED Light Source, Separatly Controlled


Optical Parameter Sheet
Objective
Standard 1.0x
Auxiliary 0.5X
Auxiliary 1.5X
Auxiliary 2X
W,D.
100mm
165mm
45mm
30mm
Eyepiece
Mag
View field
Mag
View field
Mag
View field
Mag
View field
10X/20mm

7.0X
28.6mm
3.5X
57.1mm
10.5X
19mm
14X
14.3mm
45.0X
4.4mm
22.5X
8.9mm
67.5X
3mm
90X
2.2mm
15X/15mm

10.5X
21.1mm
5.25X
42.8mm
15.75X
14.3mm
21X
10.7mm
67.5X
3.3mm
33.75X
6.7mm
101.25X
2.2mm
135X
1.7mm
20X/10mm

14.0X
14.3mm
7.0X
28.6mm
21.0X
9.5mm
28X
7.1mm
90.0X
2.2mm
45.0X
4.4mm
135.0X
1.5mm
180X
1.1mm
