MDU.027001USB Portable Digital Microscope,5M,500X
  • /usr/575/images/Products/Y/57518080.jpg
  • /usr/575/Picture/Y/11133.jpg
  •
  •

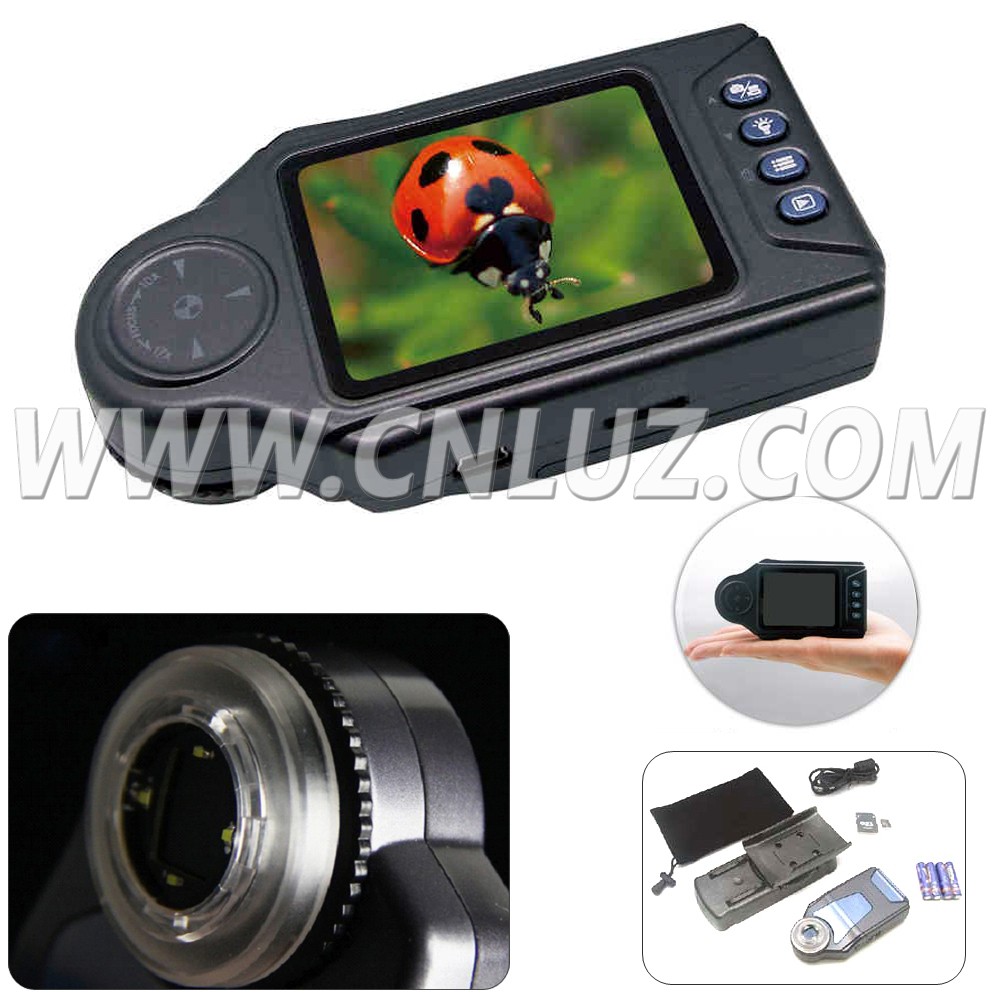

MDU.027001 portable video microscope, based on the characteristics of portable video unique in microscopic field. It is wi dely used in textile, circuit board testing, inspection, identification of antique beauty, vegetation observation etc..

Specification
MDU.027001
Total Magnification Ratio 10X~544X
Optica Magnification 10X~17X
Digital Magnification 1X~32X
LCD Panel 2.7" TFT panel
Image Sensor
CMOS,5M high quality Image Sensor
Lens
High quality microscopic lens
Focusing

Manual focus,the minimum working distance is 40mm

Image Resolution

3264*2448、2560*1920、2048*1536、1600*1200、1280*1024、640*480

Image Format

JPEG

Video Resolution

640*480、 320*240

Video Format

AVI
Light Source
White LED*4 , the 4 level of brightness adjustable

Storage Medium

MicroSD/SDN Card (Max 32GB)
Power Source
4 AA batteries
Working Time 1.5h

Interface

Mini USB2.0
Software Language Chinese,English, German, Italian, Portuguese, Russian, French, Spanish
Product Size 60*30*115
Weight 97g

Item
Optional Accessories

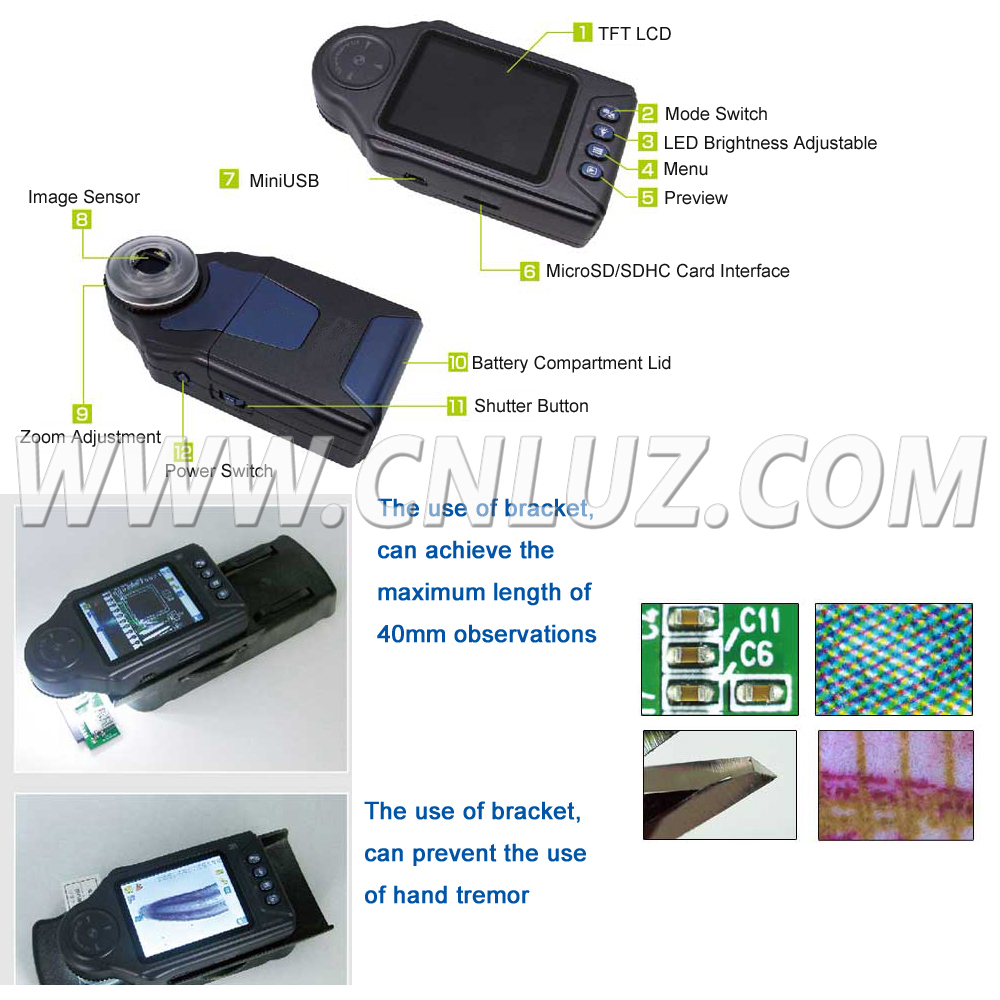

Bracket
  • Can achieve the maximum length of 40mm observations
  • Can prevent the use of hand tremor
