MOM.036001Operating Microscope,1.9X-17.8X
  • /usr/575/images/Products/Y/57518376.jpg
  • /usr/575/Picture/Y/11405.jpg
  • /usr/575/Picture/Y/11406.jpg
  • /usr/575/Picture/Y/11407.jpg

Operation Microscopes using fibre-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be used for micro-operation in ear-nose-throat, ophthalmology, gynecology and surgery.

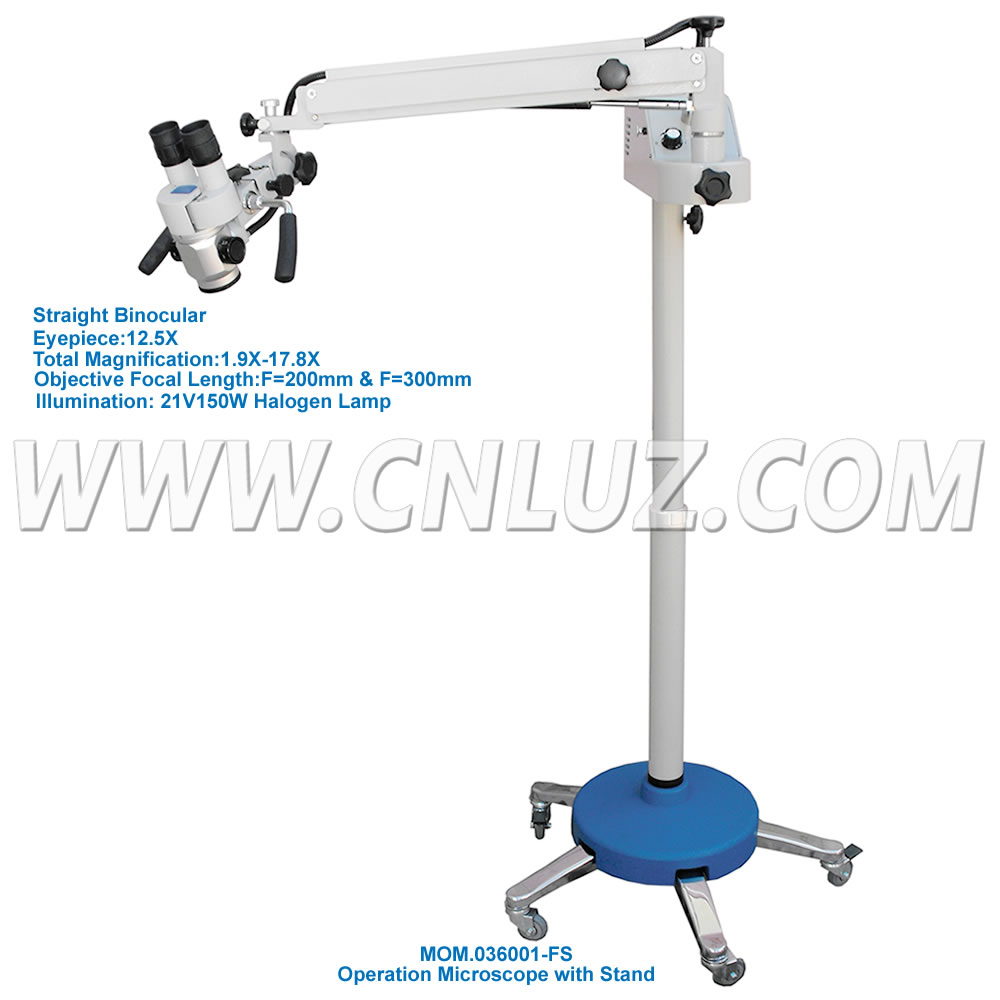

MOM.036001- FS
MOM.036001- TT

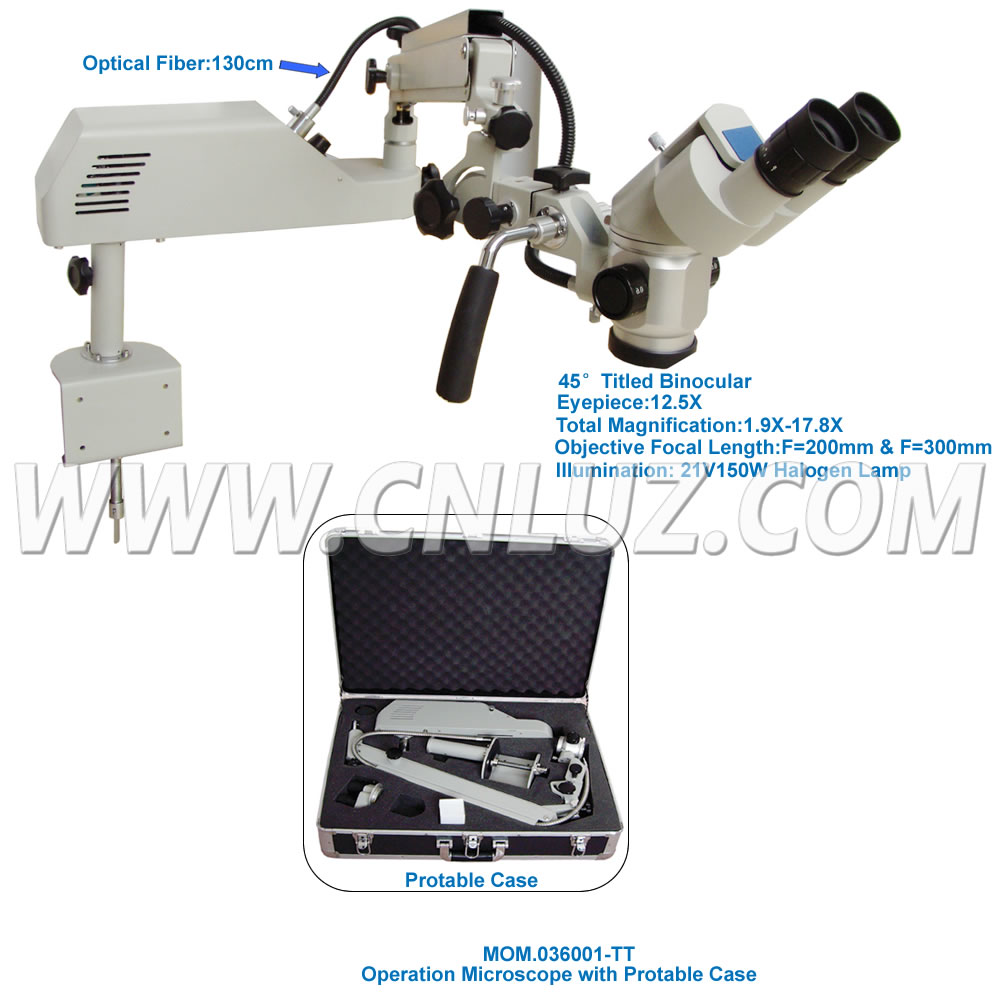

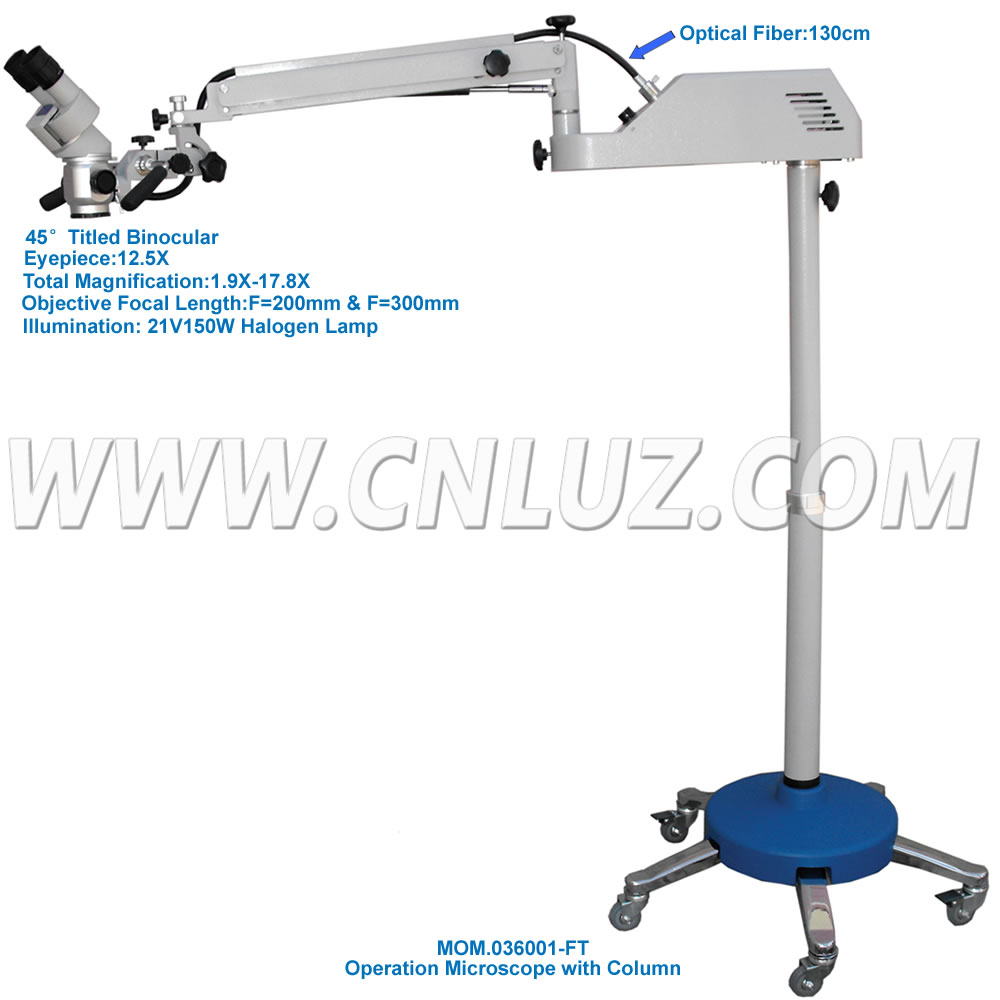

MOM.036001- FT
Straight Binocular
45°Tilted Binocular
Table Clamp
Column Fitted on the Round Base with 5 Jaws
Table Clamp
Column Fitted on the Round Base with 5 Jaws
Eyepiece 12.5X
Magnification Changer 5-step magnification change: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Total Magnification 1.9X-17.8X
Focal Length Of Objective 200mm & 300mm
Working Distance 200mm & 300mm
Fine Focusing Range 20mm
Filter Built-In Green Filter
Balancing Arm Counterweight Adjustable
Illumination 21V150W Halogen Lamp, Brightness Adjustable
Optic Fiber Cable 130cm
Portable Case Yes
MOM.036001 Optional Accessory
Beamsplitter MOM.036001-BS
Demonstrator MOM.036001-DS
TV Adapter MOM.036001-TA
Photo Adapter MOM.036001-PA
