MOM.036007Ophthalmic Microscope, Straight/45° Tilted Head, 2.4X~12X
  • /usr/575/images/Products/Y/57518828.jpg
  • /usr/575/Picture/Y/11542.jpg
  •
  •
  • Operating Microscopes use fibre-optic cable for coaxial illumination.
  • Different working distance and magnification.
  • Flexible handling and easy operation.
  • Wide application in ophthalmology, gynecology, ear-nose-throat, surgery and orthopedics etc.
Specification

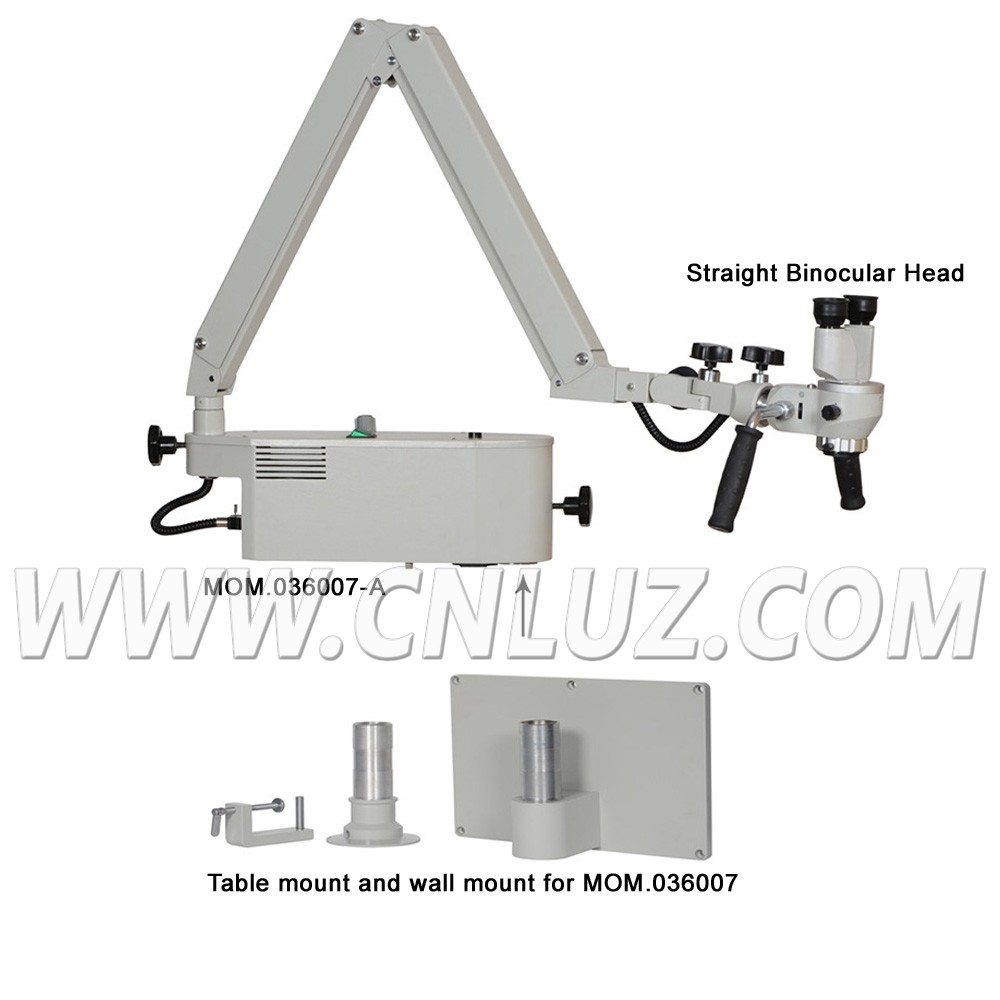

MOM.036007-A

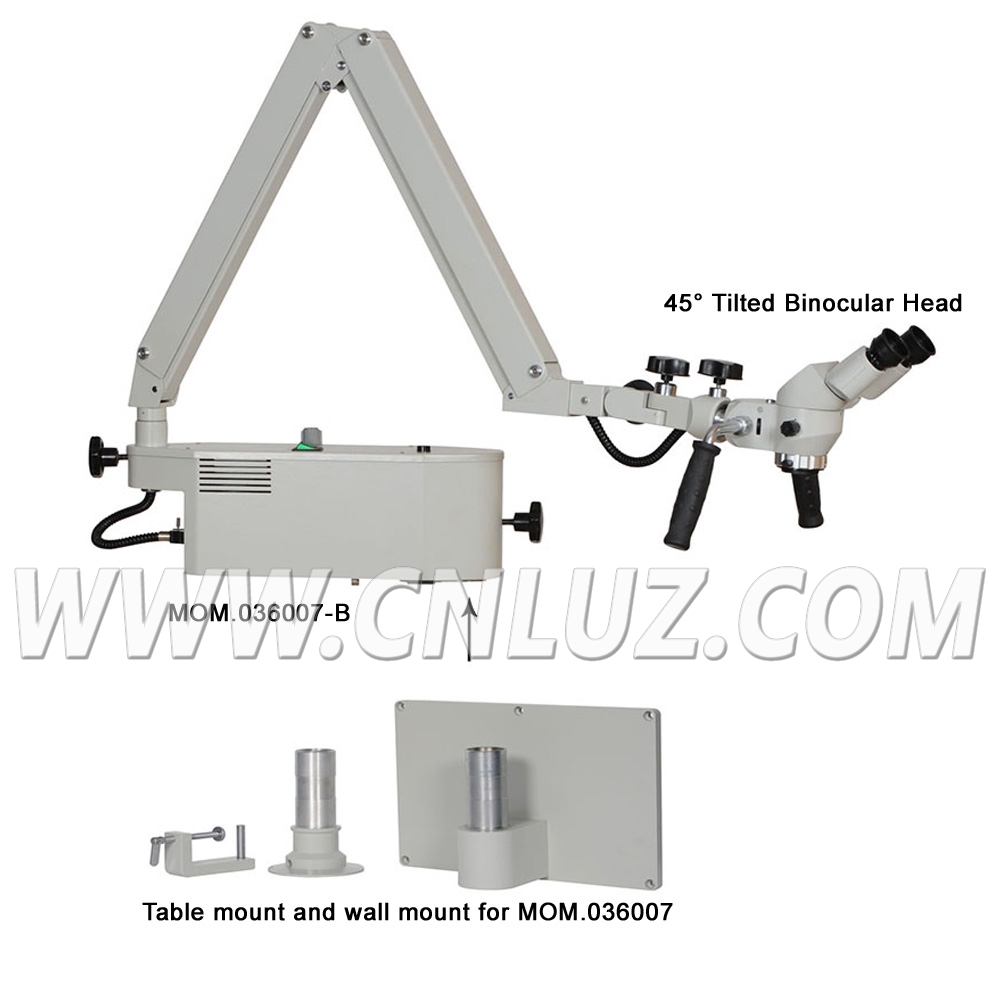

MOM.036007-B
Observation Unit Straight ,Binocular 45° Tilted ,Binocular
Stand
table mount

Magnification of observation unit 6X (F=87mm)
Total magnification 2.4X — 12X
Value on handwheel for Magnification changer
3-step magnification change: 0.6X, 1X, 1.6X
Objective focus length 4 objective lens: F=200、F=250、F=300、F=400mm
Connecting screw: M38x0.75
Fine focusing range 10mm
Filter
Built-in green and yellow filters
Balancing arm
2-part arm
Illumination system
Coaxial illumination with cold light source fiber-optic cable, 12V 100W halogen lamp, brightness adjustable
Fiber-optic cable
1600mm

Table 1: objectives with different working distance for applicable departments
Working distance
Applicable department
F=200mm
Ophthalmology, ear and nose
F=250mm
Surgery
F=300mm
Neurosurgery and brain surgery
F=400mm
Throat and gynecology

Table 2: Table of Optical Characteristics
Item
Nominal Value
Objective
F=200mm
F=250mm
F=300mm
F=400mm
Value on magnification change knob
1.6X
1X
0.6X
1.6X
1X
0.6X
1.6X
1X
0.6X
1.6X
1X
0.6X
Total magnification
12X
7.5X
4.7X
9.6X
6X
3.7X
8X
5X
3X
6X
3.8X
2.3X
Linear field
15.8
25.3
40.6
19.7
31.6
50.7
23.6
37.9
60.8
31.5
50.5
81
Exit pupil diameter
1.04
1.66
1.66
1.04
1.66
1.66
1.04
1.66
1.66
1.04
1.66
1.66
Resolution
67
44.5
29.7
60
35.4
27
47.2
31.5
23.6
35
27
19.8
Exit pupil distance
15.3
