MAD.002006Digital CMOS Eyepiece, 350K to14M, USB2.0
  • /usr/575/images/Products/Y/57517689.jpg
  • /usr/575/Picture/Y/10734.jpg
  •
  •
  • From 350K to14M
  • High speed USB 2.0, compact design

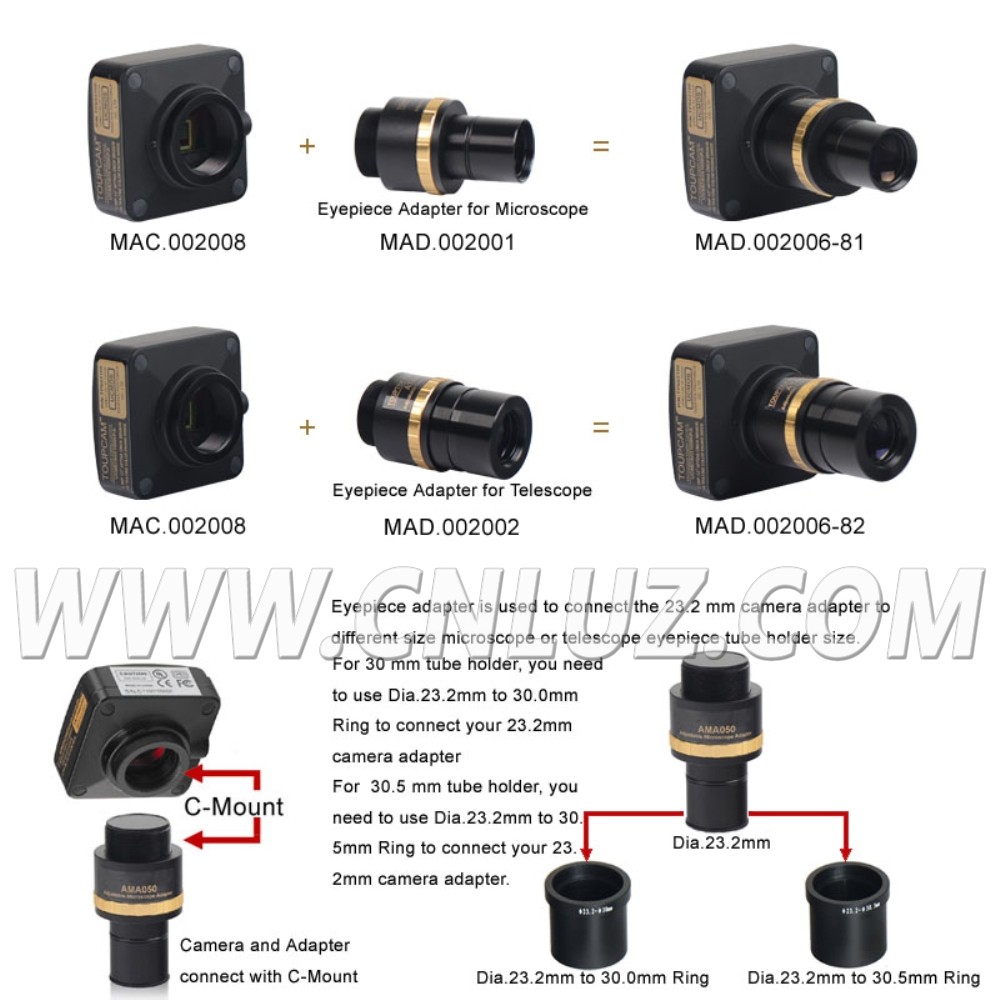

  • Allows attachment of a 23.2 camera adapter equipped with different size eyepiece holder
  • Operating System :Windows XP / Vista / 7 /8 (32bit & 64bit)
  • CE, UL, FC.. all certificate passed
Specification
MAD.002006-81  Digital Eyepiece for Microscope
MAD.002006-82  Digital Eyepiece for Telescope
Pixel
350K
1.3M
2M
3.2M
5.2M
Max Resolution
640x480
1280x1024
1600x1200
2048x1536
2592x1944
Pixel Size
5.6um x 5.6um
3.6um x 3.6um
2.8um x 2.8um
3.2um x 3.2um
2.2um x 2.2um
CMOS Sensor
1/4"
1/3"
1/2.3"
1/2.0"
1/2.5"
Sensor Size (mm)
3.58 x2.69
4.60 x3.70
4.73.x3.52
6.55x4.92
5.70x4.28
Sensitivity(@550nm)
1.9V/luxsec
1.0V/luxsec
1.0V/lux-sec
1.0v/lux-sec
0.53v/lux-sec
DynamicRange
60dB
71dB
71dB
61dB
66.5dB
SN Ratio
45dB
44dB
42.3dB
43dB
40.5dB
Frame Rate
30fps;80fps
15fps;26fps;30fps
8fps;18fps
10fps;22fps;43fps
5fps;18fps;60fps
Binning
1x1;2x2
1x1;2x2;4x4
1x1;2x2
1x1;2x2;3x3
1x1;2x2;4x4
Exposure
0.11~192.46ms
0.140~2000ms
0.164~2000ms
0.128~2000ms
0.21~2000ms
A/D Conveter
10-bit Parallel, 8-bit R.G.B to PC
10-bit, 8-Bit R.G.B to PC
10-bit, 8-Bit R.G.B to PC
10-bit, 8-Bit R.G.B to PC
12-bit, 8-Bit R.G.B to PC
Pixel
8.0M
9.0M
10M
14M

Max Resolution
3264x2448
3488x2616
3664x2748
4384x3288

Pixel Size
1.67umx1.67um
1.75umx1.75um
1.67umx1.67um
1.4umx1.4um

CMOS Sensor
1/2.5"
1/2.3"
1/2.3"
1/2.3"

Sensor Size (mm)
3.58 x2.69
4.60 x3.70
4.73.x3.52
6.55x4.92

Sensitivity(@550nm)
0.31V/luxsec
0.33V/luxsec
0.31V/lux-sec
0.724v/lux-sec

DynamicRange
65.2dB
62.7dB
65.2dB
65.3dB

SN Ratio
34dB
34dB
34dB
35.5dB

Frame Rate
1.9fps;8fps;27fps
2fps;9fps;27fps
2fps;8fps;27fps
2fps

Binning
1x1;2x2;4x4

Exposure
0.38~2000ms
0.38~2000ms
0.38~2000ms
0.4~2000ms

A/D Conveter
12-bit Parallel, 8-bit R.G.B to PC

Output
USB 2.0,support No driver required.
MAD.002006 general Detail Specification
Scan Mode Progressive
Spectral Range 400-650nm (with IR-Filter) 380-1000nm (w/o IR-Filter)
Exposure Electronic Rolling Snap(ERS),ROI Auto & Manual,
White balance One Push ROI White Balance/ Manual Temp-Tint Adjustment
Driver Interfaces DirectShow , Twain
Operating System Microsoft Windows XP / Vista / 7 (32 & 64 bit)
CPU: Intel Pentium 4, 2.6G or above
RAM: 512 MB
HDD: 10 GB
USB: USB2.0 interface
Operating Temp. -10~60℃
Operating Humidity 30%~80%
Power Supply DC 5V from PC USB port

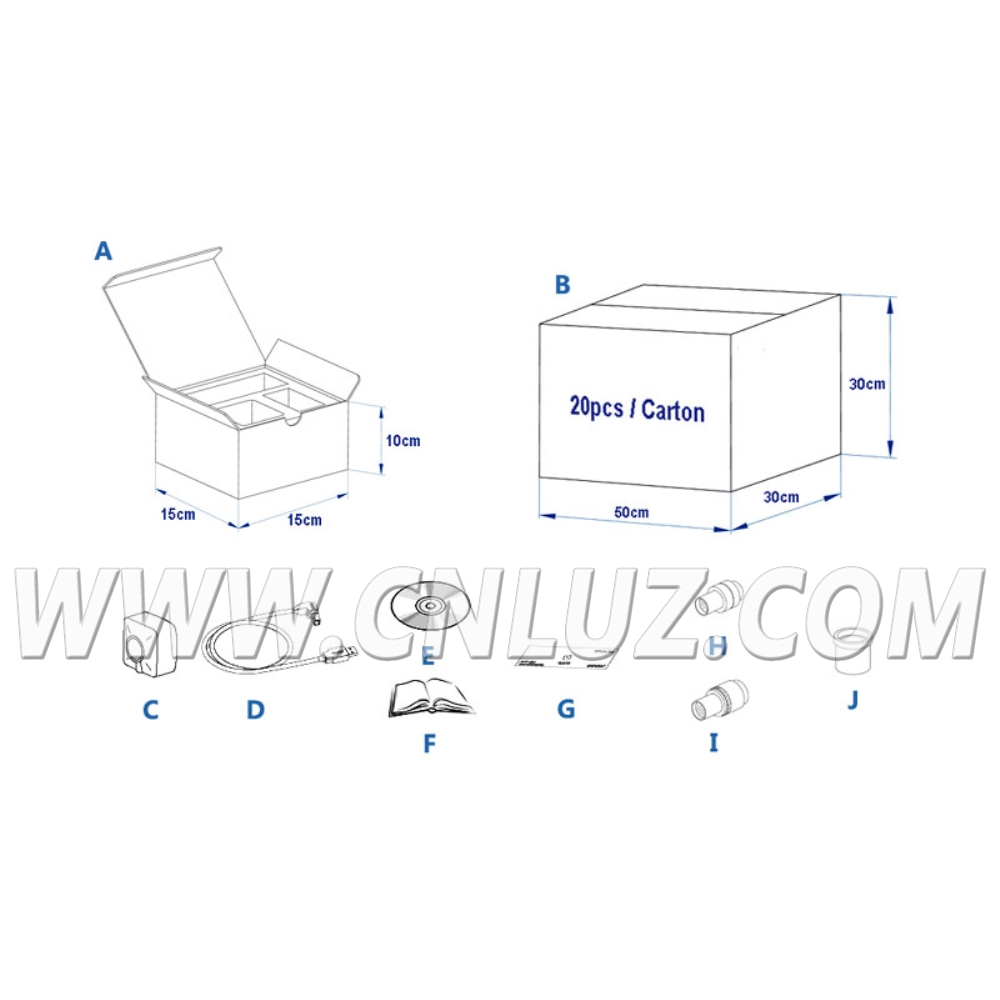

Package Box 140mmx140mmx80mm, 0.5Kgs
Color Rendering Technique Ultra FineTM Color Engine
Capture Mode Still Picture and Video
Remarks Actual frame rates on your computer depend on the hardware and operating system used
MAD.002006 Software Features
Main Functions Viewing live images; Streaming & recording live videos; Capturing & saving still images; Making measurements
Processing -Edits images in a similar manner to PhotoShop
-Captures images, records videos and saves in JPG, TIF, GIF, PSD, WMF, and BMP formats
-Add layers, watermarks, mosaics, tiles
-Adjust color balance, exposure, saturation, contrast, orientation
-Change resolution, histogram, granulation, diffusion
-Transform images via edge detection, digital image warping
Measurement Measures length and angle; rectangular, elliptical and irregular areas; single, parallel and perpendicular lines
Notation Adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors
Calibration Makes measurements in microns, millimeters, centimeters, inches, feet, and etc. at all magnification settings with desired tolerances
MAD.002006 Driver Characteristics
White Balance ROI auto white balance/temp-tint manual white balance
Black Level Calibration Adaptive black level calibration
Stuck or Hot Pixel Hardware remove technique
USB Controller Compatibility Automatic detection of adaptation
Interfaces Supported DirectShow/TWAIN
Operating System Microsoft Windows XP / Vista / 7 (32 & 64 bit)
