Specification
|
MAC.032001
|
|
Senser
|
1/2.3" CMOS, Color
|
|
Pixels
|
14M
|
|
Max Resolution
|
4608*3288
|
| Pixel Size |
1.4*1.4μm
|
| FPS |
11fps(4608*3288),16fps(4096*2160),60fps(2048*1080)
|
| Output Digi |
12 Bits
|
|
Exposure
|
Manual/Auto (Range:0.027ms~1221ms)
|
|
SNR
|
35.5dB
|
|
Dynamic Range
|
65.3dB
|
|
Sensititive (550nm)
|
0.724V/lux-sec
|
|
I/O Control
|
2 Way Input, 2 Way Output
|
| Data Interface |
USB 3.0 ,3.2Gb/s
|
| Power Supply |
USB Power Supply
|
| Max Power |
2.5W
|
|
Lens Mount
|
Standard C Mount
|
| System |
Windows All System 32/64 Bits Version |
| Software Control Function |
|
| Other Funtion |
|
| SDK |
Support VC、VB、C#、DELPHI、LABVIEW、OPENCV
|
| Weight |
35g
|

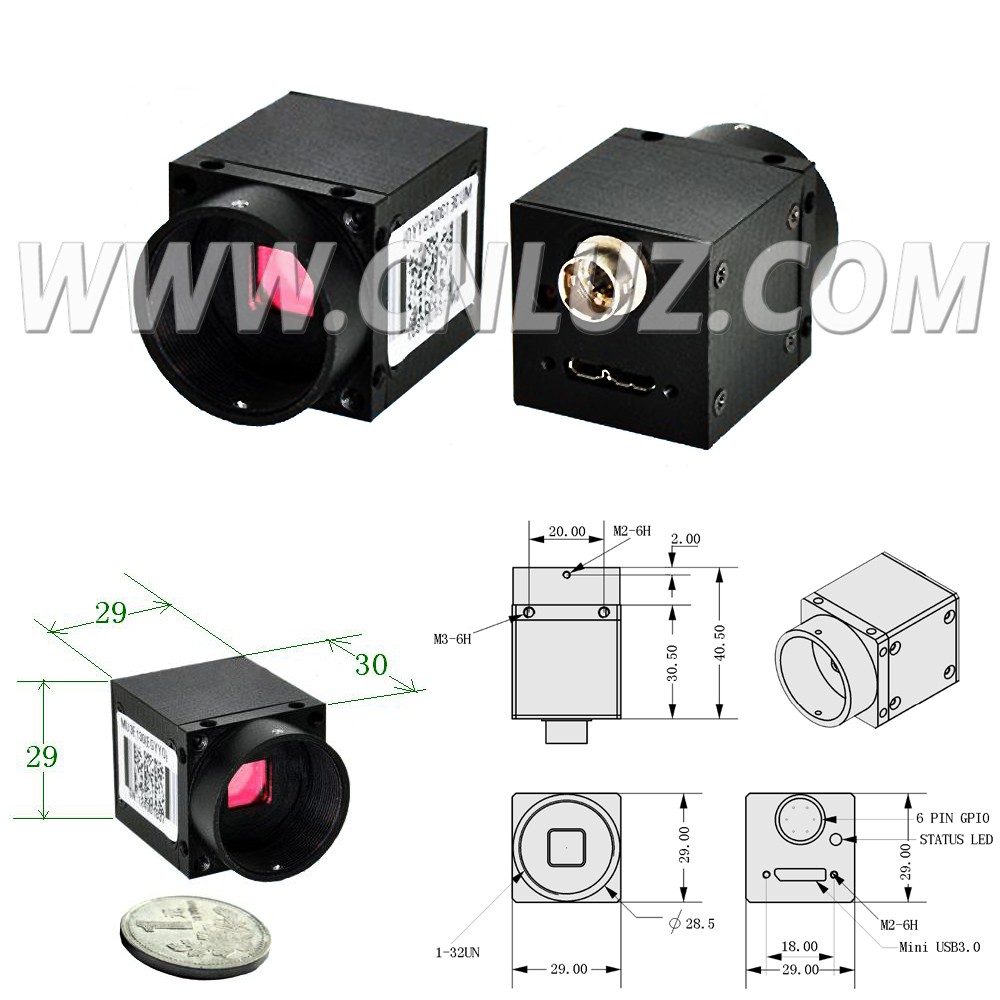

| Product Size |
51*52*60mm
|
