It is widely used in medical, microscopic system, industrial assembly line, the public security investigation, outdoor monitoring etc.
|

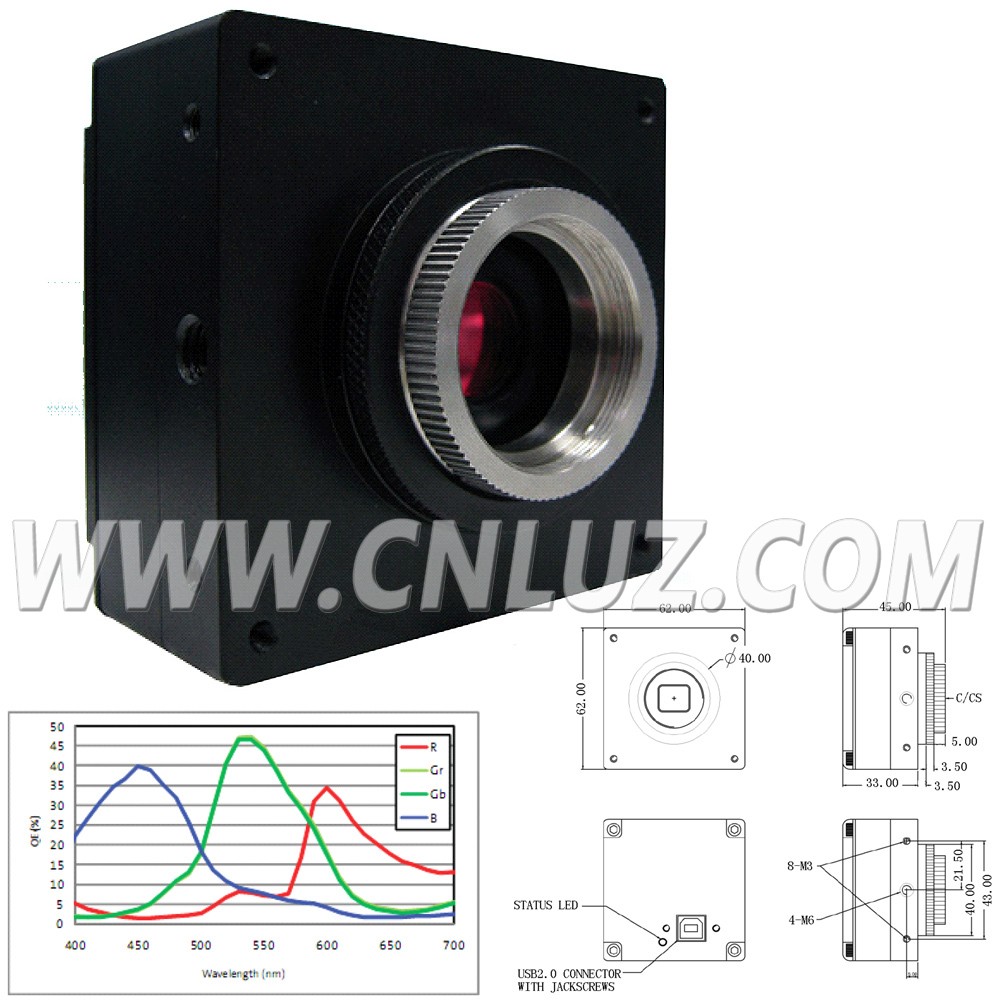

Specification
|
MAC.032002
|
|
Senser
|
1/2.3" CMOS, Color
|
|
Spectral Response |
400nm~1400nm |
|
Pixels
|
14M
|
|
Max Resolution
|
4608*3288
|
| Pixel Size |
1.4*1.4μm
|
| Max FPS |
2.5fps(4608*3288)
|
| Shutter | rolling shutter |
|
Exposure
|
Manual /Auto /Programmable
|
|
SNR
|
34dB
|
|
Dynamic Range
|
65.3dB
|
|
Sensititive (550nm)
|
0.724V/lux-sec
|
| Data Interface |
USB 2.0 ,480Mb/s
|
| Power Supply |
USB Power Supply ,500mW
|
| Max Power |
2.5W
|
|
Lens Mount
|
Standard C/CS Mount
|
| System |
Windows All System 32/64 Bits Version |
| Software Control Function |
|
| SDK | Support VC、VB、C#、DELPHI、LABVIEW、OPENCV |
| Product Size | 62*62*44mm |
| Other Configuration |
|
