Applications: assembly line piece-line detection, license plate recognition capture, microscopic image acquisition and many other fields.
|
Specification
|
MAC.031004
|
|
Senser
|
1/2" SONY Color CMOS Sensor |
|
Pixels
|
9.0M
|
|
Max Resolution
|
3488*2616 |
|
Pixel Size
|
1.75μm×1.75μm
|
|
Max FPS
|
4fps (3488*2616)
|
|
Output Digi
|
8 Bits
|
|
Exposure
|
Rolling Shutter,1/15000s～2s
|
|
SNR
|
37.4dB
|
|
Dynamic Range
|
62.7dB
|
|
Sensititive (550nm)
|
0.44V/lux-sec
|
|
I/O Control
|
3 way I/O control（2 Iutput、1 Output）
|
|
Output Data Interface
|
USB 2.0 |
|
Power Supply
|
USB Power Supply
|
|
Power
|
USB power supply,2.5W
|
|
Lens Mount
|
C、CS
|
| Programmable control | Image resolution, RGB gain, exposure time, contrast, Gamma, image flip, raw data |
|
System
|
Support Windows 2000、Windows XP、Windows, Vista、Windows7 |
|
Software
|
Support DSHOW、TWAIN, OCX, SDK, Labview; Free measurement software
|
|
Other Function
|
Auto/manual white balance, regional white balance, auto black balance, remove dead pixel function, intensity balance, user-defined hardware encryption |

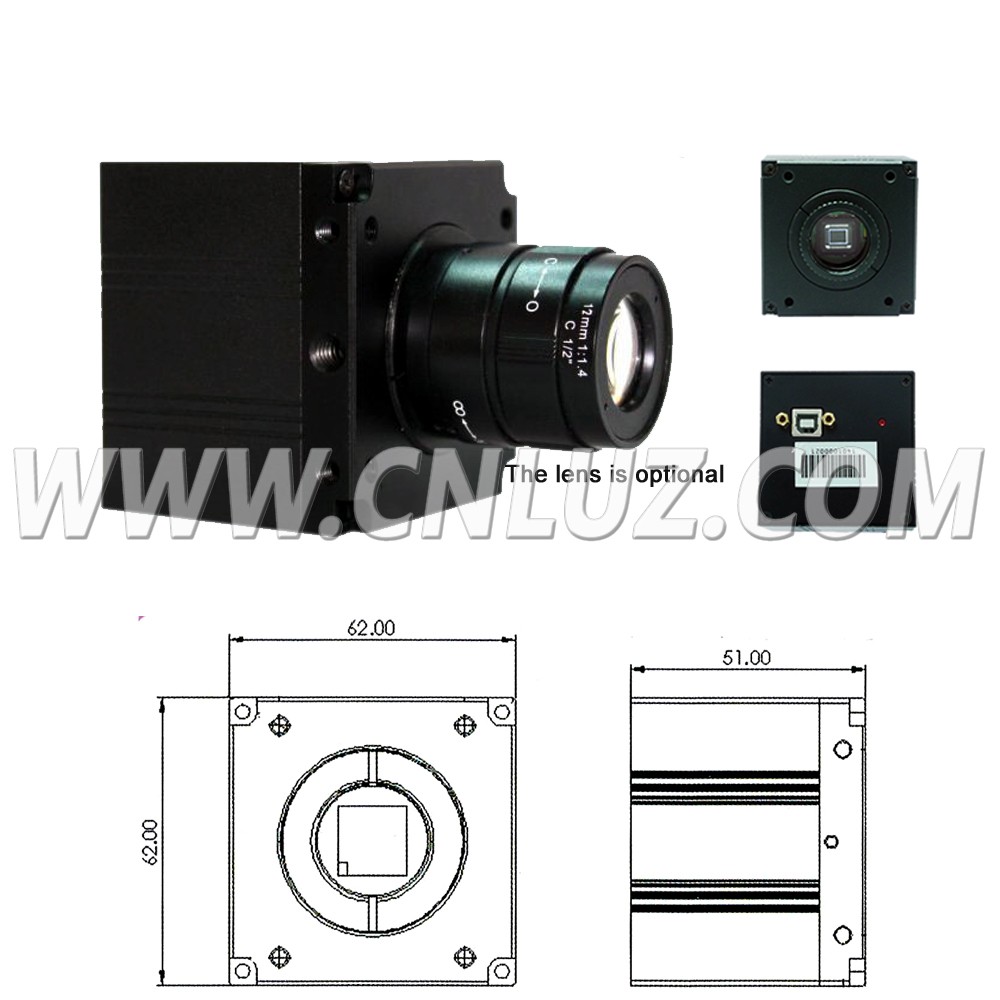

| Product Size |
62*62*57mm
|
