MAC.029011Digital Camera,5M,CMOS,USB2.0
  • /usr/575/images/Products/Y/57518345.jpg
  •
  •
  •

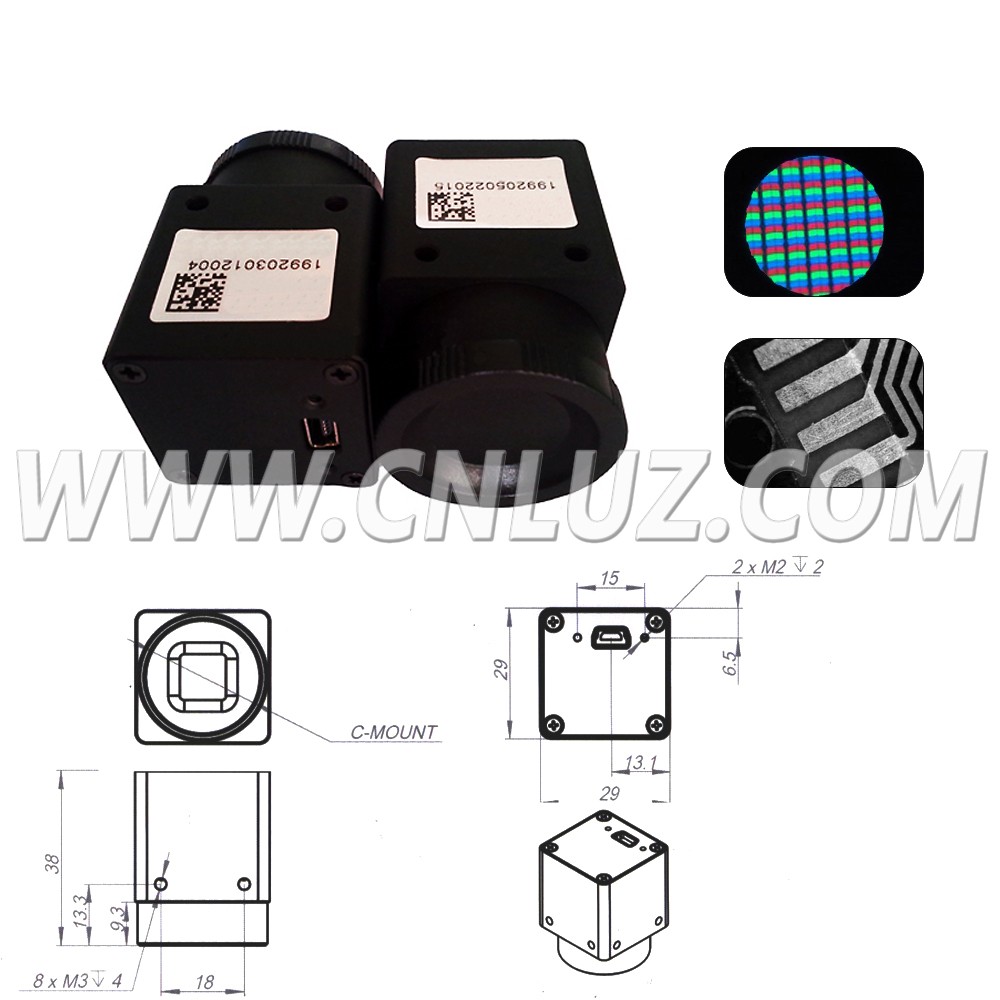

  • Compact dimensions of 29mmX29mmX38mm
  • High-quality CMOS image sensor
  • USB2.0 interface, support hot swappable, high-speed image acquisition, transmission speed is 5 times faster than USB2.0
  • Support image format:RAW,BMP,JPG
  • Support Directshow interface, can be integrated into the third party software, such as Halconlabviewmatlab etc
  • App software operation interface support conversion in both English and Chinese, can save the image adjusting parameter and a variety of formats, is authorized to use the measuring function

Specification
MAC.029011-M
MAC.029011-C
Sensor MICRON CMOS,MT9P031 MICRON CMOS,MT9P006
Color/monochrome Mono Color
Sensor Size 1/2.5"
Effective Pixels 5.0MP
Pixel Size 2.2umX2.2um
Resolution(HXV) 2592X1944
Spectrum Range 390nm-750nm
Scan Mode Progressive
Frame Rate 4.5fps (2592X1944)
Shutter Rolling shutter
Image Format RAW,BMP,JPG
S/N Ratio 40.5dB

Dynamic Range

>67dB

Sensitivity

0.51V/Lux-sec@550nm
Exposure Control Auto / Manual
Exposure Time (s) 17us-2293.7ms
White Balance Auto / Manual
Parameter
Image size、bright、gain、exposure、ROI、GAMMA、RGB
Data Interface USB2.0(480Mb/s)
USB Power Supply USB2.0
Dimension 29X29X38mm
Lens Interface C/CS-Mount
Operating System Windows XP / Windows Vista / Windows 7 (32bit/64bit)
