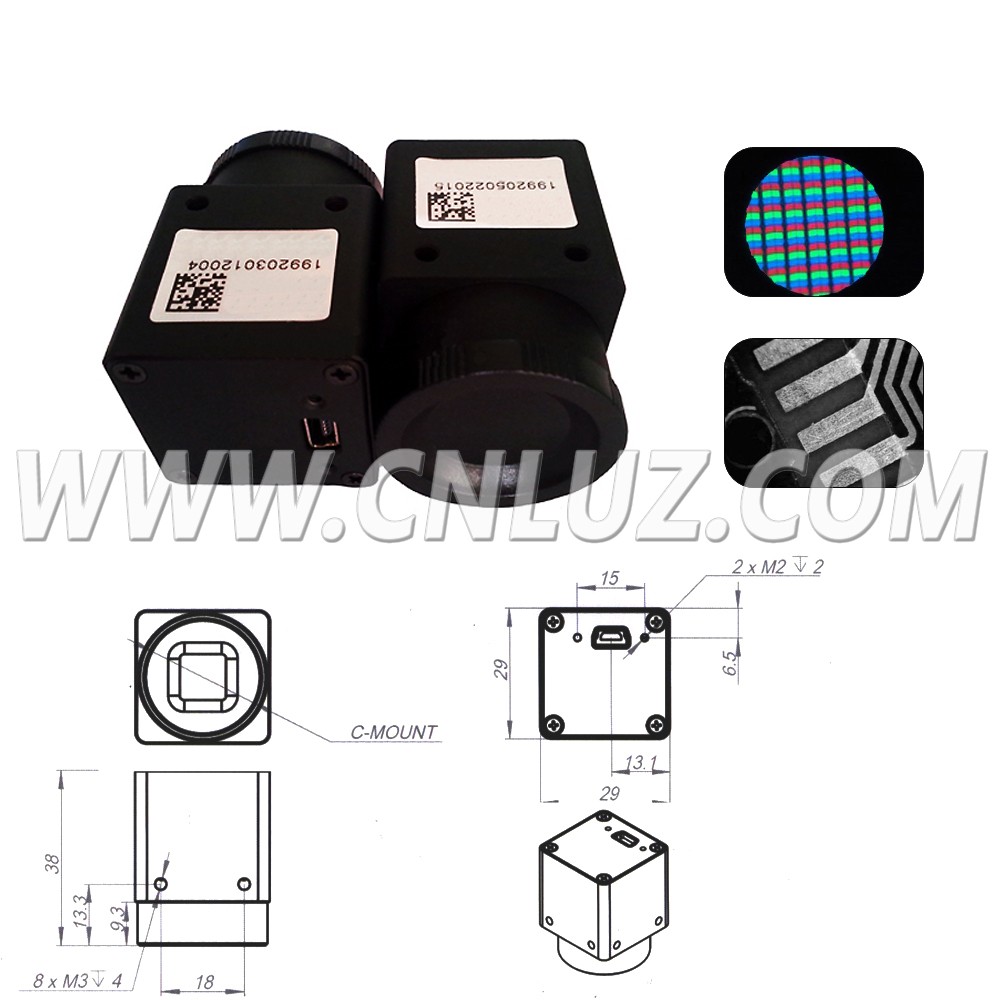

MAC.029013Digital Camera,0.36M,CMOS,USB2.0
- Compact dimensions of 29mmX29mmX38mm
- High-quality CMOS image sensor
- USB2.0 interface, support hot swappable, high-speed image acquisition, transmission speed is 5 times faster than USB2.0
- Support image format：RAW,BMP,JPG
- Support Directshow interface, can be integrated into the third party software, such as Halconlabviewmatlab etc
- App software operation interface support conversion in both English and Chinese, can save the image adjusting parameter and a variety of formats, is authorized to use the measuring function
|
|
MAC.029013-M
|
MAC.029013-C
|
| Sensor |
MICRON CMOS,MT9P031 |
MICRON CMOS,MT9V032 |
| Color/monochrome |
Mono |
Color |
| Sensor Size |
1/3" |
| Effective Pixels |
0.36MP |
| Pixel Size |
6.0umX6.0um |
| Resolution(HXV) |
752X480 |
| Spectrum Range |
400nm-1030nm |
400nm-650nm |
| Scan Mode |
Progressive |
| Frame Rate |
54fps (752X480), 62fps (640X480) |
| Shutter |
Rolling shutter |
| Image Format |
RAW,BMP,JPG |
| S/N Ratio |
48dB |
|
Dynamic Range
|
>55dB |
|
Sensitivity
|
4.8V/Lux-sec@550nm |
| Exposure Control |
Auto / Manual |
| Exposure Time (s) |
17us-2293.7ms |
| White Balance |
Auto / Manual |
|
Parameter
|
Image size、bright、gain、exposure、ROI、GAMMA、RGB |
| Data Interface |
USB2.0(480Mb/s) |
| USB Power Supply |
USB2.0 |
| Dimension |
29X29X38mm |
| Lens Interface |
C/CS-Mount |
| Operating System |
Windows XP / Windows Vista / Windows 7 (32bit/64bit) |
|
| |
