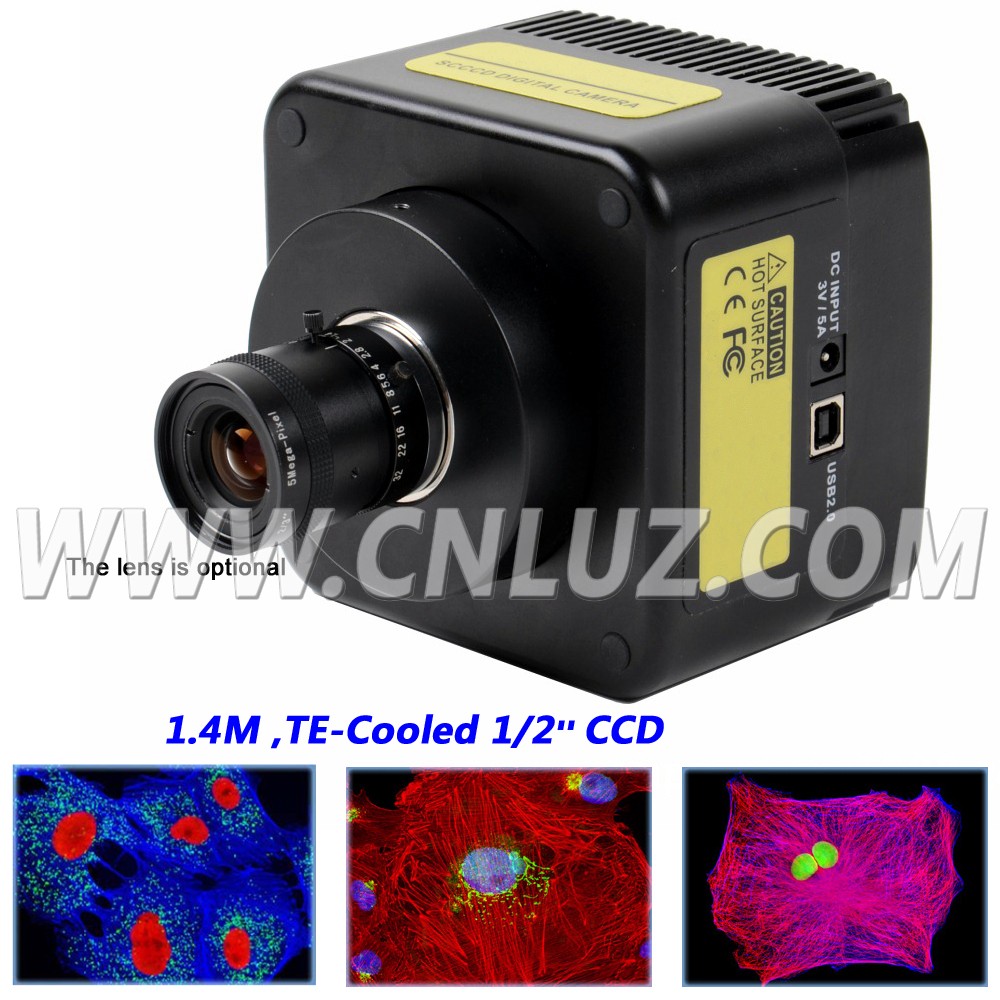

MAC.002013TE-Cooled Camera,1.4M,1/2''CCD,USB2.0
  • /usr/575/images/Products/Y/57518349.jpg
  • /usr/575/Picture/Y/11397.jpg
  • CCD camera, using ultra high sensitivity of thermoelectric refrigeration technology, can realize the high S/N Ratio and Dynamic Range, very suitable for application in scientific research
  • Using the most advanced scientific high resolution large array CCD image sensor, professional DSP processing circuit, can immediately obtain optical image signal under the microscope (Preview)
  • Professional image processing software

Image Pickup Device SONY ICX205AL CCD (Mono) SONY ICX205AK CCD (Color)
Sensor Size (Diagonal) 1/2“ (7.6mm(H) x 6.2mm(V), Diagonal 7.959mm)
Pixel Size 4.65μm x 4.65μm
Max. Resolution 1360 x 1024 (Approx. 1,400,000 Pixels)
Scan Mode Progressive
Frame Rate 15fps @1360 x 1024(Multiple Speed Level)
Spectral Range 380-650nm (with IR-filter)
A/D Converter 12-bit Parallel, 8-bit to PC 12-bit Parallel, 8-bit R.G.B to PC
Dynamic Range 70dB
SN Ratio 70dB
G Sensitivity 400mV with 1/30s Accumulation
Binning 1 x 1
Exposure 0.22ms~240s, ROI Auto & Manual
White balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Peak Quantum Efficiency 35%
Readout Noise N/A
Extinction Ratio N/A
Smear N/A
Linearity Better than 99%
Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
Recording System Still Picture and Movie
Cooling System* TE-Cooled CCD - 20 °C below Ambient Temperature
Operating System

Microsoft Windows XP / Vista / 7 / 8 (32 & 64 bit)
OS X (Mac OS X)
Linux (2.6 or above)

PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory:2GB or more
USB port:USB2.0 High-speed Port
Display:17" or larger
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH

Power Supply

DC 5V over PC USB port for Camera
External power adapter for cooling system, DC3V, 5A
