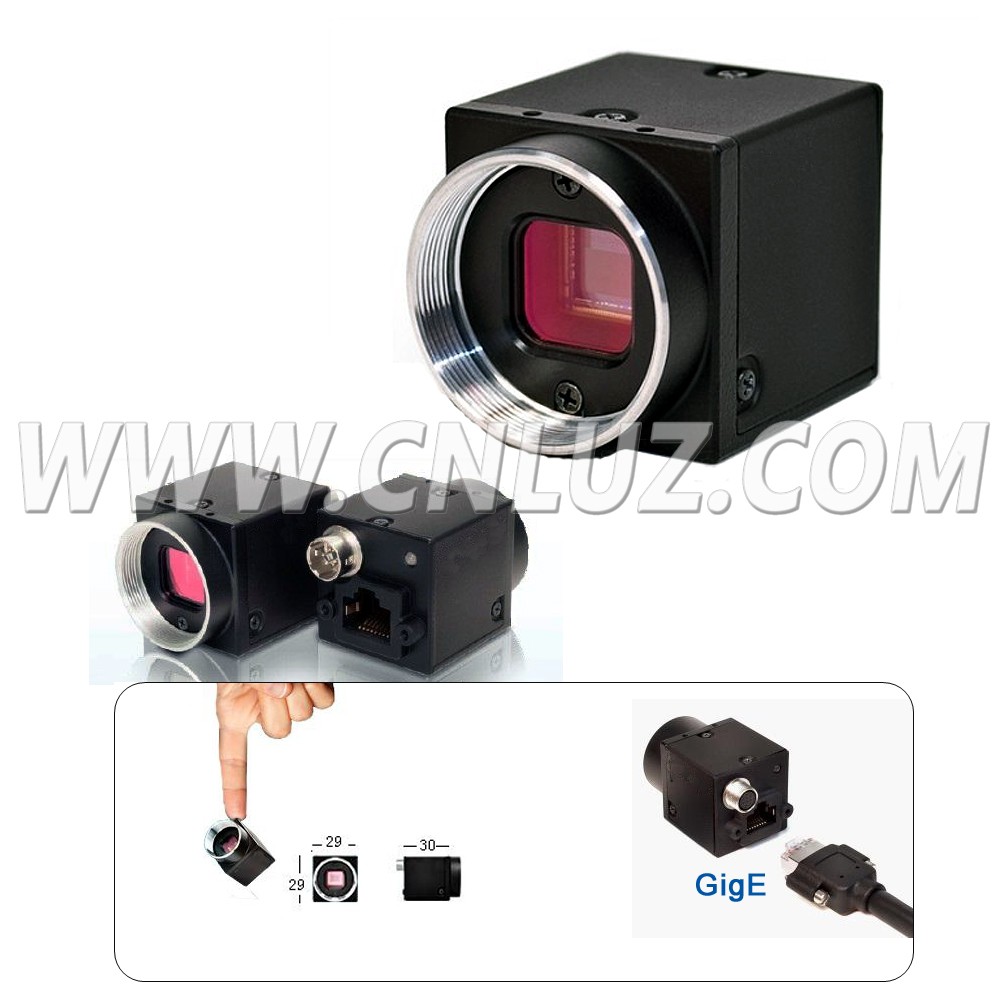

MAC.030003
|
|
Sensor
|
Sony ICX655 CCD, 2/3",Color |
|
Pixel Size
|
3.45umX3.45um |
|
Maximum Resolution
|
2448X2048 |
|
Shutter
|
Global Shu er |
|
Maximum Frame Rates
|
8fps (@2448X2048) |
|
A/D Converter
|
12bit
|
|
Video Data Output
|
8, 12, 16 and 24-bit digital data |
|
Image Data Formats
|
Y8, Y16, Mono8, Mono12, Mono16 (all models) RGB, YUV411, YUV422, YUV 444, Raw8, Raw12, Raw16 (color models) |
|
Partial Image Modes
|
Pixel binning and region of interest (ROI) modes |
|
Image Processing
|
Gamma, lookup table, hue, saturation, and sharpness |
|
Gain
|
0 dB to 24 dB, Automa c/Manual/One-Push Gain modes |
|
Gamma
|
0.50 to 4.00 |
|
White Balance
|
Automatic/Manual modes, programmable via software |
|
Color Processing
|
On-camera in YUV or RGB format, or on-PC in Raw format |
|
Digital Interface
|
Gigabit Etherneti nterface with screw locks for camera control and data |
|
Transfer Rates
|
10/100/1000 Mbit/s |
|
GPIO
|
8-pin Hirose HR25 GPIO connector for power, trigger, strobe, PWM, and serial I/O, 1 opto-isolated input, 1 opto-isolated output, 2 bi-direc onal I/O pins |
|
External Trigger Modes
|
IIDC Trigger Modes 0, 1, 3, 4, 5, 13 (FL3-GE-13S2 only), 14 and 15 |
|
Synchronization
|
Via external trigger or software trigger |
|
Image Buffer
|
32 MB frame buffer |
|
Memory Channels
|
2 memory channels for custom camera settings |
|
Flash Memory
|
1 MB |
|
Dimensions
|
29 x 29 x 30 mm excluding lens holder (metal case) |
|
Mass
|
58 g |
|
Power Consumption
|
12-24 V, <2.5 W, via GPIO |
|
Camera Specification
|
GigE Vision v1.2 |
|
Camera Control
|
Via FlyCapture SDK, CSRs, or third party software |
|
Lens Mount
|
C-mount |
|
Temperature
|
Operating: 0° to 45°C; Storage: -30° to 60°C |
|
Emissions Compliance
|
CE, FCC, RoHS |
|
Operating System
|
Vista or Windows 7
|
|
