MAC.030004
|
|
Sensor
|
Sony ICX625 CCD, 2/3",Color,progressive scan |
|
Pixel Size
|
3.45umX3.45um |
|
Maximum Resolution
|
2448X2048 |
|
Shutter
|
Global Shu er |
|
Maximum Frame Rates
|
15fps (@2448X2048) |
|
A/D Converter
|
14bit
|
|
Video Data Output
|
8, 12, 16 and 24-bit digital data |
|
Image Data Formats
|
Y8, Y16, Mono8, Mono12, Mono16 (all models) RGB, YUV411, YUV422, YUV 444, Raw8, Raw12, Raw16 (color models) |
|
Partial Image Modes
|
2x2 and 4x4 pixel binning and region of interest modes |
|
Gain
|
automatic / manual / one-push gain modes, programmable via software, -2.6dB to 24dB in 0.04dB increments |
|
White Balance
|
Automatic/Manual modes, programmable via software |
|
Digital Interface
|
Gigabit Ethernet1000 Mbit/s |
|
Partial Image Modes
|
2x2 and 4x4 pixel binning and region of interest modes |
|
GPIO
|
8-pin Hirose HR25 GPIO connector for power, trigger, strobe, PWM, and serial I/O, 1 opto-isolated input, 1 opto-isolated output, 2 bi-direc onal I/O pins |
|
External Trigger Modes
|
External hardware or software trigger
Multiple exposure, bulb shutter, multi-shot, and overlapped trigger modes |
|
Synchronization
|
Via external trigger or software trigger |
|
Image Buffer
|
32MB frame buffer, 512 KB non-volatile data flash |
|
Memory Channels
|
2 memory channels for custom camera settings |
|

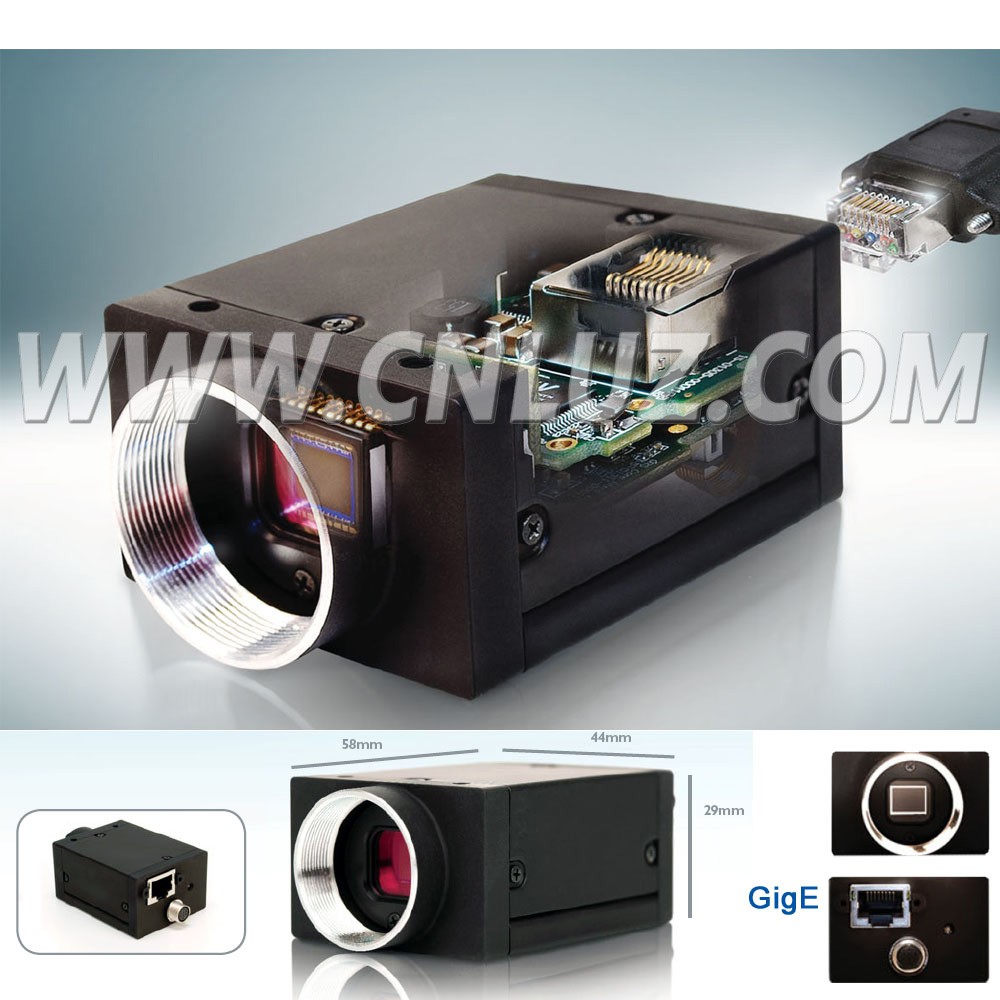

Dimensions
|
44 x 29 x 58 mm excluding lens holder (metal case) |
|
Mass
|
86 g |
|
Power Consumption
|
12-24 V, <4.7 W |
|
Camera Specification
|
GigE Vision v1.2 |
|
Camera Control
|
Via FlyCapture SDK, CSRs, or third party software |
|
Lens Mount
|
C-mount |
|
Temperature
|
Operating: 0° to 45°C; Storage: -30° to 60°C |
|
Emissions Compliance
|
CE, FCC, RoHS |
|
Operating System
|
Vista or Windows 7
|
|
| |
|
