MAC.002022Digital Camera, 1080P/720P, HDMI/USB
  • /usr/575/images/Products/Y/57519491.jpg
  • /usr/575/Picture/Y/11578.jpg
  • /usr/575/Picture/Y/11579.jpg
  •
  • The camera can be used for microscope, industrial stereo microscope, on-line inspection etc.
  • High-resolution and high frame rate, perfect color reproduction.
  • For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video etal.
  • For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software.

Major differences between each models

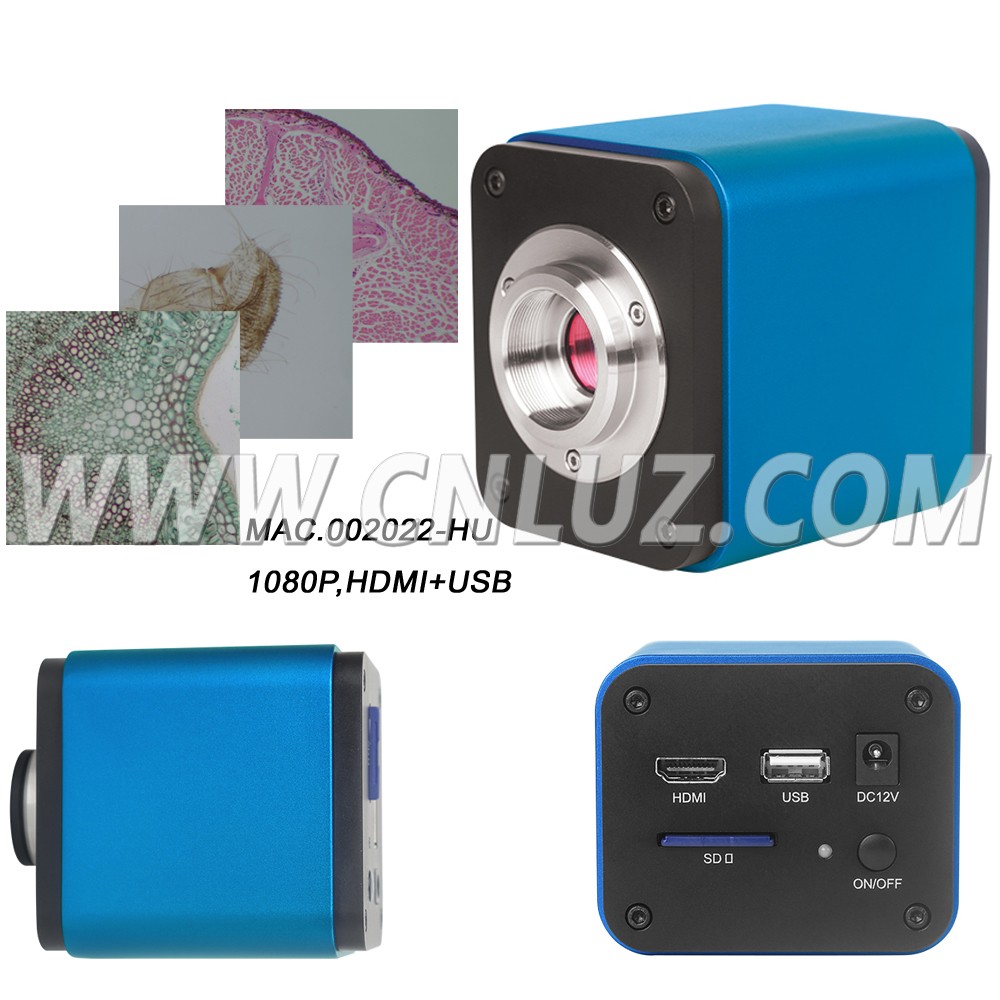

  • MAC.002022-HU: 1080P,HDMI+USB

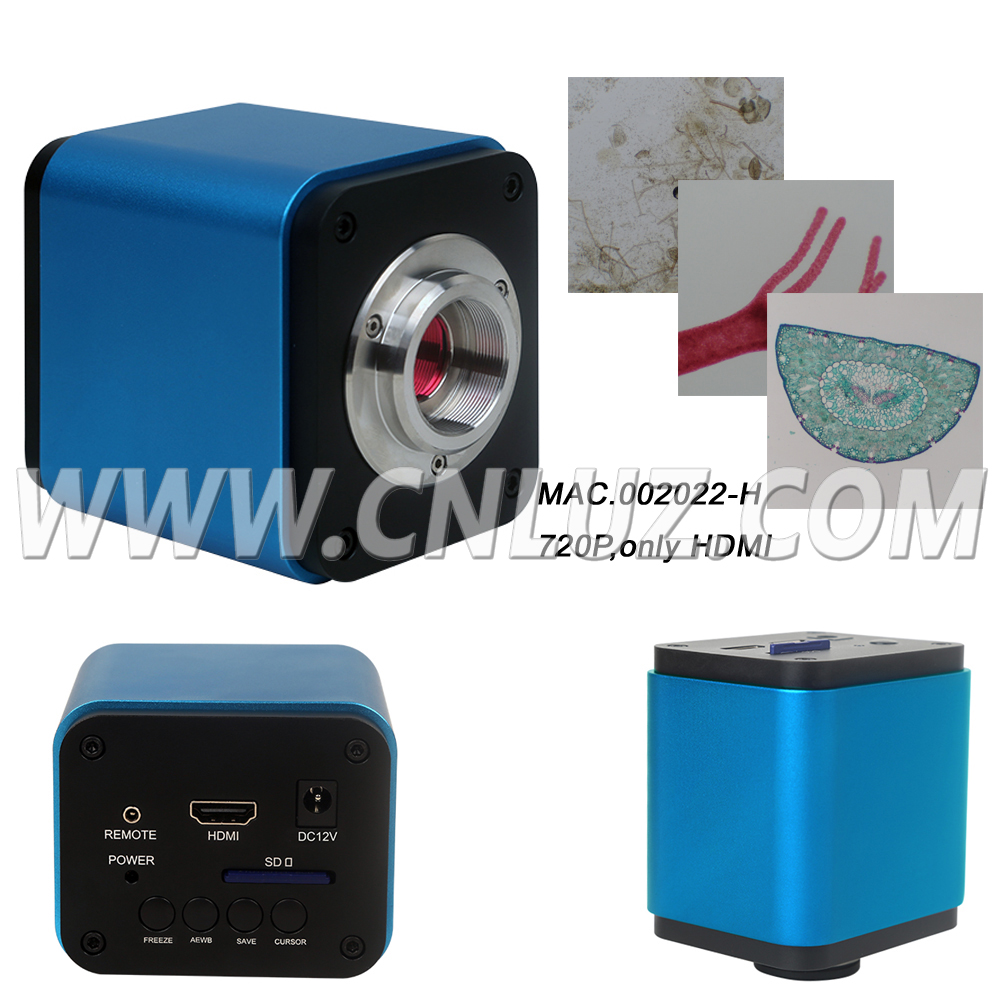

  • MAC.002022-H: 720P,only HDMI
Specification
MAC.002022-HU
MAC.002022-H
Sensor 1080P/Sony IMX236(C)
1/2.8"(5.5x3.4)
MT9P031(C)
1/2.5" (5.70x4.28)
Pixel Size
2.8μm x 2.8μm
2.2μm x 2.2μm
Resolution
1920X1080
1080X720
Sensitivity
510 mv with 1/30s
1.4 V/lux-sec
Frame Rate
60@1920X1080
30@1080X720
Exposure Range
0.4~999ms
0.21~33ms
White Balance Auto White Balance Auto / Manual
Interface HDMI, USB, SD HDMI, SD
UI Operation USB Mouse 2.5mm Headphone Jack Remote Image Save Switch
Binning 1X1
Spectral Range 380-650nm (with IR-filter)
Color Rendering Technique Ultra Fine Color Engine
Cooling System Natural
Lens Mount C-Mount
Power Supply DC 12V
Operating System Microsoft Windows XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux
Operating Temp. -10℃~ 50℃
Storage Temperature
-20~60℃
Operating Humidity
30%~80%RH
Storage Humidity
10%~60%RH
Package Box
250mmx170mmx90mm, 1.5Kg

Item

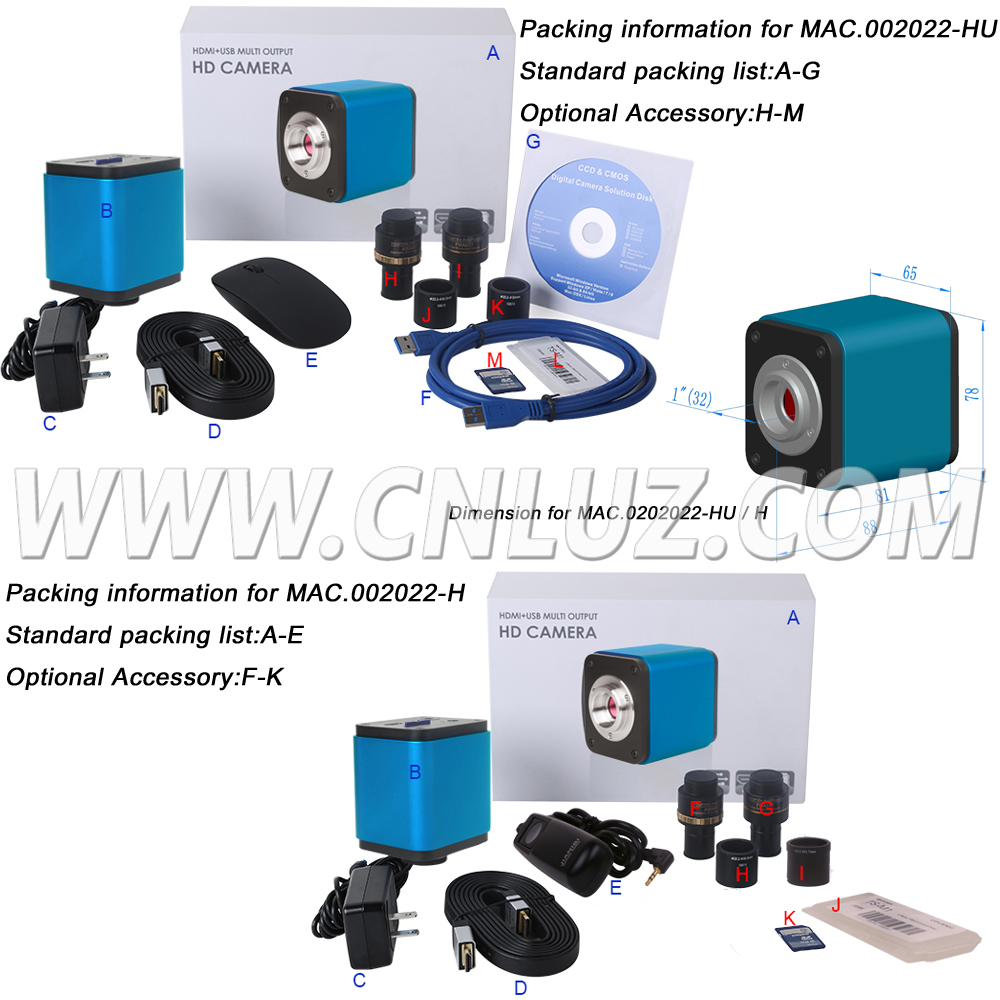

Packing Information for MAC.002022-HU
Standard Packing List
A Gift box ,250mmx170mmx90mm, 1.5Kg
B
Camera
C
Power adapter,AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
D
HDMI Cable
E
USB Mouse
F
High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G CD (Driver & utilities software, Dia 12cm)
Optional Accessory H

Adjustable lens adapter
(C-Mount to Dia.23.2mm Eyepiece Tube )
(C-Mount to Dia.31.75mm Eyepiece Tube )

I Fixed lens adapter
J Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
K Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
L Calibration Kit
M SD Card(4G or 8G)

Item
Packing Information for MAC.002022-H
Standard Packing List A Gift box ,250mmx170mmx90mm, 1.5Kg
B
Camera
C
Power adapter,AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
D
HDMI Cable
E
2.5mm Headphone Jack Remote Image Save Switch
Optional Accessory F

Adjustable lens adapter
(C-Mount to Dia.23.2mm Eyepiece Tube )
(C-Mount to Dia.31.75mm Eyepiece Tube )

G Fixed lens adapter
H Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J Calibration Kit
K SD Card(4G or 8G)
