Digital Camera
|

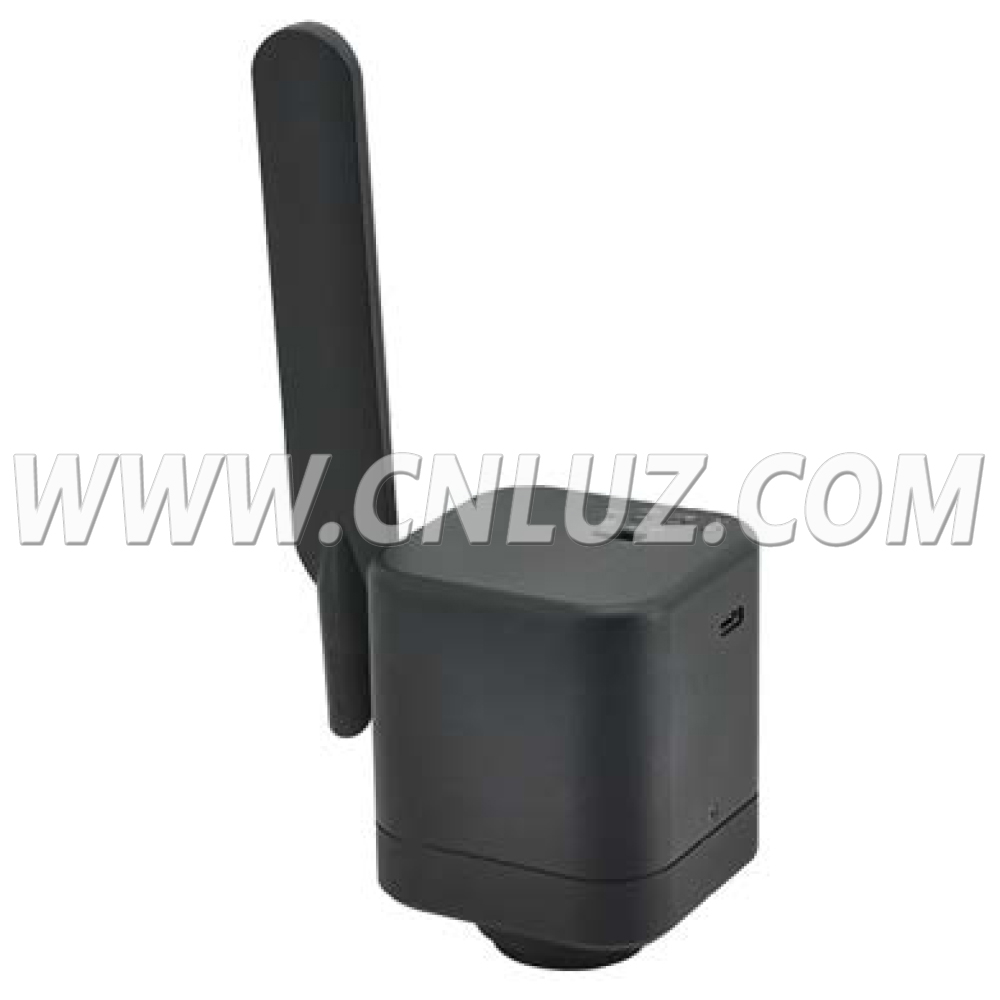

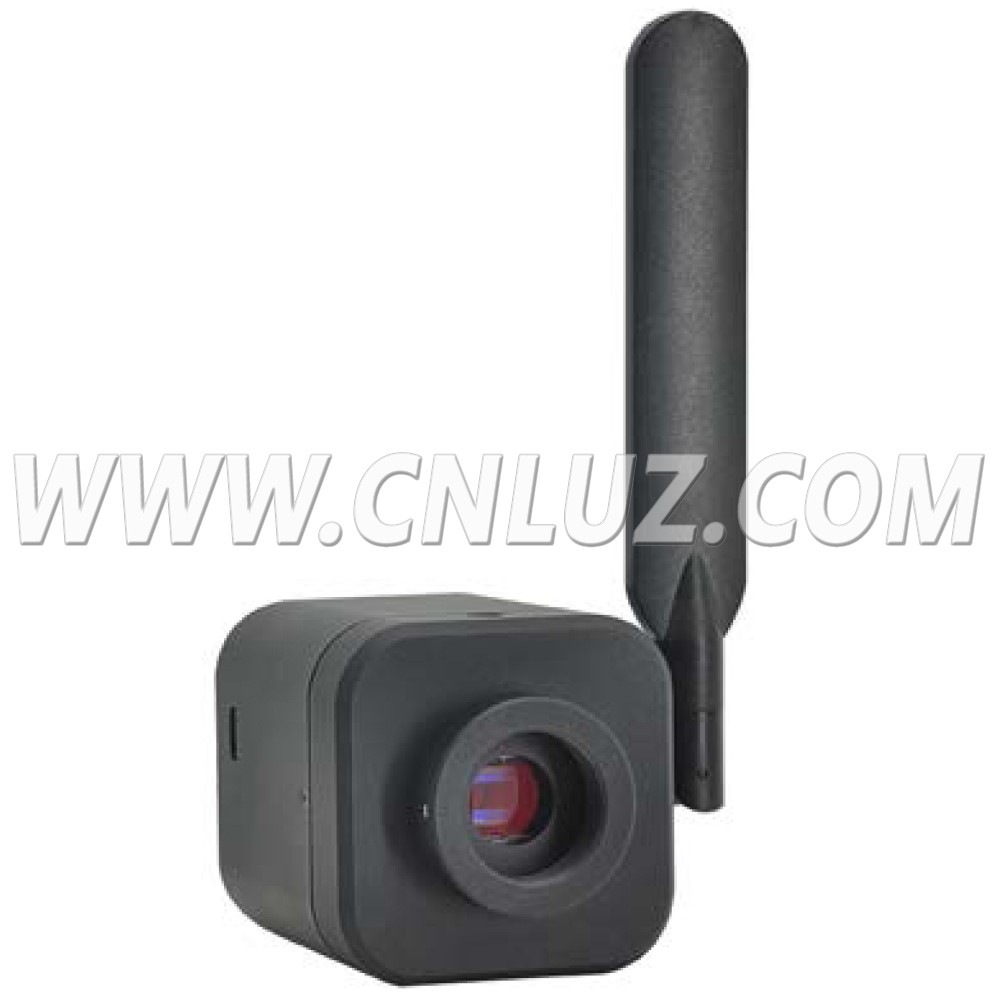

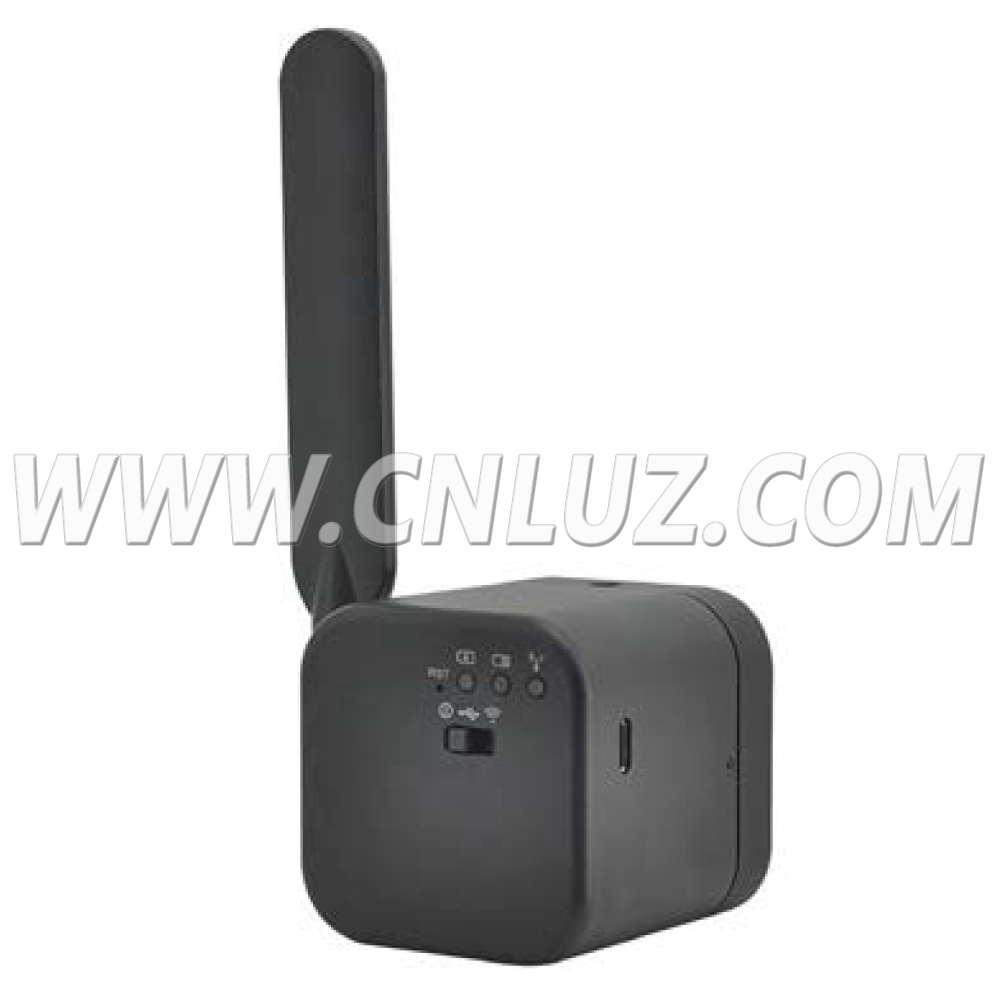

5.0M CMOS High Resolution Digital Camera
|
| Sensor |
1/2.5" CMOS, Color |
| Senser Size |
5.70mm(H) x 4.28mm(V), diagonal7.13mm |
|
Pixel Size
|
2.2x2.2μm |
| Resolution |
2592*1944 Max. |
| Spectral region |
380-650nm |
| Working Modes |
A. USB mode
B. WiFi mode |
| Frame Rate |
USB mode
30fps@2592x1944,1920x1080,1024x768,640x480
WiFi mode
30fps@2592x1944,1920x1080,1024x768,640x480 |
| SN Ratio |
40dB |
| Dynamic Range |
74.3dB linear, more than 96dB(Interleaved) |
| White Balance |
Real-time auto,Single auto,Manual adjustment |
| Exposure |
Manual/Auto, .3.9ms - 320ms |
| Observe methods |
Still picture and video in real time
Snapshot
Picture format:JPG,BMP,PNGTIFT,PDF
Resolution:2592x1944,1920x1080,1024x768,640x480
Record
Video format:MJPG format AVI file
Resolution:1920x1080,1024x768,640x480 |
Wireless
parameters |
Wireless protocol: IEEE 802.11ac
Operating frequency range:5.180--5.825GHz |
| Windows System Demand |
Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 /(32 & 64 bit)
CPU: i7 eight generation quad core or higher
Memory:8GB or above
Hard disk: at least 50GB free space
GPU:standalone graphics card (NVIDIA GPU)
Wireless network card: must support IEEE 802.11ac |
| iOS System Demand |
iOS 11.0 or higher
Iphone:Iphone 6 or higher
Ipad:Ipad pro,Ipad air 2,Ipad mini 4 and other new devices that must support the 5G WiFi(11ac) protocol |
| Android System Demand |
Android 5.0 or higher
CPU: Dual-core 1.7Ghz or higher
Memory:3GB or above
Storage ROM: at least 8GB
Support the 5G WiFi(11ac) protocol |
| Battery |
Built-in lithium battery |
| Power consumption |
Wired:USB 2.0 DC5V 500mA
Wireless:USB 2.0 DC5V 1500mA |
| Connecting |
C-Mount |
