MAC.026004 HIMI and USB Dual Output Digital Camera is with high quality image and video performance to meet high-precision requirements on scientific research, inspection lines in modern electronics and other technology industries
|
Specification
|

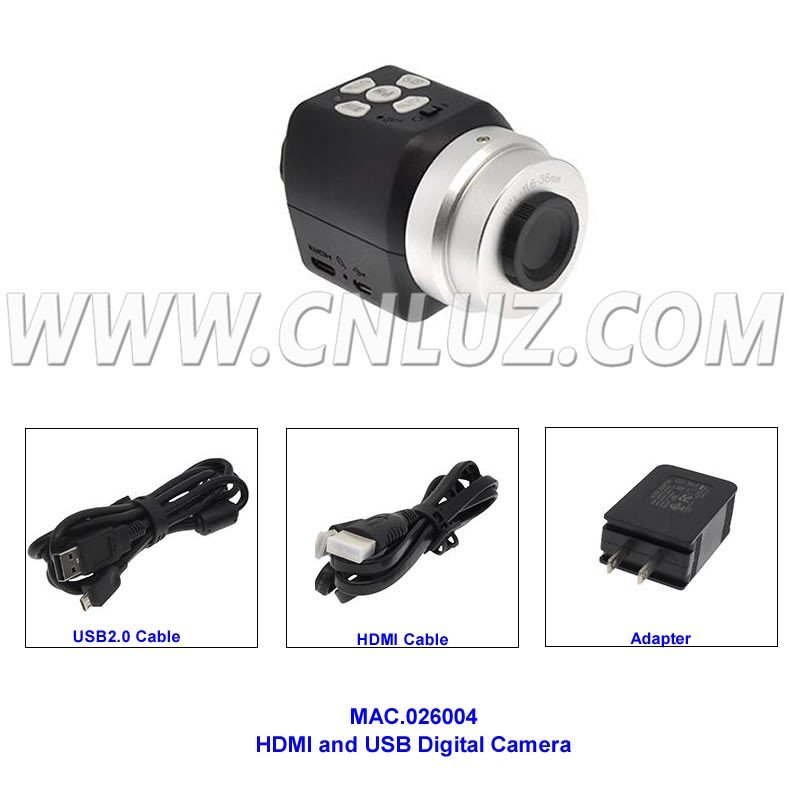

MAC.026004 HDMI and USB Digital Camera
|
| Sensor | APtina Ar0990 CMOS Sensor |
| Senser Size | 1/3" (5.07mm(H) x 3.38mm(V), 6.09mm |
|
Pixel Size
|
2.2μm x 2.2μm |
| Resolution | 2592 x 1536 |

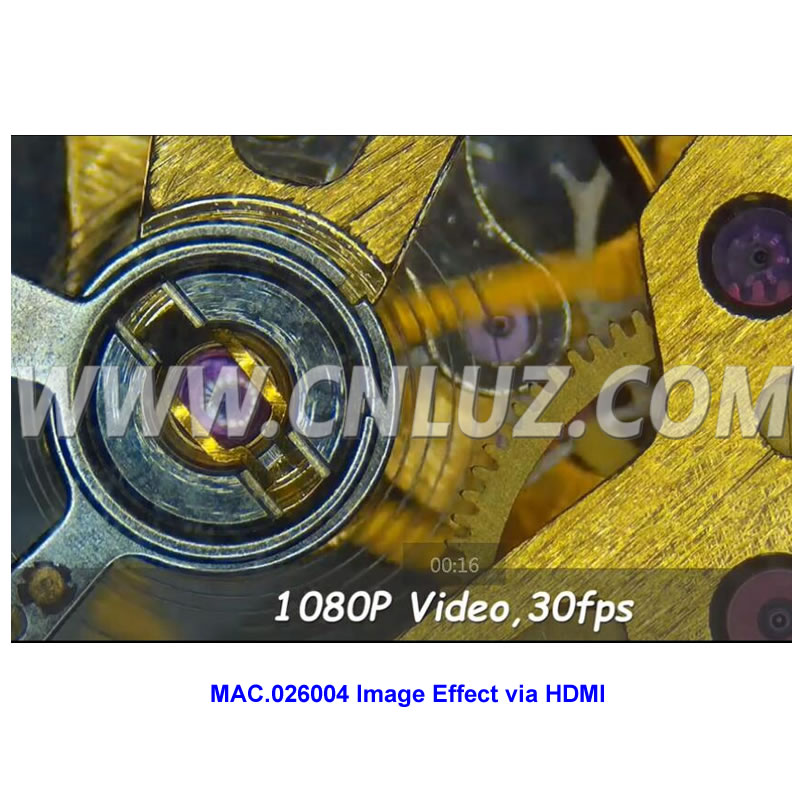

| Video Mode Resolution | 1080P@30fps, 720P@30fps, WVGA30fps |
| Capture Mode Resolution | 2304 x 1536 ; 2304 x 1296; 1920x1080; 1280x720; 800x480 |
| Focus Mode | Real-time Auto-focus |
| White Balance | Automatic Real-time, Single-automatic, Manual adjustment |
| SN Ratio | 39dB |
| Dynamic Range | 69.5dB |
| Spectral Response | 380-650nm |
| Exposure | Wide Range Auto/manual Exposure |
| Power supply | DC 5V USB power supply by PC |
| Operating System | Microsoft; Windows; XP / 7 / 8 /8.1/10(32 & 64 bit) |
| Hardware Requiremen | CPU: Intel Core 2.8GHZ or Above |
| Memory: 2GB or Above | |
| USB Port: 2.0 | |
| DVD-ROM(Required When Installing Software) | |
| Connecting | C-mount (1" x 1/32) BFL:11.6-36mm |
| HDMI : TYPEC(Mini HDMI) | |
| USB: Micro USB | |
| Product Size | Dia. 59mm * Height 63mm * Lenth 101mm |
| Single Packing Size | 11cm*15cm*63*cm |
