Model
|

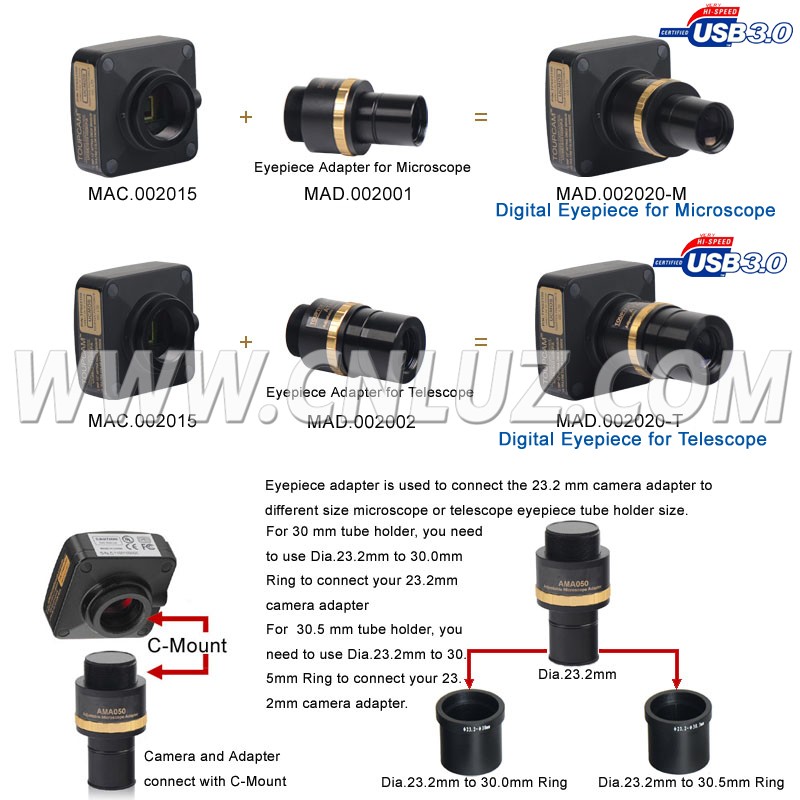

MAD.002020-M Digital Eyepiece for Microscope,USB3.0
|
||||
|
MAD.002020-T Digital Eyepiece for Telescope,USB3.0
|
|||||
|
Pixel
|
3.1M
|
5.0M
|
8.0M
|
10M
|
14M
|
|
Max Resolution
|
2048x1536
|
2560x1992
|
3328x2548
|
3584x2748
|
4096x3288
|
|
CMOS Sensor Type
(Color ) |
Aptina AR0330
|
AptinaMT9P006
|
Aptina Special
|
Aptina MT9J003
|
Aptina MT9F002
|
|
Pixel Size
|
2.2um x2.2um
|
2.2um x2.2um
|
1.67um x1.67um
|
1.67um x1.67um
|
1.4um x1.4um
|
|
CMOS Sensor
|
1/3"
|
1/2.5"
|
1/2.3"
|
1/2.2"
|
1/2.3"
|
|
Sensor Size (mm)
|
4.80(H) x 3.60(V), Diagonal 6.0
|
5.70(H) x 4.28(V), Diagonal 7.13
|
6.44(H) x 4.616(V), Diagonal 7.923
|
6.119(H) x 4.589(V), Diagonal 7.649
|
6.138(H) x 4.603(V), Diagonal 7.672
|
|
Sensitivity
|
2.0v/lux-sec(550nm)
|
0.76v/lux-sec(550nm)
|
0.31v/lux-sec(550nm)
|
0.31v/lux-sec(550nm)
|
0.724v/lux-sec(550nm)
|
|
DynamicRange
|
72.4dB
|
67.74dB
|
71dB
|
61dB
|
66.5dB
|
|
SN Ratio
|
39dB
|
38.5dB
|
34dB
|
34dB
|
35.5dB
|
|
Frame Rate
|
2048*1534/27.4fps
1024*770/53.3fps (Multiple Speed Level) |
2560*1922/ 14.5fps |
3584*2746/8.3fps
1664*1272/27fps (Multiple Speed Level) |
35844*2746/7.2fps
1972*1372/ 25fps (Multiple Speed Level) |
4096*3286/6.2fps
2048*1644/21fps 1024*822/54fps |
|
Binning
|
1x1;2x2
|
1x1;2x2;4x4
|
1x1;2x2
|
1x1;2x2;3x3
|
1x1;2x2;4x4
|
|
Exposure
(ROI Auto & Manual ) |
0.1~2000ms
|
0.05~2000ms
|
0.1~2000ms
|
0.38~2000ms
|
0.4~2000ms
|
|
Binning
|
1*1, 2*2
|
1*1, 2*2, 4*4
|
1*1, 2*2
|
1*1, 2*2, 4*4
|
/
|
|
A/D Conveter
|
12-bit Parallel, 8-Bit R.G.B to PC
|
||||
|
Output
|
USB 3.0,support No driver required.
|
||||
|
Scan Mode
|
Progressive
|
||||
|
Spectral Range
|
380-650nm (with IR-Filter)
|
||||
|
White balance
|
ROI White Balance/ Manual Temp-Tint Adjustment
|
||||
|
Color Rendering Technique
|
Ultra Fine Color Engine
|
||||
|
Peak Quantum Efficiency
|
N/A
|
||||
|
Readout Noise
|
N/A
|
||||
|
Extinction Ratio
|
N/A
|
||||
|
Smear
|
N/A
|
||||
|
Capture/Control API
|
Native C/C++, C#, Directshow, Twain, Labview
|
||||
|
Recording System
|
Still Picture and Movie
|
||||
|
Cooling System
|
Natural
|
||||
|
Operating Temperature
|
-10~50℃
|
||||
|
Storage Temperature
|
-20℃~ 60℃
|
||||
|
Operating Humidity
|
30%~80%RH
|
||||
|
Storage Humidity
|
10~60%RH
|
||||
|
Power Supply
|
DC 5V from PC USB port
|
||||
|
Operating System
|
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
OS X (Mac OS X), Linux |
||||
|
PC Requirements
|
|
||||
