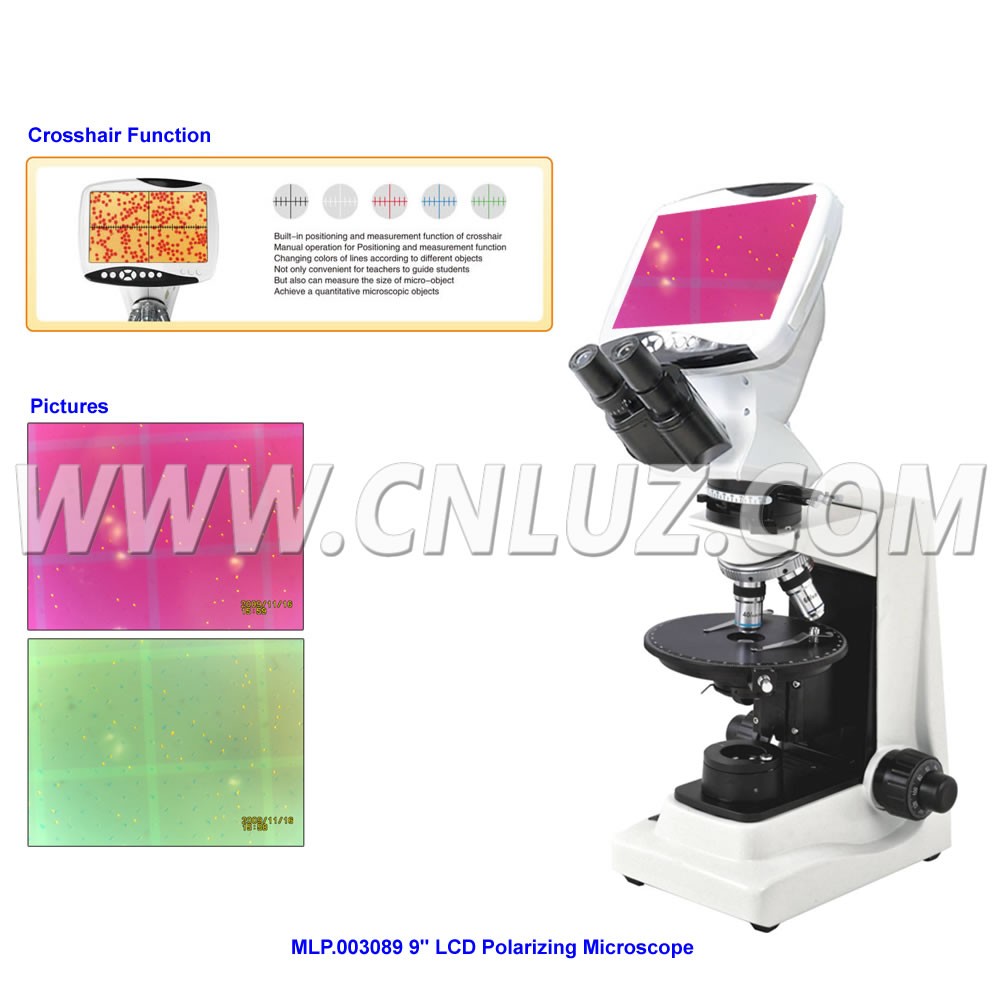

Polarizing LCD Microscope, 9"LCD, 5M CMOS, HDMI, 40X~600X

MLP.003089Polarizing LCD Microscope, 9"LCD, 5M CMOS, HDMI, 40X~600X

Specification	MLP.003089 9" 5.0M LCD Polaringz Microscope
Head	Sedentopf Binocular Head, 30° Inclined
Eyepiece	WF10x/18mm
Objective	Strain Free Achromatic Objective 4x
	Strain Free Achromatic Objective 10x
	Strain Free Achromatic Objective 40x
	Strain Free Achromatic Objective 60x
Nosepiece	Backward Quadruple Nosepiece, Center Adjustable
Focusing	Coaxial Coarse & Fine Adjustment, Focusing Range 28mm, Fine Focusing Division 0.002mm
Analyzer	Rotatable Analyzer With Graduation 0~90° Bertrand Lens, Sliding In/Out Of Optical Path Optical Compensator : 1) λ Slip, First Class Red 2) 1/4λ Slip 3) Quartz Wedge
Polarizer	Swing-Out Polarizer 0~90° Rotatable, Located On Top Of Collector
Stage	Round Stage Dia.160mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', Center Adjustable
Condenser	Abbe Condenser N.A.1.25, WIth Iris Diaphragm & Filter
Illumination	Halogen Lamp 6V20W, Brightness Adjustable

Digital System	LCD Screen	9 HD Inches, Resolution is 1280*800
	Image Sensor	5.0 Mega
	Photo Resolution	2560X1920
	Video Resolution	1280X720/30FPS
	Data Output	HDMI
	Storage	4G Card
	Date Mode	Year, Month, Day, Hour, Minute
	Measurement&Positioning	Crosshair and Arrow (Black,White,Red,Green,Blue)
	Language	Nine Languages (English,Germany,French,Spanish,Russia, Janpanese,Korean,Latin,Arabic)
	Coordinate Colors	Black/White/Red/Blue/Green
